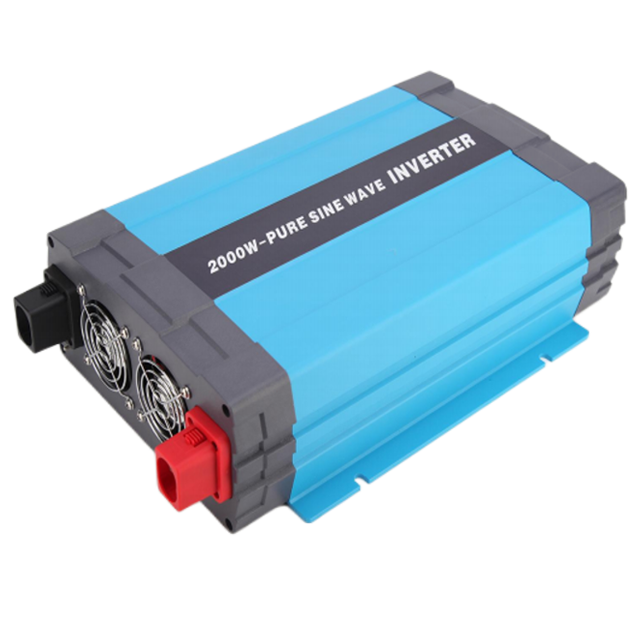

A pure sine wave inverter converts direct current (DC) to alternating current (AC) using internal power electronic devices such as IGBTs and MOSFETs. The key lies in how to generate an AC output that is close to an ideal sine wave. The specific steps are as follows:
DC Input: The inverter receives DC from a battery or other DC power sources.
DC Boost: The input DC voltage is increased to the required level through a boosting circuit to ensure the stability of the output voltage.
Pulse Width Modulation (PWM): Pulse Width Modulation technology is used to generate a waveform that approximates a sine wave. PWM technology controls the duty cycle of the output voltage through high-speed switching devices, making the final output voltage waveform close to a sine wave.
Filtering: A filter is used to further smooth the output voltage waveform, eliminate high-frequency harmonic components, and ensure that the output voltage is a high-quality sine wave.
AC Output: After the above processing, the inverter outputs an AC that is close to an ideal sine wave for the load to use.
Main Categories: Medium and High Voltage Switchgear/Low Voltage Electrical Components/Renewable Energy and EV Charging/Electrical Testing and Metering/Lighting and Monitoring Equipment/Power Generation and Backup Systems/Power and Distribution Transformers/Instrument Transformers and Sensors/Transformer and Switchgear Parts/Construction Equipment and Tools/Electrical Manufacturing and Factory Automation/Lightning Protection and Electrical Insulation/Electrical Safety Equipment/Substations and E-Houses/Power Electronic Equipment/Electrical Panel and Controlgear/Power Quality Equipment
$978.00
Pricing calculator

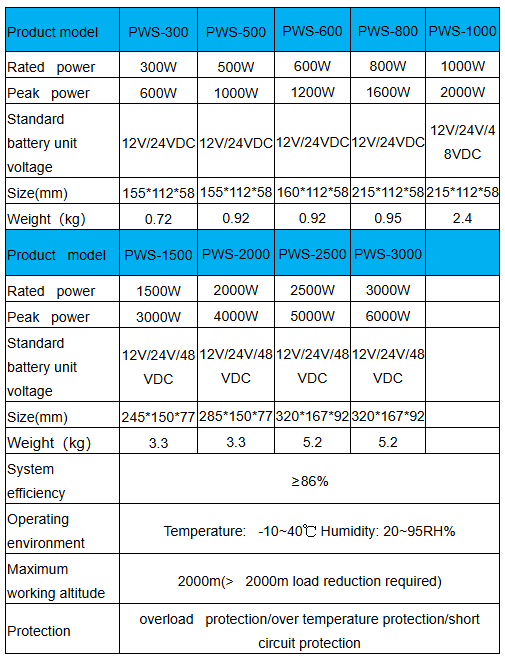

Model
PWS-3000
PWS-2500
PWS-2000
PWS-1500
PWS-1000
PWS-800
PWS-600
PWS-500
PWS-300
