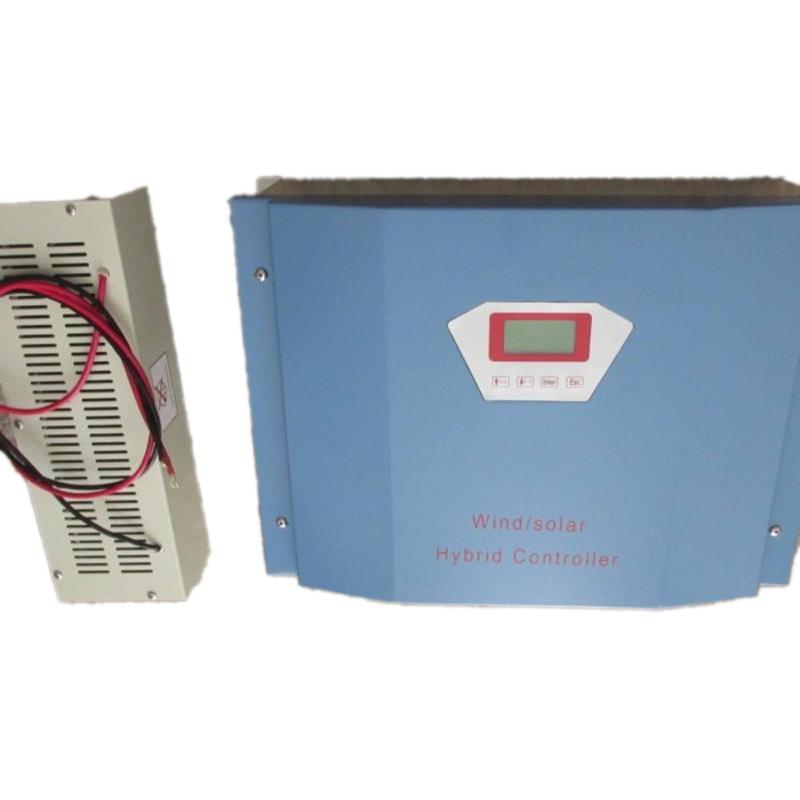

2KW Wind&solar Hybrid Controller
Key attributes
| Brand | Wone Store |
| Model NO. | 2KW Wind&solar Hybrid Controller |
| Input Voltage | DC120V |
| Power | 2kW |
| Series | WWS-20 |
Product descriptions from the supplier
The wind/solar hybrid controller is control device which can control wind turbine and solar panel at the same time and transform wind and solar energy into electricity then store to the battery bank. Wind/solar hybrid controller is the most important part in off-grid system, whose performance has much effect on life expectancy and operation of the whole system, especially the battery expectancy. Life span of battery will be shortened by over charge or over discharge in any case.
Features
Can be applied to wind&solar hybrid off-grid system
Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.
RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth connection)
Applications
Independent wind power plant
Independent household wind power generation system
Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.
Technical Parameters
Model |
WWS20-120 |
WWS20-48 |
Wind Turbine Input |
||
Rated input power |
2kW |
|
Rated input voltage |
120VDC |
48VDC |
Input voltage range |
0~160VDC |
0~64VDC |
Rated input current |
17A |
42A |
Brake by hand |
Keep press the button for 5s to unload completely, and then recover by hand. |
|
Switch"ON" the brake switch |
||
Brake by over current |
17A (factory default, 0~17A settable) unload completely when reached the set current, and recover automatically after working 10mins. |
42A (factory default, 0~42A settable) unload completely when reached the set current, and recover automatically after working 10mins. |
Brake by overvoltage |
Refer to "output overvoltage" control |
|
Brake by over wind speed (optional) |
18m/s (0-30m/s settable), unload completely when reached the set wind speed, and recover automatically after working 10mins. |
|
Brake by over rotational Speed (optional) |
500r/min (factory default,0~1000r/min settable)Unload completely when reached the set rotational speed, and recover automatically after working 10mins. |
|
PV Input |
||
Rated input power |
600W |
|
Max. Open circuit voltage |
240VDC |
96VDC |
Rated input current |
5A |
13A |
Reversed connection protection |
YES |
YES |
Charge Parameters |
||
Rated battery voltage |
120VDC |
48VDC |
Temperature compensation function (optional) |
-3mV/℃/2V |
|
Output Parameters |
||
Rated output voltage |
120VDC |
48VDC |
Output overvoltage point |
145VDC |
58VDC |
output overvoltage recovery point |
it will recover automatically once it is lower than output overvoltage point. |
|
Max. Output current |
17A |
42A |
General Parameters |
||
Rectifier mode |
Uncontrolled rectifier |
|
Display mode |
LCD |
|
Display information |
DC output voltage, wind voltage/current/power, battery voltage, PV voltage/current/power. |
|
Monitoring mode (optional) |
RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee |
|
Monitoring Contents |
DC output voltage, wind voltage/current/power, battery voltage, PV voltage/current/power. |
|
parameter setting: output overvoltage point, wind overcurrent point and manual brake |
||
Lightning protection |
YES |
|
Conversion efficiency |
＜95% |
|
Static loss |
＜2W |
＜1W |
Ambient temperature |
-20℃～+40℃ |
|
Humidity |
0~90%, No condensing |
|
Noise |
≤65dB |
|
Cooling mode |
Natural cooling |
|
Installation mode |
Wall-mounted |
|
Cover protection class |
IP20 |
|
Product dimension (W*H*D) |
420x440x175 mm |
|
Product net weight |
11.5kG |
|
