Why Use Solid-State Transformers in Smart Grids?

Solid-State Transformers (SST): The Future of Smart Power Conversion

Solid-state transformers (SSTs), also known as smart transformers, Power Electronic Transformers (PETs), or Electronic Power Transformers (EPTs), represent a transformative advancement in electrical power systems. Unlike conventional transformers, SSTs leverage power electronic converters, high-frequency magnetic components, and intelligent control systems to deliver not only voltage transformation but also advanced grid management capabilities.

Equipped with bidirectional power flow, reactive power compensation, harmonic suppression, and seamless AC/DC interoperability, SSTs are redefining the role of traditional transformers across diverse applications—from distributed energy resources (DERs) and microgrids to traction systems, industrial power networks, and next-generation smart grids.

While their primary application lies in integrating renewable generation, SSTs go far beyond simple voltage conversion. They enable smooth transitions between AC and DC domains, support stable power delivery under fluctuating grid conditions, and serve as key enablers for modern energy infrastructure.

Operating Principle of Solid-State Transformers

The core operation of an SST involves multiple stages of power conversion:

• AC-to-High-Frequency AC Conversion:
  The input power-frequency AC (e.g., 50/60 Hz) is first converted into a high-frequency square wave using a power electronic converter (typically based on IGBTs or SiC MOSFETs).

• High-Frequency Isolation and Voltage Transformation:
  This high-frequency signal is then fed into a compact, high-frequency isolation transformer—significantly smaller and lighter than its low-frequency counterpart due to reduced core size at higher frequencies.

• High-Frequency AC-to-Output Conversion:
  On the secondary side, another power electronic stage converts the signal back to standard frequency AC, regulated DC, or hybrid outputs, depending on load requirements.

This entire process is precisely controlled by a digital controller that modulates switching devices to maintain output stability, optimize efficiency, and respond dynamically to load and grid changes.

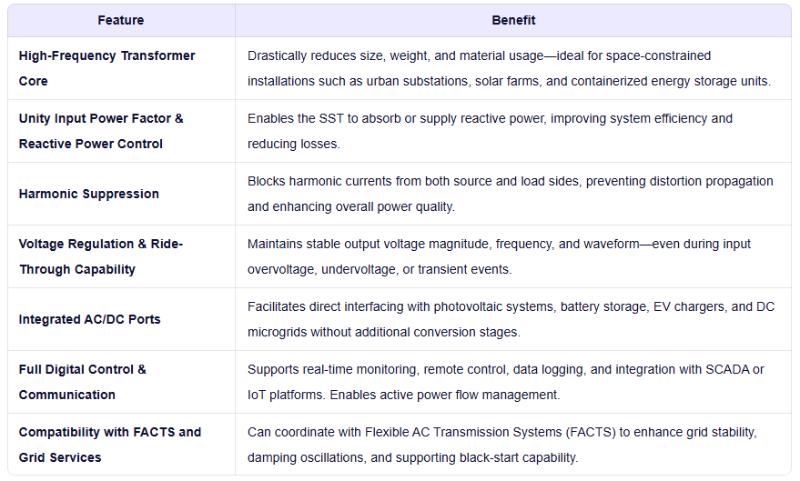

Key Advantages Over Traditional Transformers

Applications and Deployment Benefits

Due to their compact footprint and modular design, SSTs simplify logistics and installation compared to bulky conventional transformers. There's no need for extensive site preparation or heavy lifting equipment—making them ideal for rapid deployment in:

• Distributed solar and wind generation

• Electric vehicle fast-charging stations

• Data centers with hybrid AC/DC architectures

• Railway traction systems

• Industrial facilities requiring clean, flexible power

Moreover, the fast switching speed of semiconductor devices allows utilities to deploy multiple SST units for granular control over power quality, load balancing, and fault isolation—enabling more resilient and adaptive grid operations.

Conclusion: Enabling the Smart Grid Era

Solid-state transformers are not just replacements for legacy equipment—they are intelligent nodes in a dynamic, responsive power network. By combining power electronics, digital control, and galvanic isolation, SSTs offer unprecedented flexibility, efficiency, and functionality.

As the energy landscape shifts toward decentralization, electrification, and digitalization, solid-state transformers will play a pivotal role in building smarter, greener, and more reliable power systems—capable of meeting today’s complex demands and tomorrow’s innovations.
