Industry Analysis: Medium-Voltage Automatic Reclosers — The 0.5A–16,000A Full-Range Protection Capability That Redefines

1. What Makes a Recloser Truly World-Class? Starting from the "0.5A–16,000A" Range Ratio

The global pole-mounted automatic recloser market is undergoing a paradigm shift from "protective switches" to "intelligent distribution nodes." With distributed energy resources connecting to distribution grids at scale, bidirectional power flow and high-impedance fault detection demands are becoming increasingly prominent. Grid operators now impose stringent requirements on a recloser's ability to precisely measure and protect across the entire primary current range.

What makes a recloser truly world-class? The answer lies in: whether it can maintain linear accuracy and reliable protection across an extreme range spanning tens of thousands of times — from a mere 0.5A of weak ground fault current to 16,000A of short-circuit interrupting current.

The Rockwill RCW Series automatic recloser is designed precisely from this starting point: as standard configuration, it achieves stable protection at a minimum primary current setting of 0.5A, while covering a maximum short-circuit interrupting current rating of 16,000A (16kA), with rated continuous current reaching 1,250A. This "sub-ampere detection + kilo-ampere interruption" full-range coverage is the dividing line that distinguishes a true recloser from a "circuit breaker + external controller assembly."

2. Rockwill RCW Series: Technical Deep Dive into the 0.5A–16,000A Full Range

2.1 Core Electrical Parameters (Based on Rockwill Official Data)

What the 0.5A–16,000A range ratio truly means: On the 800A rated current main unit, Rockwill RCW achieves stable protection at a minimum primary current of 0.5A as standard configuration, while delivering up to 16kA short-circuit interrupting capability. This means the device can accurately sense and make correct protection decisions across the entire range from a 0.5A weak high-impedance ground fault to a 16,000A short-circuit fault — this is the inherent physical advantage of a true recloser architecture.

2.2 The Three Core Technologies Enabling 0.5A–16,000A Full-Range Protection

First: Built-in modular high-precision sensors replacing external CTs. This eliminates the inherent physical contradiction in traditional "circuit breaker + external CT" solutions, where large-core CTs sacrifice low-current accuracy to resist saturation. The controller current input measurement range is 0–99A, with power consumption no more than 0.1VA per phase at 0.2A rated current, enabling detection of sub-ampere-level weak currents.

Second: Permanent magnet actuator + intelligent controller synergy. Opening time ≤ 30ms, closing time ≤ 40ms, mechanical life 10,000 to 30,000 cycles (100,000 cycles optional), perfectly executing the IEC-standard O-0.5s-CO-2s-CO-2s-CO operating sequence. The controller captures zero-sequence and phase current changes with ±10ms timing precision, isolating permanent short-circuit faults within milliseconds through a four-layer protection coordination mechanism.

Third: Graduated overload capability design. Overload capacity reaches 3× rated current for continuous operation, 20× rated current sustained for 4 seconds, and 50× rated current sustained for 1 second — meaning even under a 16kA short-circuit fault, the device maintains measurement accuracy during the pre-interruption transient without saturation distortion from current impact.

3. International Competitor Comparison: 0.5A–16kA Range Capability

3.1 NOJA Power (Australia) — Standard 1A, High-Resolution 0.2A Optional

NOJA OSM Series is the most direct international competitor to Rockwill:

• Standard configuration: Can detect 1A primary-side SEF current

• High-resolution SEF configuration: Requires matched CTs + Firmware 1.20 or above; minimum SEF protection pickup can reach 200mA (0.2A) in 100mA steps, specifically for high-impedance fault detection and public safety protection

• OSM15/27/38 Series: Rated current 800A, mechanical life 30,000 cycles

Key Note: NOJA themselves state: "Traditional reclosers provide sensitive earth fault protection with pickups of 4A and above." NOJA's 0.2A is a high-resolution SEF build option capability — it requires matched CTs and a specific firmware version, and is not a standard factory configuration across all models.

3.2 Eaton Cooper Power (USA)

Eaton offers the Viper® series solid-insulated reclosers:

• Hydraulic-controlled traditional reclosers: Minimum trip current is typically 2× the series coil rating (5A coil → 10A minimum trip; 50A coil → 100A minimum trip)

• Electronically controlled reclosers (NOVA-TS, SPEAR, etc.): Continuous current rating and programmable minimum trip are decoupled, but published manuals do not clearly specify sub-ampere-level SEF settings as standard configuration

3.3 ABB / Schneider Electric / Siemens

• ABB: GridShield, OVR solid-insulated reclosers, focusing on modular design

• Schneider Electric: Easergy series with SCADA integration

• Siemens: Compact Modular Recloser (CMR)

• Based on publicly available specifications, these manufacturers' conventional reclosers typically feature SEF sensitivity of 1A or above, with no clear claims of sub-ampere SEF standard configuration

3.4 Comprehensive Comparison Matrix

4. Rockwill's Differentiated Positioning: Standard Sub-Ampere, Customizable to 0.2A

Based on the facts above, the competitive landscape must be clearly understood:

1. vs. NOJA High-Resolution 0.2A Build Option

NOJA OSM requires optional matched CTs + Firmware 1.20 upgrade to achieve 0.2A SEF protection. For applications requiring special high-sensitivity performance, Rockwill reclosers can be customized to match NOJA's 0.2A sub-ampere protection capability.

2. Rockwill's Standard Configuration Core Advantage

Rockwill RCW Series, without any additional options, provides 0.5A primary current stable protection on the 800A rated current main unit as standard:

• Maintains linear accuracy across the 0.5A–16,000A range

• Avoids the matched CT option cost and firmware upgrade cycle required by the NOJA solution to achieve 0.2A capability

• Full-series IEC 62271-111 / IEEE C37.60 dual-standard compliance, with up to 25kA short-circuit breaking capability

3. vs. Eaton Cooper and Other Traditional Brands

Eaton hydraulic traditional reclosers feature minimum trip currents of 2× coil rating (10A minimum) — a 20× gap compared to Rockwill's 0.5A. This is a genuine generational difference. In 16kA-class short-circuit breaking capability, Rockwill offers 16kA/20kA/25kA multiple tiers, while Eaton's comparable products show fewer 16kA-class options in published documentation.

4. Revised Marketing Message Recommendation

"Rockwill RCW Series achieves stable protection at a minimum primary current of 0.5A as standard configuration on the 800A rated current unit, covering a maximum 16,000A (16kA) short-circuit interrupting current class, with a range ratio exceeding tens of thousands of times — significantly superior to industry standard configurations (typically 1A and above, such as NOJA OSM standard SEF at 1A, Eaton traditional reclosers minimum trip at 10A+). Among international first-tier brands, only NOJA OSM's high-resolution SEF build option can reach 0.2A — while Rockwill provides sub-ampere protection capability as a standard model without expensive options; for special high-sensitivity application scenarios, Rockwill can also be customized to match NOJA's 0.2A SEF performance."

5. Global Track Record: Field-Proven 0.5A–16kA Full-Range Capability

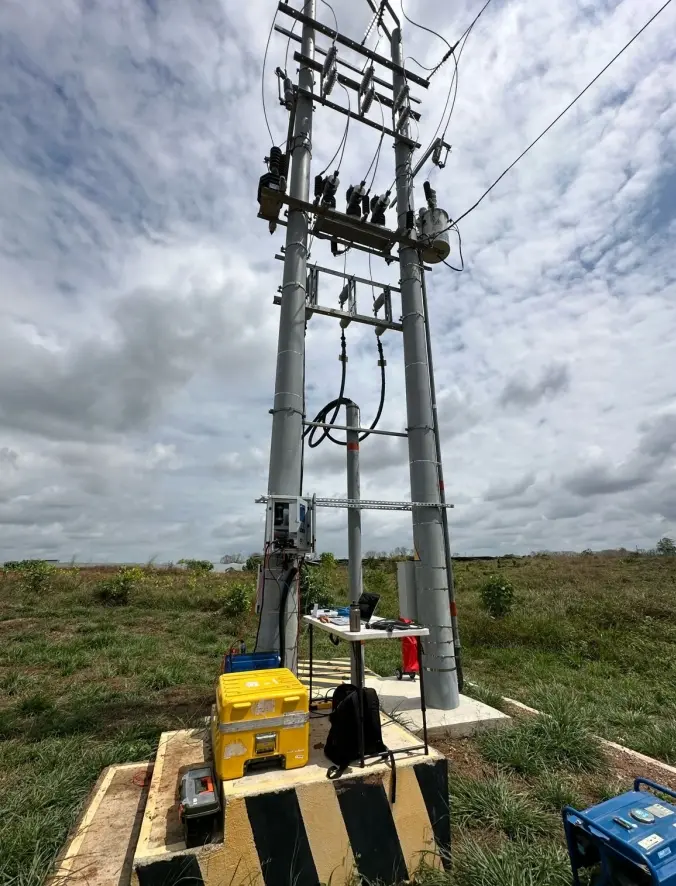

Rockwill RCW Series has been deployed in power grids across 90+ countries, with its 0.5A–16kA full-range protection capability validated in diverse extreme environments:

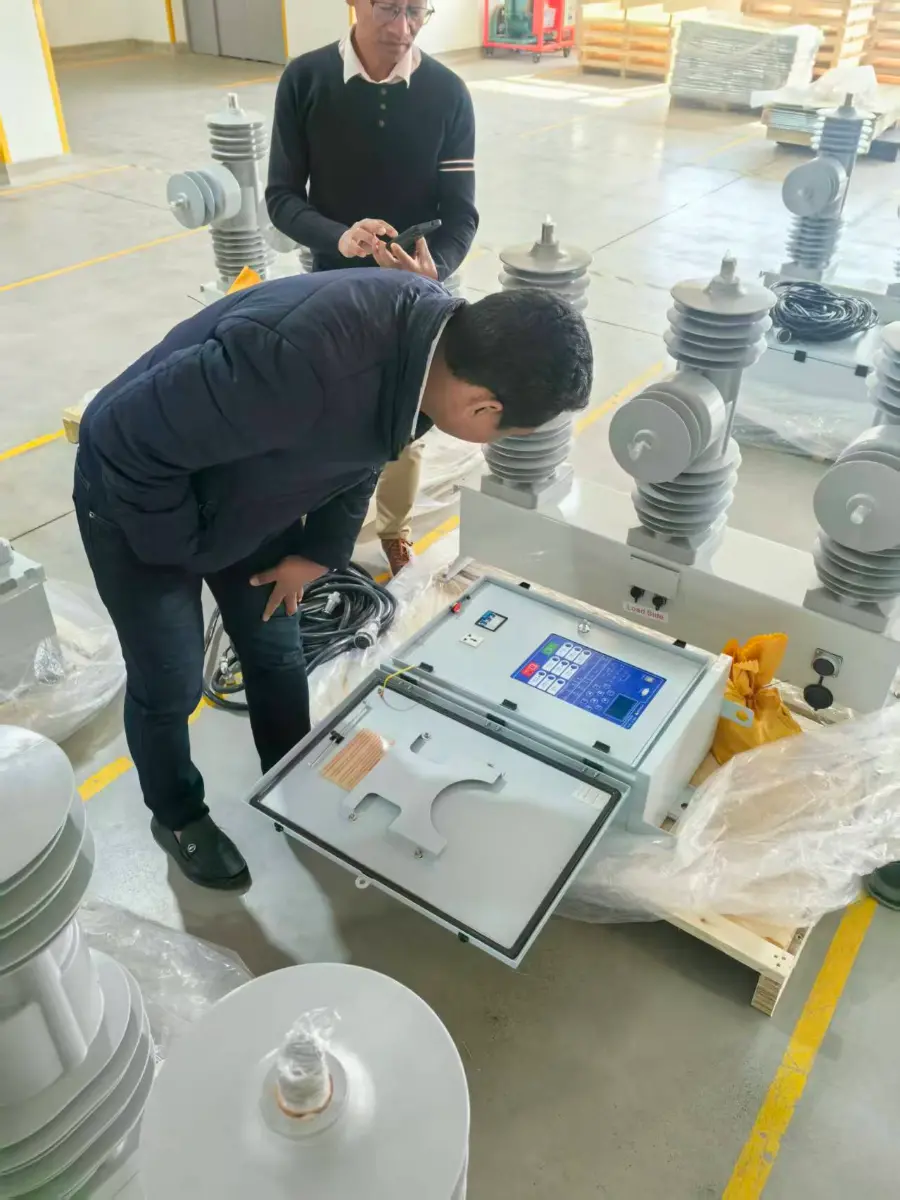

Southeast Asia: Cambodia — Over 200 units of 24kV smart reclosers in operation since 2013, exceeding 10 years of service; Philippines — NGCP (National Grid Corporation of the Philippines) senior technical delegation specially visited Rockwill to inspect the full-chain manufacturing process of 24kV smart reclosers.

Africa: Kenya — 170 sets of 11kV automatic reclosers (RCW12M model) for urban-rural grid upgrades, zero-fault operation since commissioning in May 2023; Ukraine — 186 units of 12kV outdoor vacuum reclosers deployed at −40°C extreme cold environments.

Latin America: ANSI/IEEE C37.60 standard automatic reclosers applied in Venezuela, Colombia, Brazil, Mexico, Argentina, Paraguay and more; Venezuela's CORPOELEC national power company continues to procure Rockwill medium-voltage equipment.

Europe & Middle East: Poland — 145kV eco-friendly GIS first entry into the EU market; Saudi Arabia — "Vision 2030" energy transition projects, Rockwill equipment paired with smart ring main units to build self-healing distribution networks.

East Africa — Word-of-Mouth Growth: Tanzania — expanded from REA II projects to TANESCO national-level 33kV upgrade projects; Uganda REA continues to expand procurement categories; Ethiopia — extended from five-star hotel compact substations to plateau grid customized circuit breaker solutions. These early cooperative partners have walked hand-in-hand with Rockwill for nearly 18 years, becoming Rockwill's "living business cards" and bringing in a large number of new customers every year.

6. Conclusion: The True Meaning of "World-Class"

The "world-class" designation for medium-voltage automatic reclosers should not be defined by any single parameter, but by the comprehensive capability of:

0.5A–16,000A full-range protection × range ratio × mechanism life × full-spectrum synergy × global track record

The Rockwill RCW Series — with its flagship 800A rated current (up to 1,250A), standard 0.5A minimum primary current protection, up to 25kA short-circuit breaking current, 10,000/30,000/100,000-cycle selectable mechanical life, dual IEC and ANSI standard compliance, and strict adherence to the principles of "true recloser" architecture — establishes its world-class positioning.

In distribution automation, the core device for ensuring power supply reliability can only be a true automatic recloser. Rockwill's unique value lies in: providing 0.5A–16,000A full-range protection capability as a standard configuration, enabling more grid operators worldwide — particularly in developing countries — to access world-class recloser technology at a reasonable cost. For special high-sensitivity application scenarios, Rockwill can also be customized to match NOJA's 0.2A SEF performance, achieving "standard sub-ampere, customizable to global top-tier."

As the "IoT recloser" trend accelerates toward becoming a key terminal device for the power IoT, Rockwill's architecture of "native wide-range high-precision sensing + fully integrated intelligent control + 100,000-cycle long-life optional + full-spectrum synergistic delivery" is the definitive answer to what constitutes a world-class solution for modern smart grids.

Frequently Asked Questions (FAQ)

Q1: What is the current range of the Rockwill RCW Series?

A: The Rockwill RCW Series features a minimum primary current protection setting of 0.5A as standard, capable of stably detecting weak high-impedance ground faults. It simultaneously provides a maximum short-circuit interrupting current rating of 16kA (16,000A), with rated continuous current covering 400A/630A/800A/1,250A, maintaining linear accuracy across the full 0.5A–16,000A range.

Q2: How does NOJA OSM achieve its 0.2A SEF capability?

A: NOJA OSM requires optional matched CTs combined with Firmware 1.20 or above. The minimum SEF protection pickup can reach 200mA (0.2A) for high-impedance fault detection. This is a build option capability, not a standard factory configuration.

Q3: Can Rockwill match NOJA's 0.2A high-resolution SEF?

A: Yes. For applications requiring special high-sensitivity performance, Rockwill reclosers can be customized to achieve the same 0.2A sub-ampere protection capability as the NOJA OSM high-resolution SEF build option.

Q4: What is the short-circuit breaking capability of the Rockwill RCW Series?

A: The RCW Series covers short-circuit breaking current ratings of 12.5kA / 16kA / 20kA / 25kA across multiple tiers. The 16kA class is the commonly specified high-capability level; 25kA is the maximum available rating, suitable for diverse short-circuit capacity requirements.

Q5: Why can't a "circuit breaker + external controller" assembly achieve 0.5A–16kA full-range protection?

A: External protection CT schemes suffer from large-core designs that cannot balance low-current accuracy. The secondary circuit switching introduces angular error, ratio error, and signal transmission noise, failing to meet IEC 62271-111 tolerance requirements for minimum trip currents. Additionally, CT saturation during 16kA-class short-circuit transients renders precise detection across the full range completely unachievable.

Q6: What is the mechanical life of the Rockwill RCW Series?

A: Multi-tier configurations of 10,000 / 30,000 / 100,000 cycles are available. The RCW+ flagship model achieves 100,000-cycle mechanical life with 30,000-cycle electrical life, backed by a 10-year full-unit warranty covering the vacuum interrupter chamber, permanent magnet actuator, and control electronics.
