Differentiated Fuse Solutions for Various Load Characteristics

Wone Store

08/30/2025

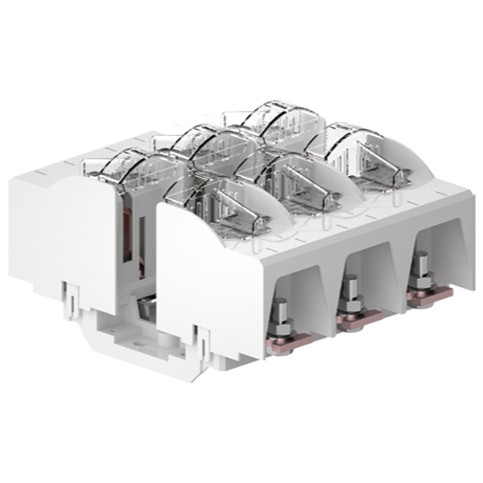

1.Background Introduction
In electrical system protection, fuses serve as critical overcurrent protection components. The accuracy of their selection directly impacts system safety and reliability. Loads with different characteristics (such as motors, lighting systems, and frequently switched equipment) exhibit significant differences in current behavior, including inrush current, starting time, duty cycle, etc. A one-size-fits-all fuse solution cannot meet all scenarios and is highly prone to causing false tripping (disrupting normal operation) or failure to operate (inability to provide effective protection during faults). Therefore, it is essential to develop tailored fuse selection strategies based on specific load characteristics to achieve precise and reliable system protection.

2. Load Characteristic Analysis and Classification
2.1 Motor Load Characteristics

High starting current: Typically 5–7 times the rated current (Ie), or even higher.
Long starting time: The entire process can last from several seconds to tens of seconds, subjecting protective components to sustained current impact.
Protection requirements: The fuse must withstand the prolonged starting process without blowing while providing timely protection against overload and short-circuit faults. Its characteristics must match the motor’s starting torque curve.

2.2 Lighting System Load Characteristics

Stable operation: Normal operating current is steady and close to the rated value.
Low inrush current: Except for the initial switching moment, there is no significant current surge.
Protection requirements: Continuous and stable overload and short-circuit protection is needed. High impact resistance is not critical, but reliability in conventional protection is emphasized.

2.3 Frequently Switched Equipment Characteristics

Cyclical current surges: Equipment undergoes frequent starts and stops, subjecting it to periodic high-current impacts.
Thermal stress cycling: The internal thermal stress of the fuse changes frequently, leading to material fatigue.
Protection requirements: The fuse must possess extremely high resistance to thermal fatigue and cyclic endurance to ensure performance does not degrade after numerous current impacts.

3. Differentiated Selection Strategies
Based on the above analysis, a three-tier selection strategy is formulated:

3.1 Motor Protection Solution

Type selected: aM-type (motor protection) fuses (referred to as "liquid ammonia fuse core" in some contexts, but commonly known as aM-type in general standards). This type is specifically designed for motor starting characteristics.
Characteristic requirements: Its time-current characteristic curve should closely match the motor’s starting current-time curve, avoiding activation during starting current.
Key parameters: The rated current must be greater than or equal to the motor’s rated current, ensuring precise protection against overload within 0.8–1.2 times the rated current while withstanding starting surges.
Advantages: Excellent tolerance to starting surges, effective prevention of false tripping, and reliable overload and short-circuit protection.

3.2 Lighting System Protection Solution

Type selected: gG/gL-type (full-range general-purpose) fuses. These are the most universal fuse types, suitable for protecting most distribution circuits.
Characteristic requirements: The load capacity should closely match the system’s rated current, providing stable time-delay and rapid-break characteristics.
Key parameters: Focus on rated breaking capacity (must exceed the expected short-circuit current at the installation point) and standard time-current characteristics.
Advantages: Economical, reliable, and comprehensive overload and short-circuit protection for stable lighting loads.

3.3 Frequently Switched Equipment Protection Solution

Type selected: Impact-resistant fuses (may correspond to specific brands or special types, such as semiconductor protection fuses, which feature high cyclic endurance).
Characteristic requirements: High resistance to thermal fatigue and high cyclic endurance to withstand frequent temperature changes without aging.
Key parameters: Emphasis on instantaneous breaking characteristics (ensuring rapid interruption of fault current) and durability (lifecycle indicators).
Advantages: Long-term performance stability under frequent current impacts, providing continuous and effective protection while avoiding premature failure due to material fatigue.

4. Core Technical Parameter Requirements
Regardless of the selection strategy, the following core parameters must be strictly verified:

Rated breaking capacity (Icn): Must exceed the maximum expected short-circuit current at the installation point to ensure safe interruption of fault current.
Time-current characteristic (I-t curve): Must coordinate with load characteristics (e.g., motor starting curve) and achieve selective protection with upstream (e.g., circuit breakers) and downstream devices to avoid unnecessary tripping.
Rated current (In): Determined based on the load’s rated current and application factors (e.g., selection factors in motor protection), not simply equated to the load current.
I²t value (Joule integral): Represents the energy required to blow the fuse, critical for coordination with semiconductor devices and achieving selective protection.

5. Implementation Key Points

System analysis: Conduct detailed analysis of each branch in the electrical system, recording key data such as load type, rated current, starting current, starting time, and expected short-circuit current.
Selective coordination: Utilize the time-current characteristic curves of fuses to ensure selective coordination with upstream and downstream protective devices (e.g., circuit breakers, contactors), isolating only the fault point during incidents to minimize downtime.
Validation testing: Where possible, verify fuse performance under actual or simulated operating conditions, particularly during motor starting processes.
Document management: Establish comprehensive fuse configuration records and maintenance logs, including model, ratings, installation location, replacement dates, etc., to facilitate maintenance and fault tracing.

6. Conclusion
By implementing the above three-tier differentiated selection strategy based on load characteristics, tailored protection solutions can be provided for various electrical equipment, such as motors, lighting systems, and frequently switched devices. This strategy effectively avoids false operations caused by normal load characteristics (e.g., motor starting) while ensuring timely and reliable operation during overload or short-circuit faults. Consequently, it significantly enhances the safety, stability, and reliability of the entire electrical system, ensuring operational continuity and equipment safety.
