Outdoor Current Transformer Solution: Environmental Resilience Focus

Challenge:​​ Providing accurate and reliable current measurement in harsh outdoor environments – particularly coastal zones with salt fog and industrial areas with chemical exposure – demands extreme environmental resilience. Standard enclosures and components rapidly degrade, leading to contamination buildup, corrosion, and measurement failure.

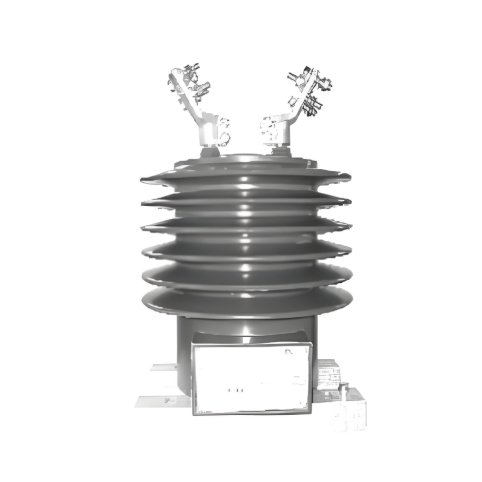

​Solution: Environmentally Resilient Outdoor Current Transformer​

This solution leverages advanced materials and integrated features to deliver unmatched performance and longevity in the harshest conditions, ensuring safety, reliability, and minimal maintenance.

​Core Environmental Resilience Technology:​​

• ​Advanced Housing:​​ Utilizes a high-performance ​silicone rubber or polymer composite housing. This material is specifically selected for:
• ​Superior UV Resistance:​​ Withstands prolonged, intense sunlight without cracking, chalking, or degradation.
• ​Exceptional Chemical Resistance:​​ Resists corrosion and deterioration from salt spray, acids, alkalis, solvents, and other industrial pollutants.
• ​Extreme Temperature Stability:​​ Maintains flexibility and sealing integrity across a wide operational temperature range (e.g., -40°C to +70°C or wider).
• ​High Dielectric Strength & Insulation:​​ Ensures electrical safety even in wet or contaminated conditions.
• ​Robust Mechanical Strength:​​ Provides impact resistance and protects internal components.

​Key Resilience Features:​​

1. ​Hydrophobic & Anti-Pollution Surfaces:​​
• The housing surface is engineered to be intrinsically ​hydrophobic​ (water-repellent).
• ​Benefit:​​ Significantly reduces water droplet adherence, causing moisture to bead up and roll off. This minimizes surface wetting time and dramatically ​reduces the buildup of conductive contaminants​ (dust, salt, soot). Crucial for maintaining high ​creepage and clearance distances, preventing tracking, surface arcing, and insulator flashover.
2. ​Integrated Controlled Heating System:​​
• ​Embedded heating elements​ are strategically placed within critical areas of the housing (e.g., insulation surfaces, core assembly region).
• ​Smart Regulation:​​ Paired with a temperature sensor and control unit to ​activate heating only when necessary​ (e.g., during freezing precipitation or when ambient drops near freezing).
• ​Benefit:​​ ​Prevents ice and heavy snow accumulation​ on critical insulating surfaces, ensuring reliable operation in cold climates. Maintains surface temperature above dew point to reduce condensation.
3. ​Corrosion-Resistant Hardware:​​
• All external hardware (bolts, brackets, mounting fixtures, terminals) is constructed from ​high-grade stainless steel​ (e.g., AISI 304 or preferably 316 for maximum pitting resistance).
• ​Benefit:​​ Provides inherent resistance to ​salt fog corrosion, chemical attack, and oxidation, ensuring long-term structural integrity and ease of maintenance access.

Ideal Use Case:​​

This solution is ​specifically engineered​ for demanding environments where standard current transformers rapidly fail:

• ​Coastal Power Infrastructure:​​ Substations, switchyards, or feeder lines exposed to constant ​salt fog, high humidity, and driving rain.
• ​Industrial Facilities:​​ Chemical plants, refineries, mines, wastewater treatment plants, pulp & paper mills – locations with high levels of ​corrosive gases, chemical splashes, abrasive dust, or airborne pollutants.
• ​Cold Coastal/Ice-Prone Regions:​​ Marine climates where ​freezing rain, sleet, and heavy snow​ compound the challenges of salt spray contamination.

​Benefits:​​

• ​Enhanced Reliability & Uptime:​​ Dramatically reduced risk of failure due to pollution flashover, icing, or corrosion.
• ​Extended Service Life:​​ Superior material resistance minimizes degradation, lowering replacement costs and frequency.
• ​Reduced Maintenance Costs:​​ Hydrophobic surfaces minimize cleaning needs; robust components resist seizing and corrosion.
• ​Improved Safety:​​ Consistent performance prevents dangerous insulation failures and potential arcing.
• ​Accurate Measurement:​​ Maintains calibration integrity in challenging conditions, ensuring precise current data.
• ​Lower Total Cost of Ownership:​​ Reduced failures, maintenance, and replacements lead to significant long-term savings.
