Wireless High Voltage Phase Detector

Description

TAG8000 wireless high voltage phase detector consists of wireless receiver, detector, telescopic insulating rod, etc. The receiver adopts a 3.5-inch true color LCD screen, which displays nuclear phase results, phase, frequency, and vector diagram indications on the same screen. There are voice prompts such as "X signal is normal, Y signal is normal, in-phase, out-of-phase", which is clear and intuitive. The distance between the nuclear phase on the open ground can reach 160m, and it can fully intelligently conduct the nuclear phase for the voltage line of 10V ~ 550kV. The bare wires of 35kV and below can directly contact the nuclear phase, and the bare wires above 35kV use the non-contact nuclear phase. The nuclear phase is to gradually approach the detector to the wire under test, and the nuclear phase can be completed when the electric field signal is sensed, so that there is no need to directly contact the high-voltage wire, which is safer!

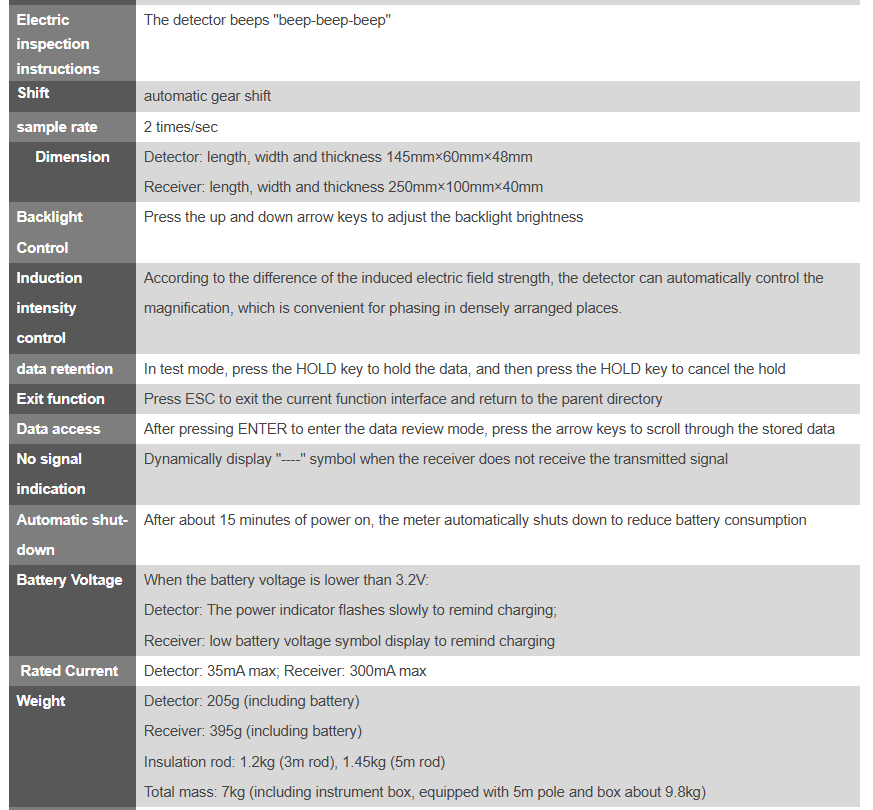

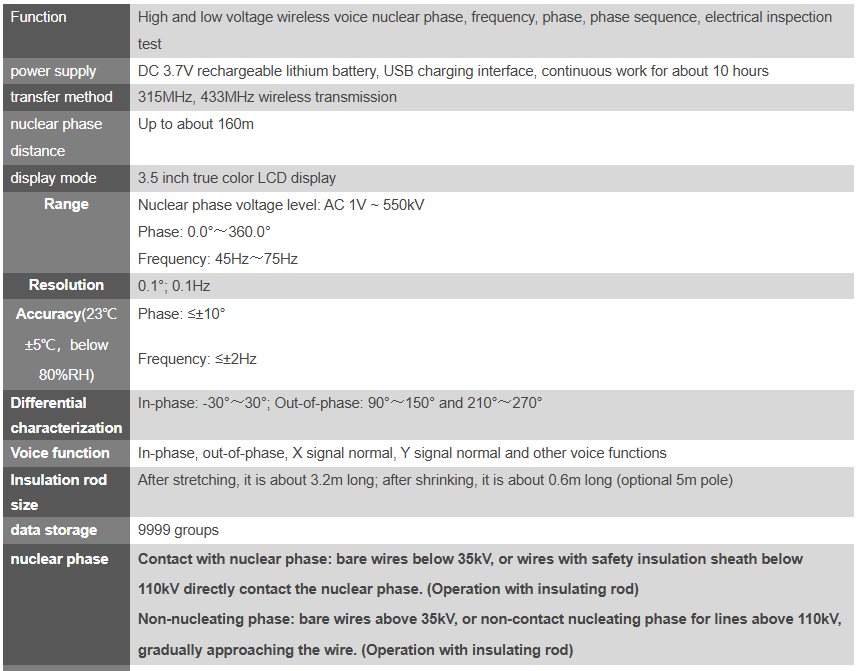

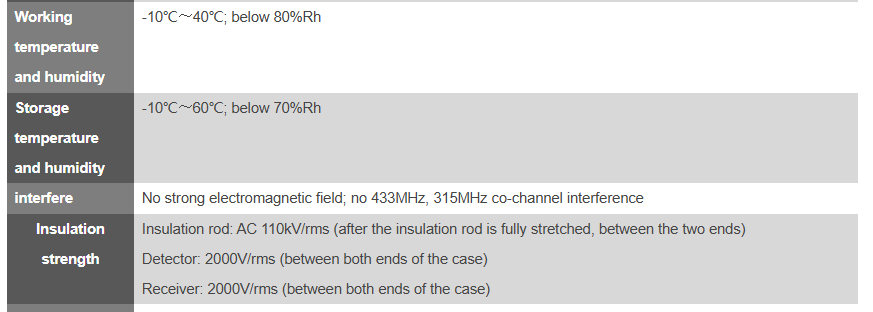

Specifications
