| Brand | ROCKWILL |
| Model NO. | Vacuum Under Oil Switches to capacitor bank switching 15kV 20kV |
| Rated voltage | 24kV |
| Series | VS |
TRINETICS VS Vacuum Under Oil Switches are high-performance, field-proven devices specially engineered for capacitor bank switching and capacitor switching. Designed for grounded wye power systems up to 34.5kV, this unit delivers stable and reliable capacitor switching capability, perfectly suited for frequent capacitor bank switching tasks in medium voltage distribution networks.
ofessional design dedicated to capacitor bank switching and capacitor switching with excellent switching performance
Motor operated structure, long mechanical service life and low maintenance frequency
Compact and proven structure, stable operation under frequent switching cycles
Cost-effective solution with outstanding cost-performance for capacitor switching applications
Wide voltage coverage, adaptable to 15kV / 24kV and up Prto 34.5kV system
The TRINETICS VS vacuum Switches are high-performance and time-proven designs, available for system applications up to 34.5kV grounded wye. The motor operated VS switches provide more mechanical operations with lesser maintenance at an economical price.
VS, 15kV, 95kV BIL PN: 33184401
VS, 24kV, 125kV BIL PN: 33195601

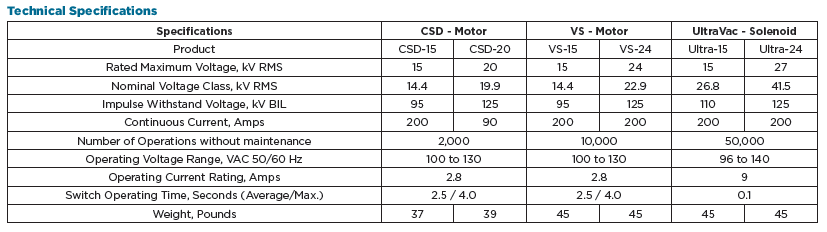

| Specifications | VS - Motor | UltraVac - Solenoid | ||
| VS-15 | VS-24 | Ultra-15 | Ultra-24 | |
| Product | VS-15 | VS-24 | Ultra-15 | Ultra-24 |
| Rated Maximum Voltage, kV RMS | 15 | 24 | 15 | 27 |
| Nominal Voltage Class, kV RMS | 14.4 | 22.9 | 26.8 | 41.5 |
| Impulse Withstand Voltage, kV BIL | 95 | 125 | 110 | 125 |
| Continuous Current, Amps | 200 | 200 | 200 | 200 |
| Number of Operations without maintenance | 10,000 | 50,000 | ||
| Operating Voltage Range, VAC 50/60 Hz | 100 to 130 | 96 to 140 | ||
| Operating Current Rating, Amps | 2.8 | 9 | ||
| Switch Operating Time, Seconds (Average/Max.) | 2.5 / 4.0 | 0.1 | ||
| Weight, Pounds | 45 | 45 | 45 | 45 |
Ideal for capacitor bank switching and capacitor switching in substation power distribution, industrial plant power supply, commercial complex grid system, renewable energy power station and medium-voltage power grid reconstruction projects.
