Tube Connector Type PTC - Copper

Name: Tube Connector Type PTC - Copper
Brand: Zhejiang Wone IT Service Co., Ltd.
SKU: 973
Availability: InStock

Zhejiang Wone IT Service Co., Ltd.

2yrs 300++ staff 65666m²+m² US$50000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Wone
Model NO.	Tube Connector Type PTC - Copper
O.D. Tube	38.1mm
Series	PTC

Description

Description

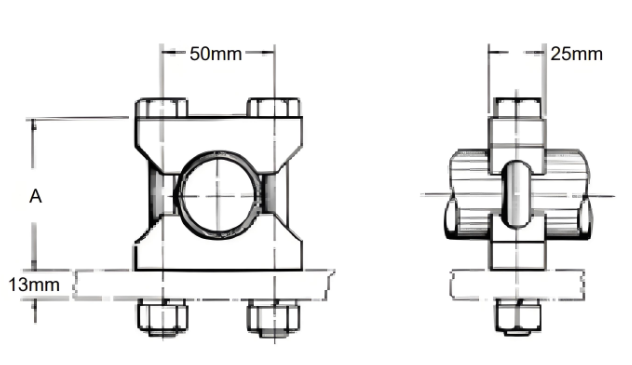

For the connection of tubular busbar to switchgear terminal plates with four 14mm diameter holes at 50mm centres. Two PTC connectors are required per termination. Materials: High copper content alloy castings. Stainless steel bolts, washers and nuts.

Parameter

Fittings on this page have a minimum current rating, in line with the maximum Australian Standard conductor size or busbar size that the fitting can accept.
