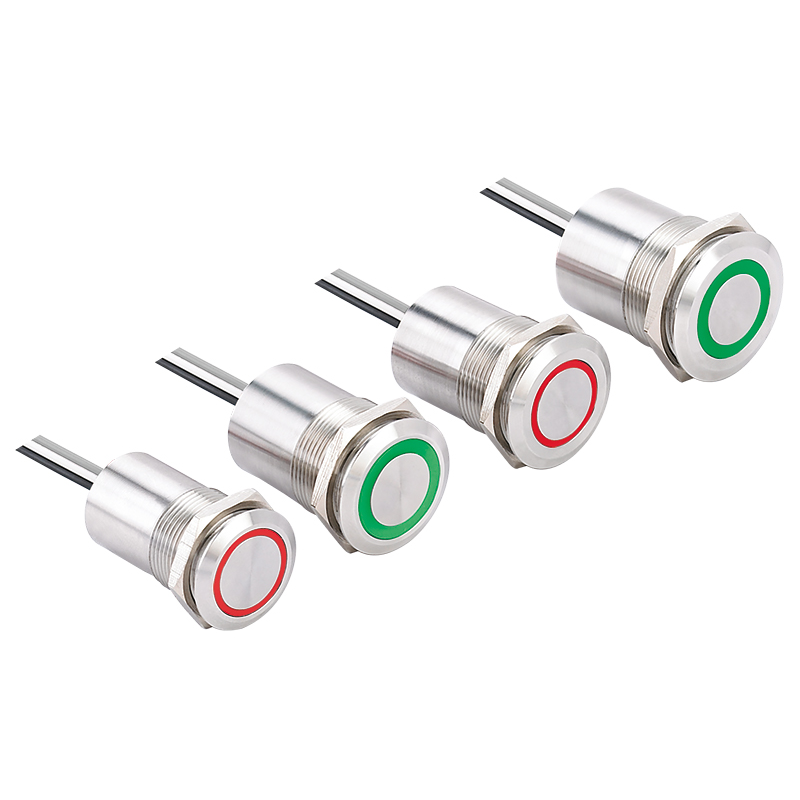

TS Series Touch Switch
Key attributes
| Brand | Wone Store |
| Model NO. | TS Series Touch Switch |
| operation mode | trigger delayed open |
| cabinet type | stainless steel |
| installation diameter | 25mm |
| button Head shape | flat round |
| interface configure | 1*C+NO |
| Certification | CE |
| switch rating | 24V 0.5A |
| Electrical life | ≥50000000 cycle |
| Dielectric strength | 1000VAC |
| Contact resistance | ≤20mΩ |
| Insulation resistance | 10MΩ(600V) |
| Operating environment | -25 ℃~55℃ |
| LED color | red/green/blue/yellow/white |
| LED rated voltage | 6V/12V/24V |
| lamp type | lighting ring |
| Series | TS Series |
Product descriptions from the supplier
☆Panel Cutout Dimension Φ16/19/22，24V/500mA
☆Finger touch trigger (can be triggered by flowing water)
☆Ultra long life (50 million cycles)
☆Can be customized according to the needs of appearance
☆IP68,IP69K
For more information, please read the selection manual. ↓↓↓
