| Brand | POWERTECH |

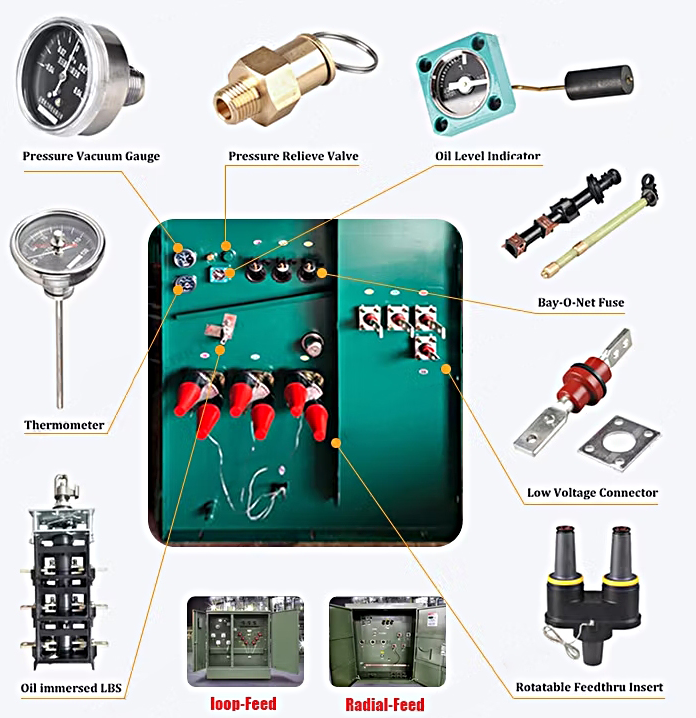

| Model NO. | Three Phase Pad Mounted Transformer 75 KVA - 3750 KVA |
| Rated capacity | 1000kVA |
| Series | ZGS |
The ZGS series Pad Mounted Transformer is a high-efficiency Three-Phase Transformer optimized for urban and rural power distribution systems. Adopting advanced cooling technology and rugged structural design, this Pad Mounted Transformer maintains stable performance in complex working environments. The Three-Phase Transformer is widely applicable to commercial complexes, industrial factories and public facilities, perfectly meeting scenarios with limited installation space and strict energy-saving requirements.
This Pad Mounted Transformer features compact layout and diversified voltage grades, with primary input ranging from 6.3kV to 34.5kV and multiple secondary output options to match various power demands. The Three-Phase Transformer adopts high-quality silicon steel sheet and precision copper or aluminum windings, ensuring long-term steady operation with efficiency up to 99%. The fully weatherproof enclosure enables the Pad Mounted Transformer to resist harsh climates, suitable for both urban centralized layout and remote outdoor installation.
Equipped with optional intelligent monitoring function and fully complying with ISO9001 international certification, the ZGS series Three-Phase Transformer provides reliable future-oriented solutions for modern power distribution networks. The Pad Mounted Transformer supports 24-month warranty and sufficient production capacity, ensuring stable delivery and professional after-sales service.
Wide input voltage of Three-Phase Transformer: 6.3kV–34.5kV (13.8kV, 15kV optional)
Multiple output configurations for Pad Mounted Transformer: 480Y/277V, 415Y/240V, 600Y/347V
Ultra-high efficiency up to 99%, with 5.75% impedance
Three-Phase Transformer adopts EI core and Dyn11 dual-winding structure
Cooling mode of Pad Mounted Transformer: KNAN / ONAN optional
Insulation medium: eco-friendly FT3 fluid or mineral oil
ISO9001 quality certified Three-Phase Transformer
Fully enclosed anti-rust enclosure for Pad Mounted Transformer
Flexible copper or aluminum winding selection
| Rated Power (KVA) | No-load Loss (W) | On-load Loss (W) |
|---|---|---|
| 75 | 180 | 1250 |
| 150 | 280 | 2200 |
| 300 | 480 | 3650 |
| 500 | 680 | 5100 |
| 750 | 980 | 7500 |
| 1000 | 1150 | 10300 |
| 1500 | 1640 | 14500 |
| 2000 | 2160 | 20645 |
| 2500 | 2680 | 27786 |
| 3000 | 3300 | 30300 |
| 3750 | 4125 | 37875 |
The Pad Mounted transformer is suitable for outdoor ground installation, adapting to ambient temperature -30℃～+40℃ and conventional altitude conditions.
This Three-Phase Transformer runs reliably in coastal humid, dusty and general industrial polluted environments with excellent waterproof, anti-corrosion and weatherproof performance.
The Pad Mounted Transformer meets standard wind resistance and seismic requirements, applicable for residential areas, roadside parks and industrial zone outdoor layout.
