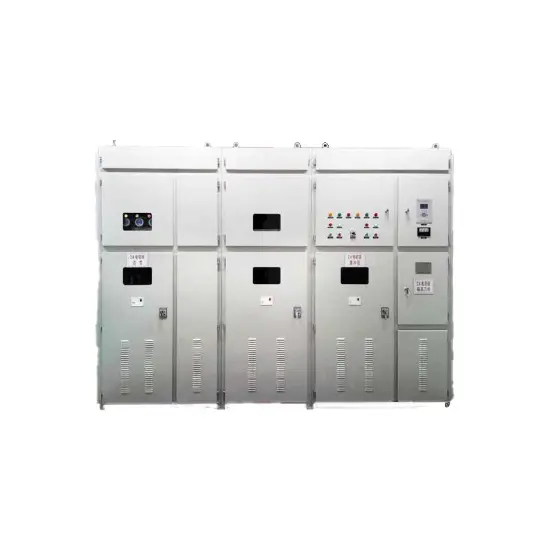

TBBGZ Series Cabinet Type Capacitor

Overview

A capacitor bank assembly consisting of a bypass switch, capacitors, reactors, discharge coils, surge arresters, vacuum circuit breakers, and secondary equipment housed in a metal cabinet, with the aim of automatically switching capacitors through a rational control and protection system.

Features：

Intelligentization

The products can be switched on and off in groups automatically, achieving automatic reactive power compensation and improving the compensation efficiency.

Modular design

Compact structure, small footprint, the area occupied by the same capacity frame is reduced by more than 30%.

High reliability

Combining mechanical and electrical anti-error interlocking functions to ensure safe operation of the equipment.

Integrated design

The device is pre-assembled, pre-adjusted, and shipped as a complete unit, so the amount of on-site installation and commissioning work is minimal.

Parameters
