SVC series12kV/400A Vacuum Contactor
Key attributes
| Brand | Wone Store |
| Model NO. | SVC series12kV/400A Vacuum Contactor |
| Rated voltage | 12kV |
| Rated normal current | 630A |
| Rated frequency | 50/60Hz |
| Series | SVC |
Product descriptions from the supplier
Product Description
The SVC Series 12kV/400A Vacuum Contactor is a core control device specifically designed for medium-voltage power systems. With a rated voltage of 12kV and a rated current of 400A, it accurately adapts to 12kV-grade medium-voltage power distribution scenarios. Adopting mature vacuum arc-extinguishing technology, it can reliably realize circuit on-off control while featuring excellent safety and durability. Widely used in industrial power distribution cabinets, frequency converter cabinets, power plant auxiliary drive systems and other scenarios, it meets the core requirements of medium-voltage power circuits for stable control and low operation and maintenance costs, providing key power support for the efficient operation of industrial production.
Features
Parameters
Main loop rated parameters |
||
Rated operating voltage |
12 kV |
|
Rated Operating Current (AC-3) |
400A |
630A |
Rated frequency |
50/60 Hz |
|
Related capabilities |
4000 A |
6300 A |
Breaking ability |
3200 A |
5040 A |
Short-term withstand current (4 seconds) |
4000 A |
6300 A |
Switch capacity of a single capacitor bank |
3500 kVar |
|
50Hz power frequency withstand voltage |
42 kV, 1 minute |
|
Lightning shock withstand voltage |
75 kV |
|
Mechanical life |
1,000,000 |
1,000,000 |
Electrical Life (AC-3) |
250,000 |
250,000 |
Rated Operating Frequency (AC-3) |
300 times/hour |
300 times/hour |
Contact resistance |
≤100 µΩ |
≤100 µΩ |
Control loop rating parameters |
||
The coil controls the voltage Ue |
110/220 VAC 50/60Hz |
|
Operating voltage range |
0.8-1.1×Ue |
|
Release voltage |
≤0.5×Ue |
|
Aspiration time |
≤80 ms |
|
Break time |
≤80 ms |
|
Three-phase synchronization |
≤2 ms |
|
Closing bounce time |
≤2 ms |
|
Auxiliary contacts |
3NO+2NC as standard, which can be expanded according to requirements |
|
Application conditions |
||
Operating temperature |
-25~+40ºC |
|
Maximum relative humidity |
90% (at +25ºC) |
|
elevation |
2000 m |
|
weight |
Approx. 30 kg |
|

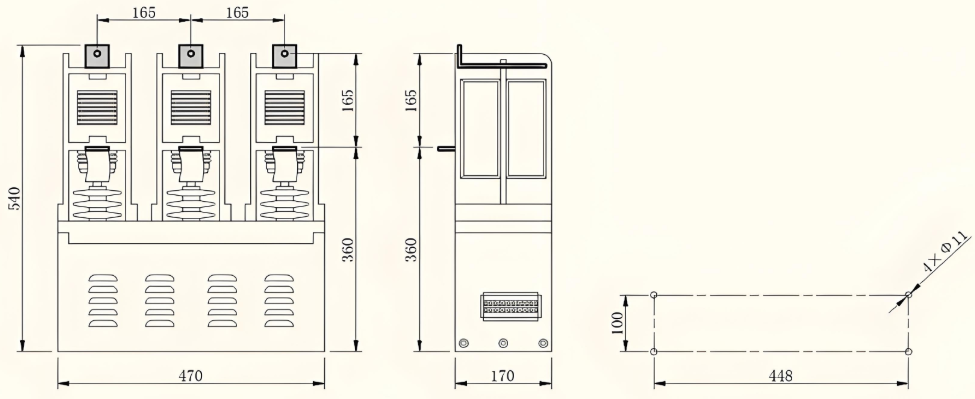

Dimensions (W×H×D) |
470 mm×540 mm×170 mm |
|
