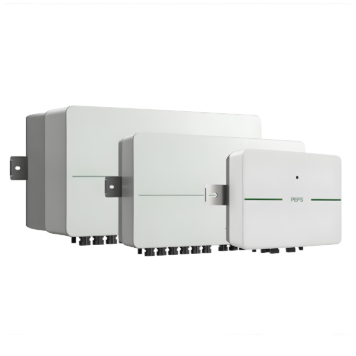

String-level Firefighter Safety Switch (String-level)
Key attributes
| Brand | Wone Store |
| Model NO. | String-level Firefighter Safety Switch (String-level) |
| Rated frequency | 50/60Hz |
| Series | PEFS |
Product descriptions from the supplier
Description
PEFS-EL Series String-level Firefighter Safety Switch can be applied to residential and C&I solar PV projects, its maximum loop voltage can be up to 1500V which meets the requirements of high-power panel. In case of emergency, it can quickly cut off the high voltage between the PV Modules and the solar inverter, ensuring the safety for your photovoltaic system.
Product Features
1500V,63A,1~10 Strings models for option
Complies with TUV, CE, CB, SAA, UL certification
Meet V0 flame retardant grade anti-UV F1 grade
IP65 design, Optional anti-PIL
Technical Parameter
| PV System Voltage | ≤1500V | AC Input Voltage Range | 100Vac - 270Vac | Short-Term Power Consumption | 14W |
| Electrical Life | >1500 times | PID Recovery Voltage to Earth at night | +600V | PID Recovery Current Output at night | 6.7mA |
| System Insulating Impendance | >200kΩ | Module Type Required | P Crystalline Silicon Type |
High Craftsmanship AND High Standards
Max 1500V / Max 50A
Arc Fault protection (Optional)
PID recovery (Optional)
Flame retardant UL94-V0
Easy Installation
Physical Isolation
Outdoor Installation IP65
Over temperature protection > 70℃
FB1 FB2 function achieves external monitoring
