| Brand | HK Electrical |
| Model NO. | Standard APG Clamping Machine |
| Heating power | 24Kw |
| Series | HAPG-860 |
Description
This type machine called six sides machine, on top, bottom, right and left side all withcore-pullers, and the core-pullers are controlled by hydraulic system, so it can move automatically.This machine special applicate to produce ZW32 circuit breakder.
Specifications
Model NO. |
HAPG-860-double |
Clamp plate size（mm） |
1000*1200 |
Clamp force |
18T |
Min/Max clamp plate stroke（mm） |
240*2000 |
Upper&Lower core puller stroke（mm） |
760*350 |
Heating power |
24Kw |
Hydraulic station power |
7.5kW |
Horizontal tilting angle |
0-5° |
mould load weight |
2T |
Machine weight |
4.8T |
Machine dimension（mm） |
6400*2000*2800 |

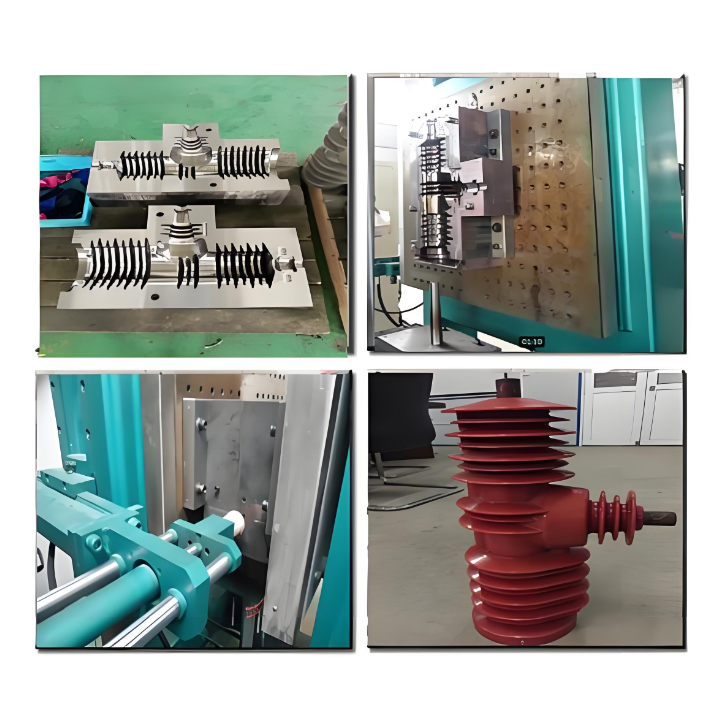

machine work process
