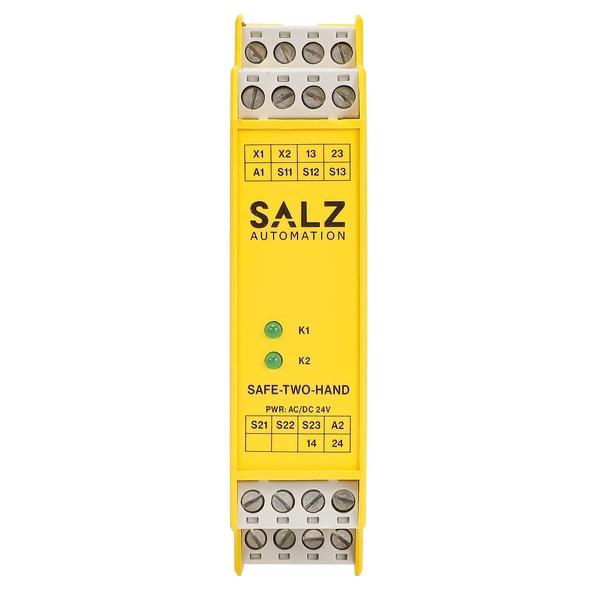

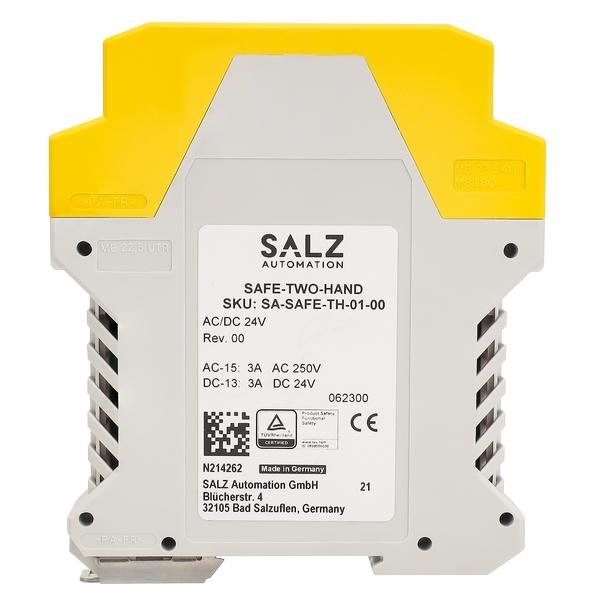

SAFE-TWO-HAND Monitoring Relay

Name: SAFE-TWO-HAND Monitoring Relay
Brand: Zhejiang Xinyouxiang Electric Technology Co., Ltd.
SKU: 2443
Availability: InStock

Zhejiang Xinyouxiang Electric Technology Co., Ltd.

2yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Xinyouxiang
Model NO.	SAFE-TWO-HAND Monitoring Relay
Rated frequency	50/60Hz
Series	SAFE

Description

SAFE-TWO-HAND safety relay is a very compact universal safety dual hand control device. It complies with EN ISO 13851, type IIIC, and is intended for use in safety circuits designed according to EN 60204-1, such as on stamping machines, punch presses, and bending equipment. Due to its internal error monitoring, dual hand safety relays can be used for applications that comply with safety level 4 of EN ISO 13849-1, SILCL 3 of EN 62061, or type III C of EN ISO 13851.

Safety relay for two-hand monitoring up to SIL3 and Type IIIC

Function

2 safe relay contacts, input per push button 1 N/O, 1 N/C, automatic start, Type IIIC, up to SIL 3 / Cat. 4, PL e, 24 V AC/DC, width: 22.5 mm

Features

2 N/O Safety Contacts

Two-Hand Push Buttons

SIL CL 3 (EN 62061 / IEC 61508)

Type IIIC (EN ISO 13851)

Parameter	Specification
In compliance with	EN ISO 13851, EN 60204-1, EN ISO 13849-1, EN 62061
Operating voltage	AC/DC 24 V +/- 10 %
Power consumption	AC 3.5 VA/DC 1.5 W
Rated supply frequency	50 - 60 Hz
Control voltage at S11 and S22	DC 24 V
Control current	typical 2 x 40 mA
Safety contacts non-delayed	2 NO
Max. switching voltage	AC 250 V
Contact rating of safety contacts 6 switching cycles/min	AC: 250 V, 1500 VA, 6 A for resistive load 250 V, 3 A for AC-15 DC: 24 V, 144 W, 6 A for resistive load 24 V, 3 A for DC-13
Max. total current through all contacts	12 A
Minimum contact load	5 V, 10 mA
External fuses	10 A gG
Release time for the safety relays after release of a button	< 20 ms
Response delay after actuation of the buttons	< 20 ms
Synchronization time	0.5 s
Max. length of control line	1000 m at 0.75 mm²
Wire width	0.14 - 2.5 mm²
Tightening moment (Min./Max.)	0.5 Nm/0.6 Nm
Contact material	AgSnO₂
Service Life	mech. approx. 1×10⁷
Test voltage	2.5 kV (control voltage/contacts)
Rated impulse withstand voltage, leakage path/air gap	4 kV (DIN VDE 0110-1)
Rated insulation voltage	250 V
Degree of pollution/Overvoltage category	2/3 (DIN VDE 0110-0)
Protection	IP20
Temperature range Ambient	-15 °C to +60 °C (max. +40 °C for AC use)
Temperature range Storage	-15 °C to +85 °C
Max. altitude	≤ 2000 m (above sea level)
Weight approx.	190 g
Mounting DIN rail according to EN 60715	TH35
