Power Interface Relay Module FY-NGG2R
Key attributes
| Brand | Switchgear parts |
| Model NO. | Power Interface Relay Module FY-NGG2R |
| Rated voltage | 12V/24VDC/220VAC |
| Series | FY-NGG2R |
Product descriptions from the supplier
The FY-NGG2R series relay module adopts European terminal and spring type screw free terminal design, with input protection and multiple output protection types, which can effectively protect the safety of the circuit. At the same time, the FY-NGG2R series relay module adopts an NPW/PNP dual level compatibility design, which is suitable for CNC systems such as Fanuc, Mitsubishi, Siemens, as well as various industrial and agricultural equipment such as automation equipment, processing machinery welding equipment, etc. It is a relay module with high cost-effectiveness.
Relay Modules are designed for current amplification and isolation protection of output loads. Applicable to PLC, microprocessor systems and time relays, etc, amplifying the control current of outputs, to protect key control systems not being destroyed.
Features

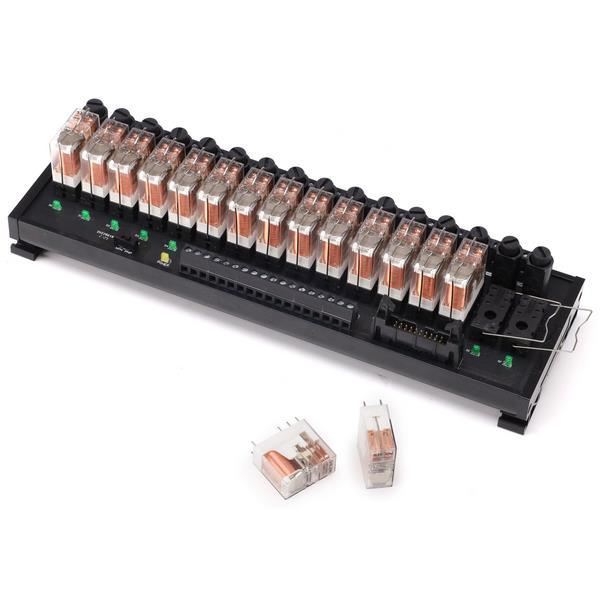

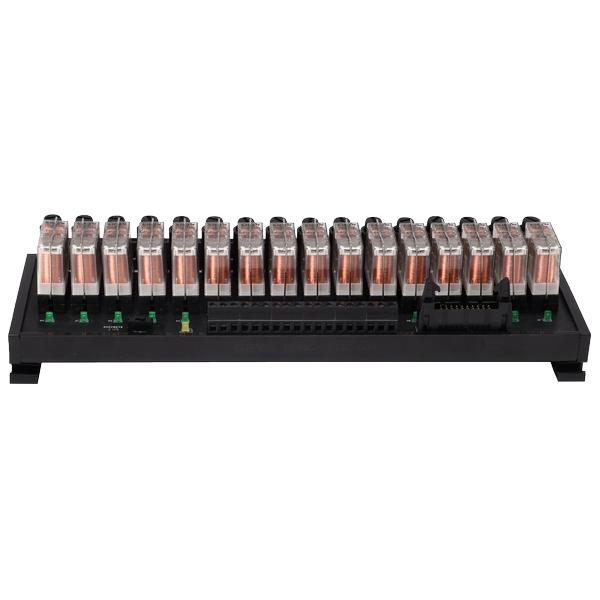

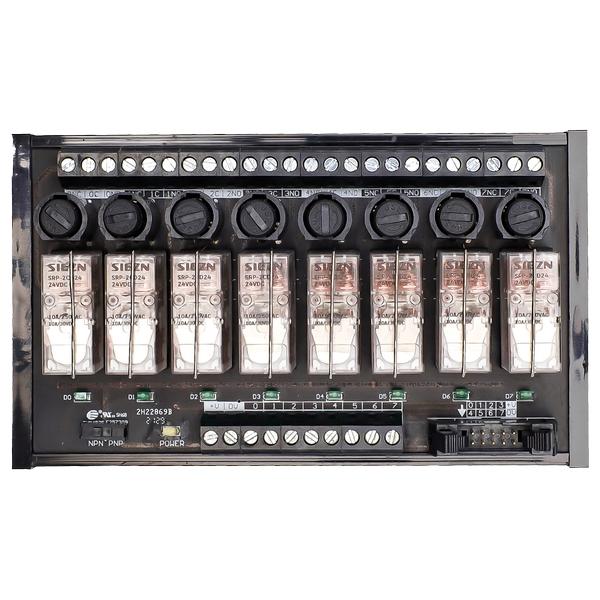

DIN Rail optional 1/2/4/8/16 channels relay interface modules
Sub-miniature intermediate power relay, approved TUV, UL, and RoHS compliant.
Switching current up to 10A at 250VAC or 30VDC
Input connections by screw terminal block.NPN& PNP in common use, AC&DC in common use
Relay status indicator LED, surge suppression protection, and overvoltage protection are provided for each relay channel
DIN Rail mountable for width TS15/28/35
| Input operating voltage | Rated DC/AC±10% |
| Relay Mounting | Soldered on PCB |
| Rated Load Current | 10A 250V AC/30V DC |
| Max Inrush Current | 10A |
| Coil Resistance | 100mQ (1A 6V DC) |
| Operate Time(at normal volt.) | ≤10ms |
| Release Time(at normal volt.) | ≤10ms |
| Input/Output Connections | Screw terminal block |
| Wire Range | 0.2～2.5mm² |
| Stripping Length | 6-7mm |
| DIN Rail Mountable | 15/28/35mm |
| Power Per Channel | 0.45W |
| Dimension | 18 x 90 x 52 mm |
