Oil-type switches to capacitor bank switching

Name: Oil-type switches to capacitor bank switching
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 2177
Price: 9100.00 USD
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	Oil-type switches to capacitor bank switching
Rated voltage	20kV
Series	CSD

Description

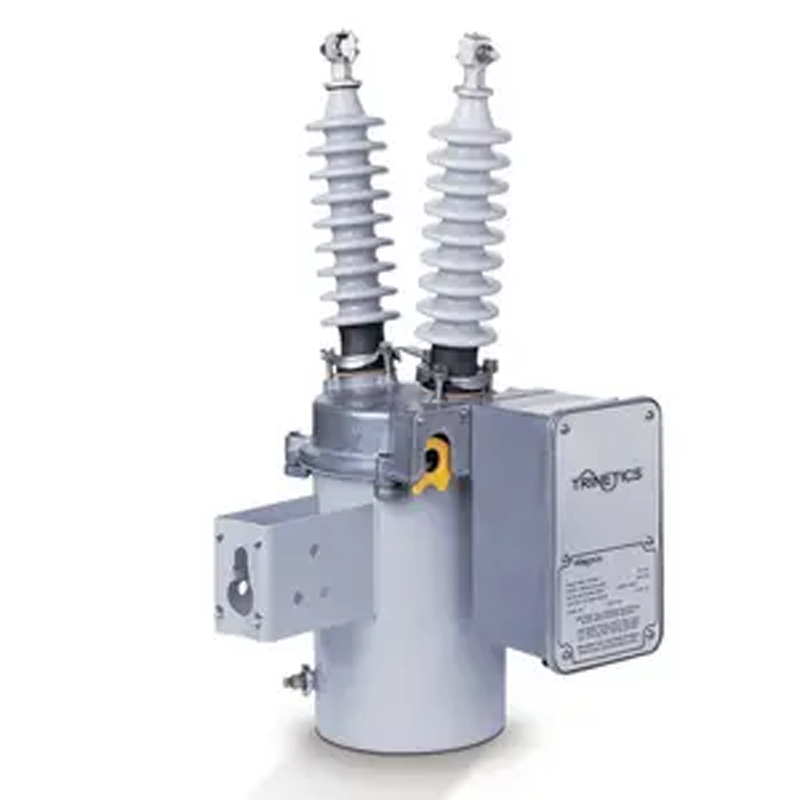

CSD Oil-Type Switches

The TRINETICS legacy CSD oil-type switches offer a time-proven and industry-tested product design that provides a cost-efficient solution to capacitor bank switching. The motor operated CSD switches are the most economical solution for capacitor bank switching.

Standard CSD Options

● CSD, 15kV, 95kV BIL PN: 33050001
● CSD, 20kV, 125kV BIL PN: 33184601

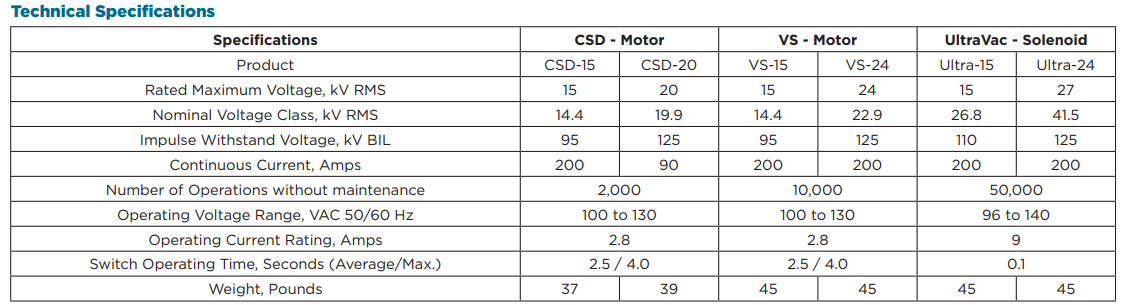

Specifications	CSD - Motor		UltraVac - Solenoid
	CSD-15	CSD-20	Ultra-15	Ultra-24
Product	CSD-15	CSD-20	Ultra-15	Ultra-24
Rated Maximum Voltage, kV RMS	15	20	15	27
Nominal Voltage Class, kV RMS	14.4	19.9	26.8	41.5
Impulse Withstand Voltage, kV BIL	95	125	110	125
Continuous Current, Amps	200	90	200	200
Number of Operations without maintenance	2,000		50,000
Operating Voltage Range, VAC 50/60 Hz	100 to 130		96 to 140
Operating Current Rating, Amps	2.8		9
Switch Operating Time, Seconds (Average/Max.)	2.5 / 4.0		0.1
Weight, Pounds	37	39	45	45
