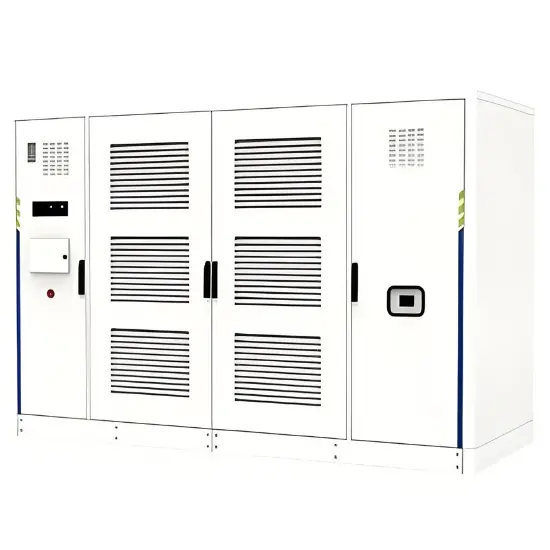

Modular Solid State Transformers for Adaptable Energy Integration

Name: Modular Solid State Transformers for Adaptable Energy Integration
Brand: Zhejiang Rockwell Energy Technology Co., Ltd.
SKU: 3240
Price: 228000.00 USD
Availability: InStock

Zhejiang Rockwell Energy Technology Co., Ltd.

13yrs 100+ staff 30000+m² US$100000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Rw Energy
Series	RW-SST
Rated Power	1.0MW / 1.25MW / 1.5MW
Rated Grid Voltage	AC 10kV / DC ±10kV
Rated Output Voltage	DC 750V / DC 800V

Description

Product Description

Solid-state transformers (SSTs), also known as power electronic transformers, are based on the core concept of Power Electronic Building Blocks (PEBB). They generally employ a modular series-parallel topology to facilitate the flexible integration of varying voltage levels, capacity ratings, and forms of electrical energy, thereby enabling adaptable configurations for diverse application scenarios.

Features

Small size, few links, average efficiency improvement 3% (2%~5%)
High frequency replaces power frequency, reducing windings and copper consumption 90%+
Flexible AC/DC multi-port conversion AC10kV/DC ±10kV/DC750V
DC200~1000V stepless voltage regulation, multi-port self-adaptation

Technical Specifications

Item	Parameters
Rated Power	1.0MW / 1.25MW / 1.5MW
Rated Grid Voltage	AC 10kV / DC ±10kV
Rated Output Voltage	DC 750V / DC 800V
Maximum Efficiency	98.5%
Power Control Accuracy	≤ ±1%
Current Harmonic Distortion（Rated Operating Condition）	＜1%
Redundancy Level	N+X (X customizable)
Ingress Protection Rating	IP54
Ambient Temperature	-25℃ ~ +50℃
Altitude	≤2000m
Overall Dimensions (W × D × H)	3600x1500x2400mm (1.25MW Model)
