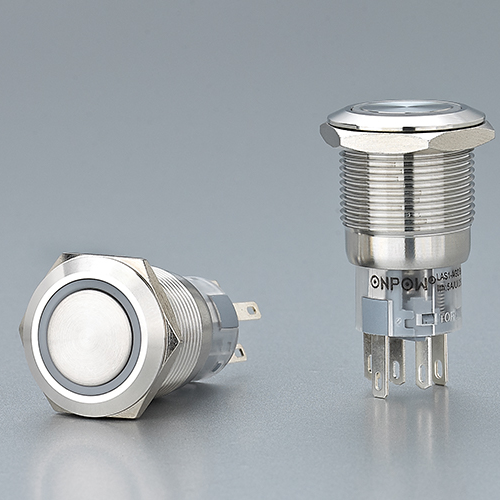

LAS1-AGQ Series Metal Push Button Switch

$12.00

Model

LAS1-AGQ-22ZET/S

LAS1-AGQ-11ZET/S

LAS1-AGQ-22ET/S

LAS1-AGQ-11ET/S

LAS1-AGQ-22ZE/A

LAS1-AGQ-22ZE/S

LAS1-AGQ-22ZD/S

LAS1-AGQ-11ZE/A

LAS1-AGQ-11ZE/S

LAS1-AGQ-11ZD/S

LAS1-AGQ16-22ZET/S

LAS1-AGQ16-11ZET/S

LAS1-AGQ16-22ET/S

LAS1-AGQ16-11ET/S

LAS1-AGQ16H-22ZE/N

LAS1-AGQ16H-22ZD/N

LAS1-AGQ16H-22Z/N

LAS1-AGQ16-22ZE/N

LAS1-AGQ16-22ZD/N

LAS1-AGQ16-22Z/N

LAS1-AGQ16H-11ZE/N

LAS1-AGQ16H-11ZD/N

LAS1-AGQ16H-11Z/N

LAS1-AGQ16-11ZE/N

LAS1-AGQ16-11ZD/N

LAS1-AGQ16-11Z/N

LAS1-AGQ16H-22E/N

LAS1-AGQ16H-22D/N

LAS1-AGQ16H-22/N

LAS1-AGQ16-22E/N

LAS1-AGQ16-22D/N

LAS1-AGQ16-22/N

LAS1-AGQ16H-11E/N

LAS1-AGQ16H-11D/N

LAS1-AGQ16H-11/N

LAS1-AGQ16-11E/N

LAS1-AGQ16-11D/N

LAS1-AGQ16-11/N

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	LAS1-AGQ Series Metal Push Button Switch
operation mode	mechanical self-latching
cabinet type	stainless steel
installation diameter	19mm
button Head shape	flat round
interface configure	2*C+NO+NC
Certification	CE+UL+CCC+VDE
switch rating	250Ui 5A
Mechanical life	≥1000000 cycle
Electrical life	≥50000 cycle
Dielectric strength	1500VAC
Contact resistance	≤50mΩ
Insulation resistance	≥100MΩ(500VDC)
Operating environment	-25 ℃~55℃
Operation pressure	1.5N
Operation travel	3mm
Terminal type	PIN type
LED color	red/green/blue/yellow/white
LED rated voltage	6V/12V/24V
lamp type	lighting ring+power button
Series	LAS1-AGQ Series

Product Detail

☆Panel Cutout Dimension φ16/φ19/φ22，Ui:250V,Ith:20A
☆Unique switch structure supports 20A overload current, wider application
☆Bigger buttons for more functions, eye-catching appearance and simple triggering
☆Latching type for gear self-locking structure to improve stability
☆IP65(IP67 made to order ) ,IK09
☆Certificate: CCC/CE

For more information, please read the selection manual. ↓↓↓
