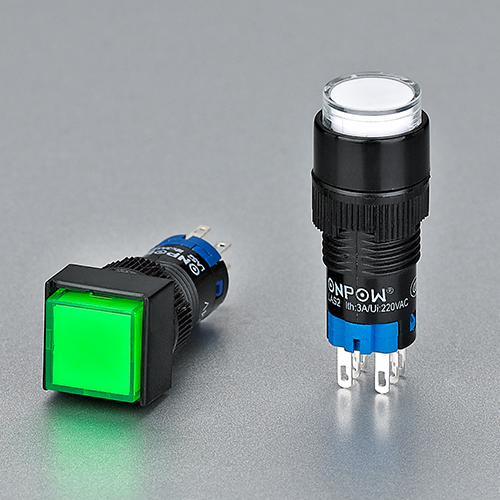

LAS Series Plastic Push Button Switch

$4.00

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	LAS Series Plastic Push Button Switch
operation mode	mechanical self-latching
cabinet type	PE
installation diameter	16mm
button Head shape	plastic shell of rectangular
interface configure	1*C+NO+NC
Certification	CE
switch rating	250Ui 3A
Mechanical life	≥1000000 cycle
Electrical life	≥50000 cycle
Dielectric strength	1500VAC
Contact resistance	≤50mΩ
Insulation resistance	≥100MΩ(500VDC)
Operating environment	-25 ℃~55℃
Operation pressure	2N
Operation travel	3mm
Terminal type	PIN type
LED color	red/green/blue/yellow/white
LED rated voltage	6V/12V/24V/110V/220V
lamp type	Single lamp of LED
Series	LAS Series

Product Detail

☆Panel Cutout Dimension φ8/φ10//φ12/φ16，Ui:250V，Ith:3A
☆Compact structure and small size
☆The best choice for miniaturized panel users
☆Certificate: CE

For more information, please read the selection manual. ↓↓↓
