JDZX16-36RPC Voltage Transformer

Product Overview

JDZX16-36RPC voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, improve the filth and moisture resistance. Product’s plug design conform to standard IEC 60502.4. The whole structure of product is shielding type, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest   voltage for equipment 40.5 kV.

Key Features

• Compact and Lightweight Structure：With an overall compact design, small volume, and relatively light weight, it’s easy to install and arrange in switch cabinets, substations, etc., where space is limited. Saves installation space and cost, and reduces difficulty and workload during transportation and installation.

• Convenient Installation Methods：Equipped with flexible and diverse installation interfaces and methods. Can be conveniently installed vertically, horizontally, etc., according to actual project needs. Quickly adapts to various power equipment and systems, improving project installation efficiency.

• High Reliability：Undergoes strict quality control and testing processes. Features high reliability and stability, maintaining good performance during long - term continuous operation. Reduces equipment failure and maintenance frequencies, cuts operation and maintenance costs, and improves the availability of the power system.

Main technical parameter

• Rated primary voltage：35/√3

• Rated secondary voltage：100/√3 V，100/√3/100/3 V

• Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V

• Burden power factor: cosΦ=0.8(lagging)

• Standards: IEC60044-2.2003 or IEC61869-1&3

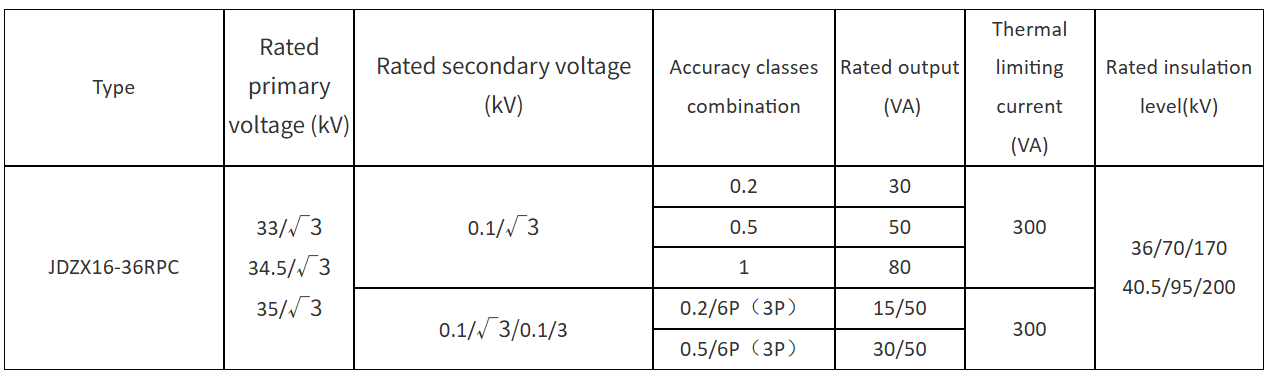

Other technical parameters pls see as follow:

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs
