JDZW16-12 Outdoor Voltage Transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JDZW16-12 Outdoor Voltage Transformer |
| Rated frequency | 50/60Hz |
| Primary voltage | 11kV |
| Secondary voltage | 110V |
| Series | JDZW |
Product descriptions from the supplier
Product Overview
JDZW16-12 voltage transformer, outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

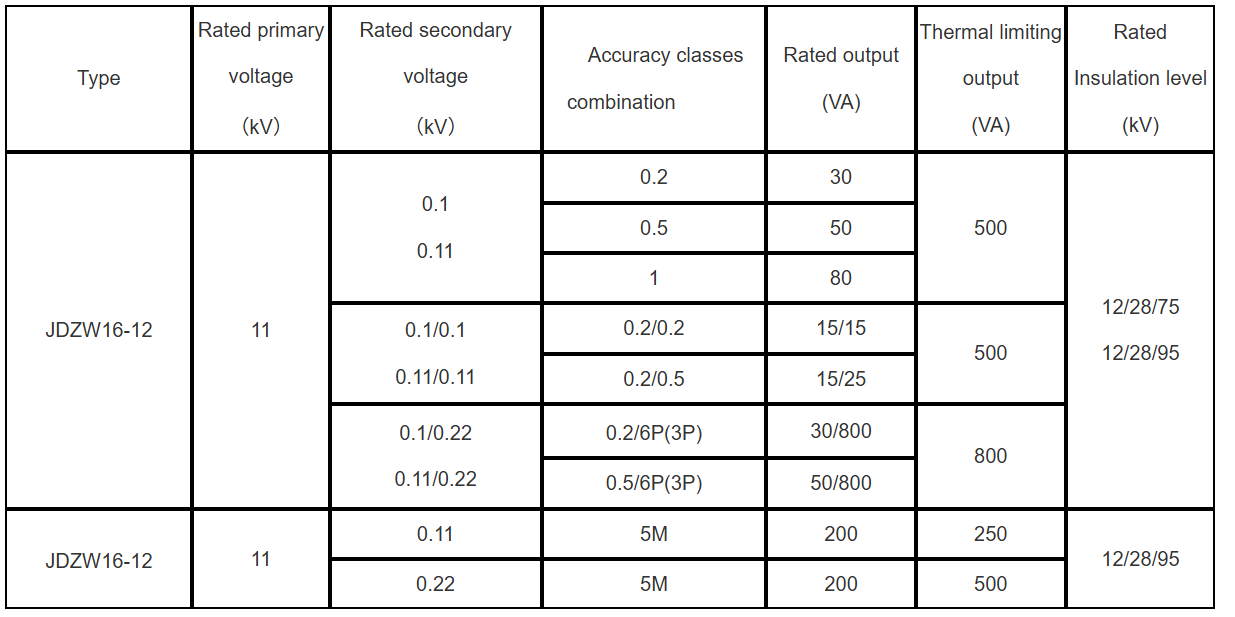

Key Technical Data
Rated Frequency: 50-60Hz
Load power factor cosΦ=0.8 （lagging）
Installation Site outdoor
D Technical standard accords with IEC60044-2:2003 or IEC618691&3
Remarks: Upon request we are glad to offer transformers according to other technical specs.

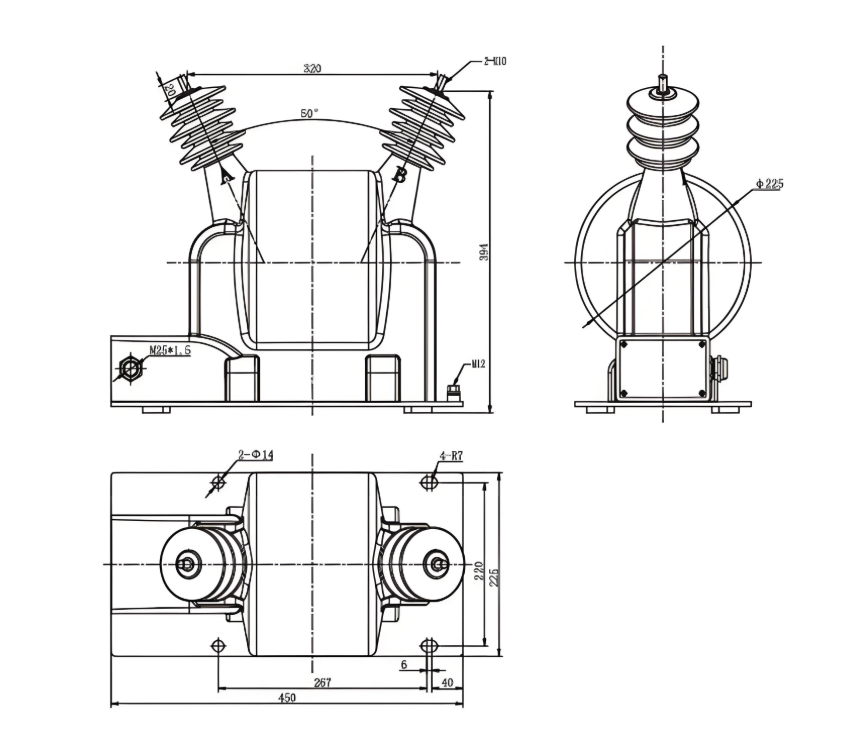

Outline Drawing
