| Brand | ROCKWILL |
| Series | RGIS |
| Rated Voltage | 10kV-35kV |
| Maximum Operating Voltage | 12-40.5kV |
| Rated Power Frequency Withstand Voltage | 42-95kV |
| Rated Lightning Impulse Withstand Voltag | 75-185kV |
The RGIS Type C-GIS is a compact gas-insulated switchgear designed for medium-voltage systems. Integrating a vacuum circuit breaker, a three-position disconnector, and an intelligent control unit, it delivers high reliability and cost-effectiveness as its core advantages. Rated for 12 kV / 24 kV / 40.5 kV indoor distribution applications, it provides safe and efficient power distribution for critical loads.
Compact and space-saving: Modular design optimizes floor space utilization; pre-assembled enclosure for easy installation and transport; supports expansion on both sides.

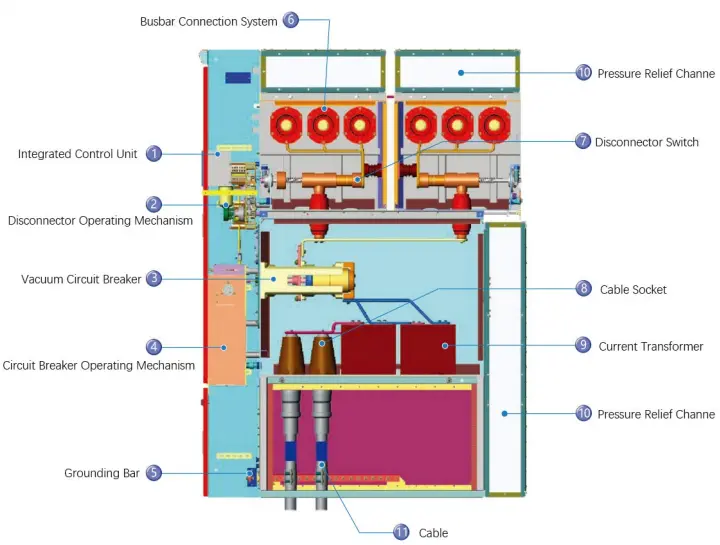

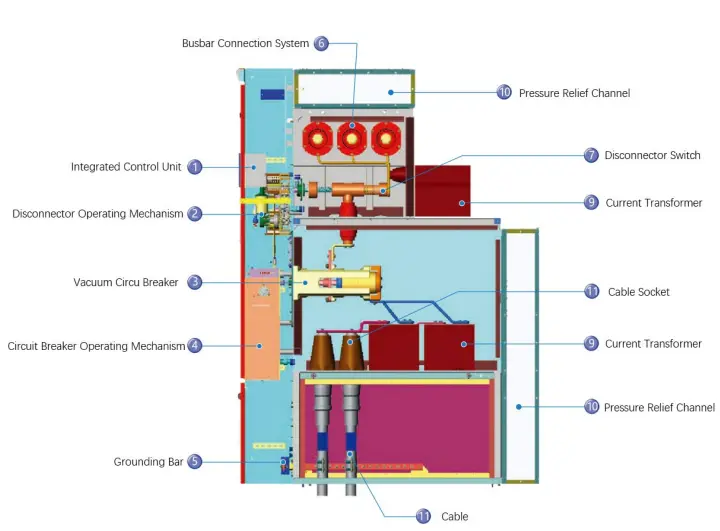

Safe and reliable: Fully sealed stainless steel gas compartment; three-position disconnector with mechanical interlocks; multi-chamber partitioning with pressure relief channels-multiple layers of protection eliminate safety risks.
Intelligent and easy to maintain: Integrated measurement, protection, and control unit with automation capability; clean, user-friendly interface; compliant with both international and domestic standards.
Cost-effective: High-reliability vacuum interrupter with extended maintenance intervals; one-stop customization service balancing performance and lifecycle cost.
| Item | Unit | RGIS-12 | RGIS-24 | RGIS-40.5 |
|---|---|---|---|---|
| Rated Voltage | kV | 10 | 20 | 35 |
| Maximum Operating Voltage | kV | 12 | 24 | 40.5 |
| Rated Power Frequency Withstand Voltage | kV | 42 | 65 | 95 |
| Rated Lightning Impulse Withstand Voltage | kV | 75 | 125 | 185 |
| Minimum Functional Pressure (Absolute at 20°C) | kPa | 110 | ||
| Rated Frequency | Hz | 50/60 | ||
| Rated Busbar Current | A | up to 2500⁽¹⁾ | ||
| Rated Feeder Current | A | 630/1250/2500⁽¹⁾ | ||
| Rated Peak Withstand Current | kA | 80 | ||
| Rated Short-Time Withstand Current | kA | 31.5 | ||
| Rated Short-Circuit Breaking Current of Circuit Breaker | kA | 31.5 | ||
| Rated Short-Circuit Making Current of Circuit Breaker | kA | 80 | ||
| Rated Operating Sequence | ||||
| Closing Time | ms | 60 ± 5 | ||
| Opening Time | ms | 40±5 | ||
| Insulating Gas | N2 | N2 | SF 6⁽³⁾ | |
| Rated Filling Pressure (Absolute at 20°C) | kPa | 130 | ||
| Minimum Operating Pressure (Absolute at 20°C) | kPa | 120 | ||
| Auxiliary Circuit Voltage | V | |||
| Protection Level⁽⁵⁾ High Voltage / Low Voltage | IP 65 / IP 4X⁽⁵⁾ | |||
| Ambient Temperature Maximum Value / Minimum Value | °C | +40 / -15 | ||
1)Higher values as required by national standards；2)Other sequences can be provided upon customer request；3)Insulating gas: N2, SF6 (sulfur hexafluoride)；4)Other auxiliary voltages can be provided upon customer request；5)Higher levels can be provided upon customer request ；6)Can be adapted to special environments upon customer request
With four core advantages—compactness, safety, intelligence, and economy—the RGIS Type C-GIS redefines the cost-performance benchmark for medium-voltage GIS equipment, ensuring stable and reliable operation of your power distribution system.
Urban rail transit, commercial complexes, hospitals, data centers—critical load distribution
Industrial parks, mining and industrial MV distribution systems
Renewable energy plants, energy storage station auxiliary equipment
Old substation retrofits and space-constrained upgrade projects
Yes. The manufacturer offers one-stop customization service, balancing performance and lifecycle cost. Custom options include higher voltage levels, special environments, auxiliary voltages, and special sequences — upon customer request.
Yes. The modular design supports expansion on both sides of the unit. The pre-assembled enclosure enables easy installation and transport, while maintaining flexibility for future capacity expansion.
Yes. The compact, space-saving design makes the RGIS Type C-GIS an ideal solution for old substation retrofits and space-constrained upgrade projects. Pre-assembled construction minimizes on-site installation time.
The high-reliability vacuum interrupter features extended maintenance intervals, reducing downtime and O&M costs. The clean, user-friendly interface simplifies daily operation and monitoring.
