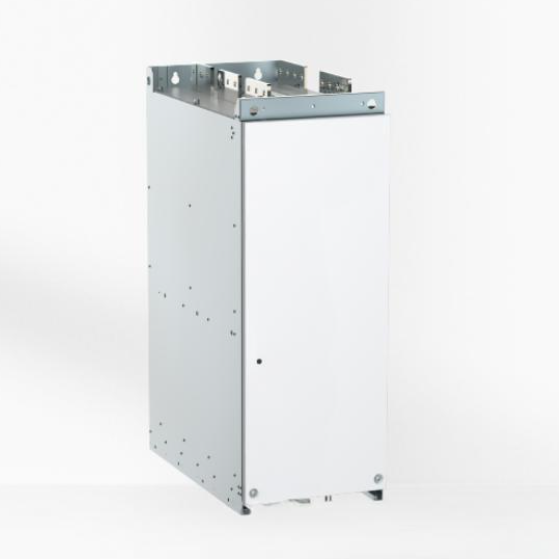

HD2000 Series Low Voltage Engineered Frequency Converter (Water Cooled)
discuss personally
Model
| Brand | RW Energy |
| Model NO. | HD2000 Series Low Voltage Engineered Frequency Converter (Water Cooled) |
| Rated frequency | 50/60Hz |
| Series | HD |
Overview
400V, 690V, 1140V, 1380V/160kW~2800kW, and the maximum power of the parallel machine can reach 22400kW
Performance characteristics
Engineered reliability design
High redundancy of control system and power system
Water-cooled heat dissipation design, low noise and better heat dissipation
Optical fiber connection, stronger anti-interference ability
"Blocked" design
Modular components, all frontal maintenance
No special tools required, simple and convenient maintenance
Intelligent fault diagnosis system for quick positioning
Highly adaptable design
Strong grid adaptability, support wide range input of the grid
Support single-axis and multi-axis transmission
Equipped with unit and unit cabinet series products
Support 3 different rectification methods
Support a variety of communication protocols and encoder modules
Excellent control
Adapted to asynchronous motors and permanent magnet synchronous motors
Two-quadrant and four-quadrant rectification schemes
Rectification, inverter parallel and parallel current sharing technology
OLVC and CLVC control online automatic switching technology
Master-slave synchronous control technology
Load balancing control technology
Communication Protocols & Smart Software
Support multiple communication protocols (Profibus DP, CANopen, Profinet IO, Modbus RTU, Modbus TCP, EtherCAT, EtherNet, ControlNet and DeviceNet)
Provide fast debugging tool hopeInsight to realize online parameter setting, status monitoring, intelligent fault recording and fault diagnosis, etc
Main parameters
project |
Specifications and technical data |
|
Basic rectification |
Input voltage |
4：380V~480V，6：500V~690V |
Input frequency |
（50Hz/60Hz）±6% |
|
Output voltage |
Input Voltage*1.32 (Full Load Condition) |
|
Overload capacity |
Relative base load current IH_DC allows 150% overload for 60s with a maximum current Imax_DC overload 5s, load cycle 300s |
|
Efficiency |
≥99% |
|
Protection function |
Overheating protection, soft rise protection, interlock protection, etc |
|
Intelligent rectification |
Input voltage |
4：380V～480V，6：500V～690V |
Input frequency |
47～63Hz |
|
Output voltage |
Input Voltage*1.3 (Full Load Condition) |
|
Overload capacity |
Relative base load current IH_DC allows 150% overload for 60s with a maximum current Imax_DC overload 5s, load cycle 300s |
|
Efficiency |
≥98.5% |
|
Protection function |
Overheat protection, overcurrent protection, IGBT pass-through protection, etc |
|
PWM rectification |
Input voltage |
4：380V~480V，6：500V~690V，9：1140V，A：1380V |
Input frequency |
47～63Hz |
|
Output voltage |
Input Voltage*1.5 (Rated Condition) |
|
Overload capacity |
Relative base load current IH_DC allows 150% overload for 60s with a maximum current Imax_DC overload 5s, load cycle 300s |
|
Efficiency |
≥98% (including LCL filter unit) |
|
Factor |
Adjustable (factory set to 1) |
|
Protection function |
Over-temperature protection, over-current protection, overload protection, IGBT pass-through protection, etc |
|
Inverse |
Rated input voltage |
4：410Vdc～780Vdc，6：550Vdc～1100Vdc，9：1488Vdc～2200Vdc |
A：1488Vdc~2200Vdc |
||
Output voltage |
0~Rectifier AC input voltage |
|
Output frequency |
0～500Hz |
|
speed regulation range |
V/F：1:50 OLVC：1:200 CLVC：1:1000 |
|
Steady speed accuracy |
OLVC：0.2% ； CLVC：0.01% |
|
Pulsating speed |
OLVC：0.2%； CLVC：0.1% |
|
Start torque |
OLVC：150%（0.5Hz） ； CLVC：200%（0Hz） |
|
Torque control |
V/F: Not supported; OLVC: Support ; CLVC: Yes |
|
Torque accuracy |
OLVC：5% ； CLVC：5% |
|
Torque response time |
OLVC：5ms ； CLVC：5ms |
|
RPM response time |
OLVC：100ms； CLVC：100ms |
|
Dynamic drop equivalent |
OLVC：0.5%*s； CLVC：0.3%*s |
|
environmental conditions |
temperature |
-15°C~+40°C is not degraded, and +40°C~+55°C is degraded |
humidity |
5%~95% non-condensation |
|
elevation |
≤ 4000m, 2000m~4000m reduced use |
|
Mechanical data |
Anti-vibration performance |
Complies with IEC 60721-3-3:2002 |
Protection level |
IP00 / IP20 / IP40 |
|
Safety level |
Meets UL 508C-2004 |
|
Cooling method |
Cold wind, cold water |
|
