| Brand | HK Electrical |

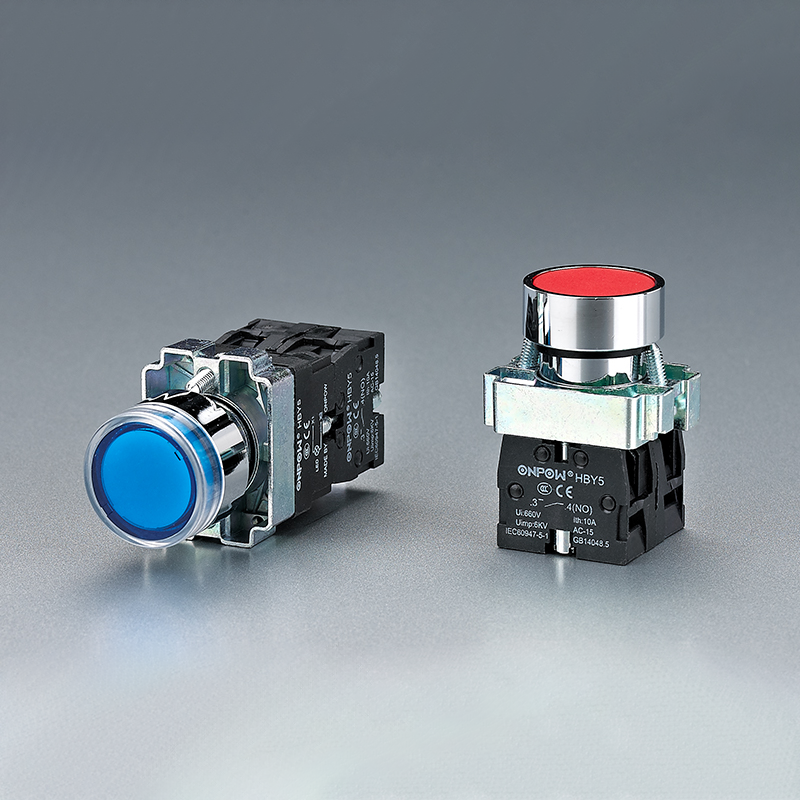

| Model NO. | HBY5 Series Plastic Push Button Switch |
| operation mode | mechanical self-latching |
| cabinet type | PE |
| installation diameter | 22mm |
| button Head shape | plastic shell of round |
| interface configure | 1*C+NO+NC |
| Certification | CE+CCC |
| switch rating | 250Ui 10A |
| Mechanical life | ≥1000000 cycle |
| Electrical life | ≥50000 cycle |
| Dielectric strength | 1500VAC |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ(500VDC) |
| Operating environment | -25 ℃~55℃ |
| Operation pressure | 2N |
| Operation travel | 6mm |
| Terminal type | Threaded type |
| LED color | N/A |
| LED rated voltage | N/A |
| lamp type | N/A |
| Series | HBY5 Series |
☆Panel Cutout Dimension φ22，Ui:660V，Ith:10A
☆Complete range of products
☆Anti-transformation head, firm and reliable
☆1~8 groups of switches can be combined freely
☆Certificate: CCC/CE
For more information, please read the selection manual. ↓↓↓
