| Brand | Switchgear parts |
| Model NO. | GTY Export copper conduit |
| Nominal cross-sectional area | 25mm² |
| Series | GTY |

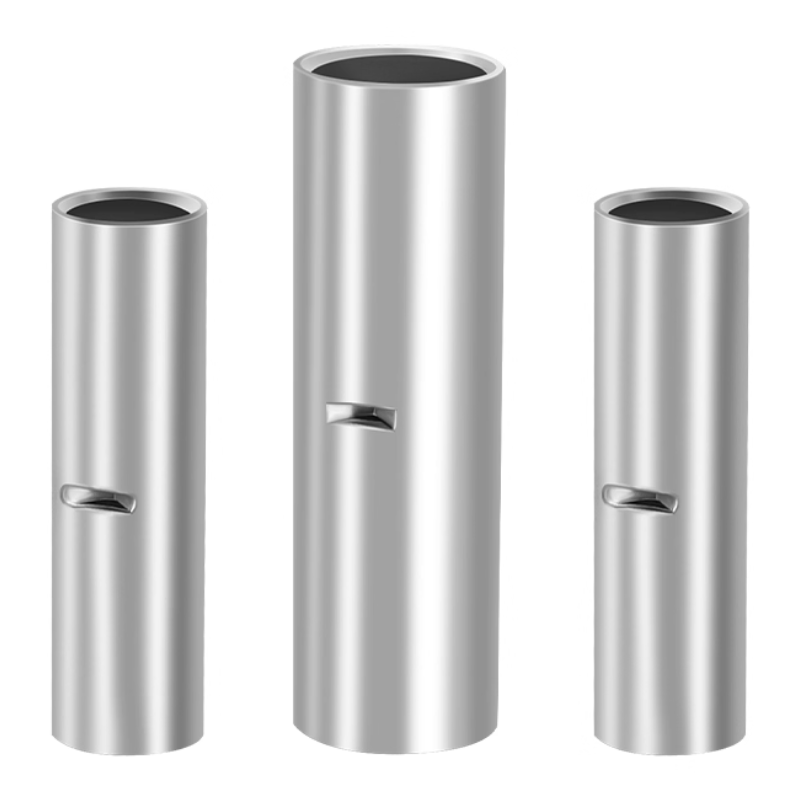

GTY export copper conduit is a copper conductor connection accessory designed specifically for international electrical engineering scenarios. With quality that meets multiple national standards and performance that adapts to global working conditions, it has become the preferred connection component for cross-border power projects and industrial equipment exports.
1、 Core positioning: Meet the needs of export scenarios
Different from conventional copper conduit, the core advantage of GTY series lies in its compliance with international certification and multi regional usage standards, which can meet the electrical specification requirements of different countries and regions, such as:
Compliant with EU CE certification and US UL standards, suitable for industrial equipment and distribution system wiring needs in the European and American markets;
Meets IEC International Electrotechnical Commission standards and is suitable for cross-border power projects in Southeast Asia, the Middle East, and other regions;
Suitable for electrical systems with different voltage levels (110V/220V/380V), compatible with mainstream copper conductor specifications worldwide, and can be used in overseas projects without additional adjustments.
Core performance: adaptable to global working conditions
Wide temperature adaptability: It can work stably in environments ranging from -40 ℃ to 120 ℃, and can withstand both low-temperature conditions in Northern Europe and high-temperature environments in the Middle East, avoiding pipe cracking or loose contact caused by temperature changes;
Strong corrosion resistance: multi-layer nickel plating+passivation treatment, salt spray test can reach more than 500 hours, far exceeding the standard of ordinary copper wire conduit, suitable for strong corrosion scenarios such as overseas coastal power stations and chemical parks;
Compliance guarantee: The material does not contain harmful substances such as lead and cadmium, complies with the EU RoHS environmental directive, meets the green trade requirements of overseas markets, and avoids customs clearance obstacles caused by environmental non-compliance;
Installation universality: Suitable for international universal crimping tools (such as Klein, Greenlee and other brand crimping pliers), without the need for additional customized tools, reducing overseas construction costs and difficulties.
-
