| Brand | Xinyouxiang |
| Model NO. | GRIS8-02 Isolated Relay |
| Rated frequency | 45Hz-65Hz |
| Series | GRIS8 |

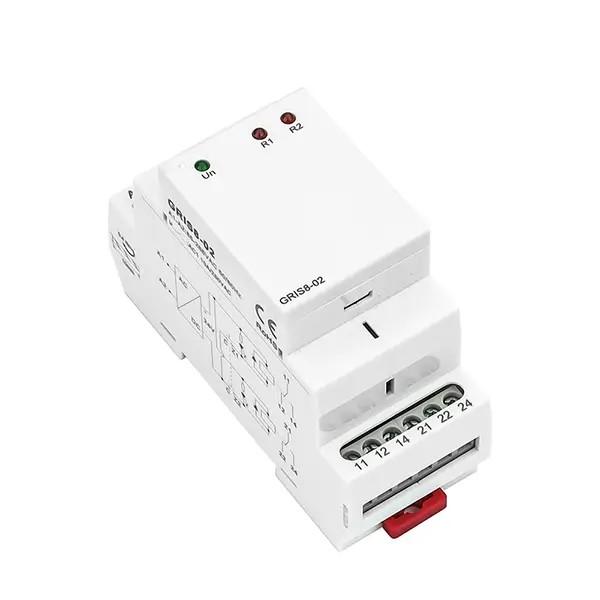

The GRIS8-02 Isolated Relay by GEYA is a high-performance isolation relay engineered for industrial automation and fire safety systems. With its advanced electrical isolation and versatile control capabilities, it is the go-to solution for HVAC systems, elevator controls, access control doors, and PLC interfaces. Its compact DIN rail mounting design ensures seamless integration into a wide range of control environments.
Voltage range: AC85-265V 45-65Hz
Burden: 3VA
Output: 2×SPDT
Switching voltage: 250VAC/24VDC
Current rating: 10A/AC1
Dual-Direction Isolation: Provides comprehensive isolation between input and output, minimizing the risk of system failures.
Superior Interference Resistance: Maintains stable operation even in high electromagnetic interference environments, ensuring system reliability.
Multi-Load Compatibility: Supports parallel control of multiple devices, meeting the demands of complex applications.
Millisecond Response Time: Delivers rapid switching for precise, real-time control.
Wide Temperature Adaptability: Operates flawlessly in extreme conditions, from -25°C to +70°C.
Intuitive Status Indicator: Built-in LED indicator for easy monitoring of relay status
| Model | GRIS8-02 |
| Function | Interface/ Control Relay |
| Supply terminals | A1-A2 |
| Voltage range | AC85-265V 45-65Hz |
| Burden | 3VA |
| Supply indication | green LED |
| Isolation voltage | |
| Supply I/P to I/P Switch | 4VAC |
| Supply I/P to O/P Switch | 4VAC |
| I/P Switch to Relay O/P | 4VAC |
| Output | 2 x SPDT |
| Current rating | 10A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1*107 |
| Electrical life(AC1) | 1*105 |
| Operating temperature | -20℃~+55℃ |
| Storage temperature | -35℃~+75℃ |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP20 |
| Operating position | any |
| Overvoltage cathegory | III |
| Pollution degree | 2 |
| Max.cable size（mm²） | 1*25mm² or 2*1.5mm² 0.4N.m |
| Dimensions | 90mm×18mm×64mm |
| Weight | 120g |
| Standards | GB/T14048.5,IEC60947-5-1 |
