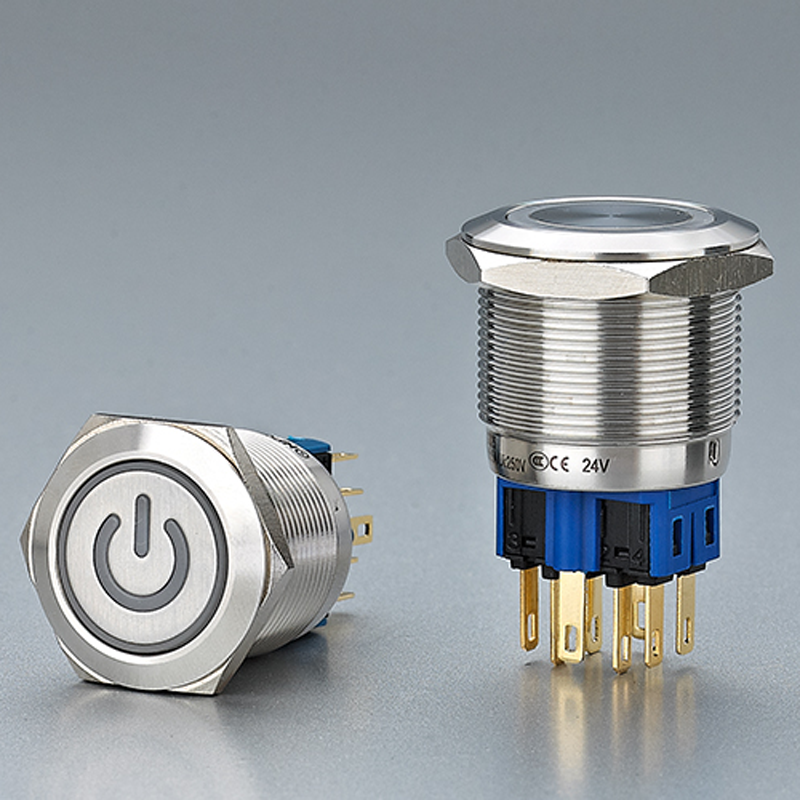

GQ22 Series Metal Push Button Switch

Name: GQ22 Series Metal Push Button Switch
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1367
Price: 7.20 USD
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	GQ22 Series Metal Push Button Switch
operation mode	Momentary and auto reset
cabinet type	stainless steel
installation diameter	22mm
button Head shape	ultra-short type flat round
interface configure	1*C+NO+NC
Certification	CE+CCC
switch rating	250Ui 5A
Mechanical life	≥1000000 cycle
Electrical life	≥50000 cycle
Dielectric strength	1500VAC
Contact resistance	≤50mΩ
Insulation resistance	≥100MΩ(500VDC)
Operating environment	-25 ℃~55℃
Operation pressure	4N
Operation travel	2.5mm
Terminal type	Threaded type
LED color	N/A
LED rated voltage	N/A
lamp type	N/A
Series	GQ22 Series

Description

☆Panel Cutout Dimension φ22，Ui:250V，Ith:5A
☆Classic appearance, Stable performance
☆Complete configuration, support tri-color LED
☆Latching type for gear self-locking structure to improve stability
☆IP65(IP67 made to order ) ,IK10
☆Certificate: CCC/CE

For more information, please read the selection manual. ↓↓↓

Documentation Resource Library

Restricted

GQ22-40 Series metal push button switch selection manual GQ22-40 Series metal push button switch selection manual

Operating Instruction

English

PDF
