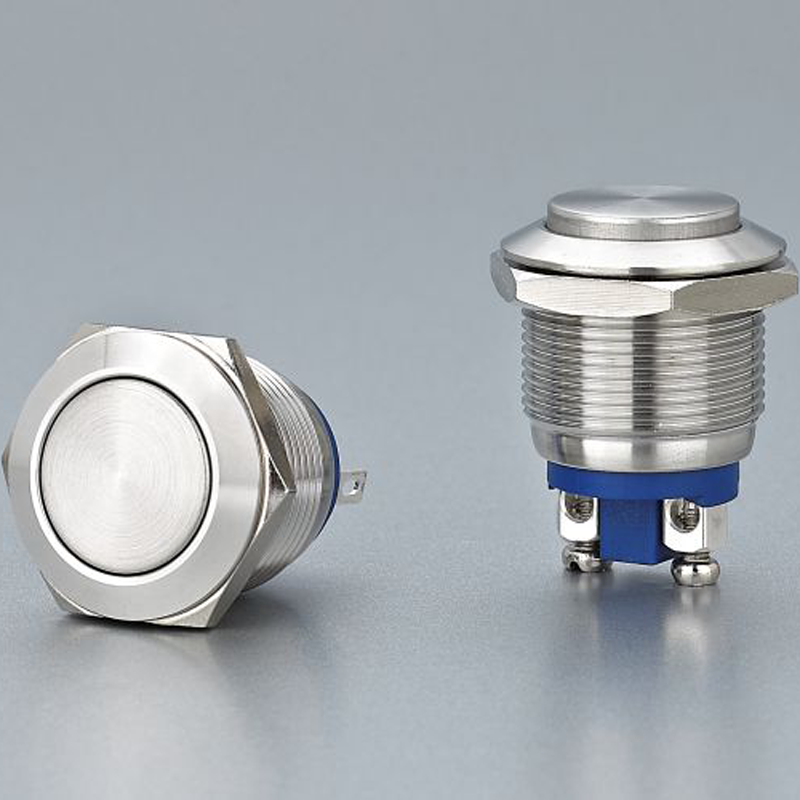

GQ19 Series Metal Push Button Switch

Name: GQ19 Series Metal Push Button Switch
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1366
Price: 3.80 USD
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	GQ19 Series Metal Push Button Switch
operation mode	Momentary and auto reset
cabinet type	stainless steel
installation diameter	19mm
button Head shape	ultra-short type round lump
interface configure	1*C+NO
Certification	CE+CCC
switch rating	DC36V 2A
Mechanical life	≥1000000 cycle
Electrical life	≥50000 cycle
Dielectric strength	1500VAC
Contact resistance	≤50mΩ
Insulation resistance	≥100MΩ(500VDC)
Operating environment	-25 ℃~55℃
Operation pressure	4N
Operation travel	1.5mm
Terminal type	PIN type
LED color	N/A
LED rated voltage	N/A
lamp type	N/A
Series	GQ19 Series

Description

☆Panel Cutout Dimension φ19，Ui:250V，Ith:5A
☆Short body, suitable for various wiring scenarios
☆Supports solder or screw wiring
☆Multiple head options available
☆IP65,IK06
☆Certificate: CCC/CE

For more information, please read the selection manual. ↓↓↓

Documentation Resource Library

Restricted

GQ19 Series metal push button switch selection manual GQ19 Series metal push button switch selection manual

Operating Instruction

English

PDF
