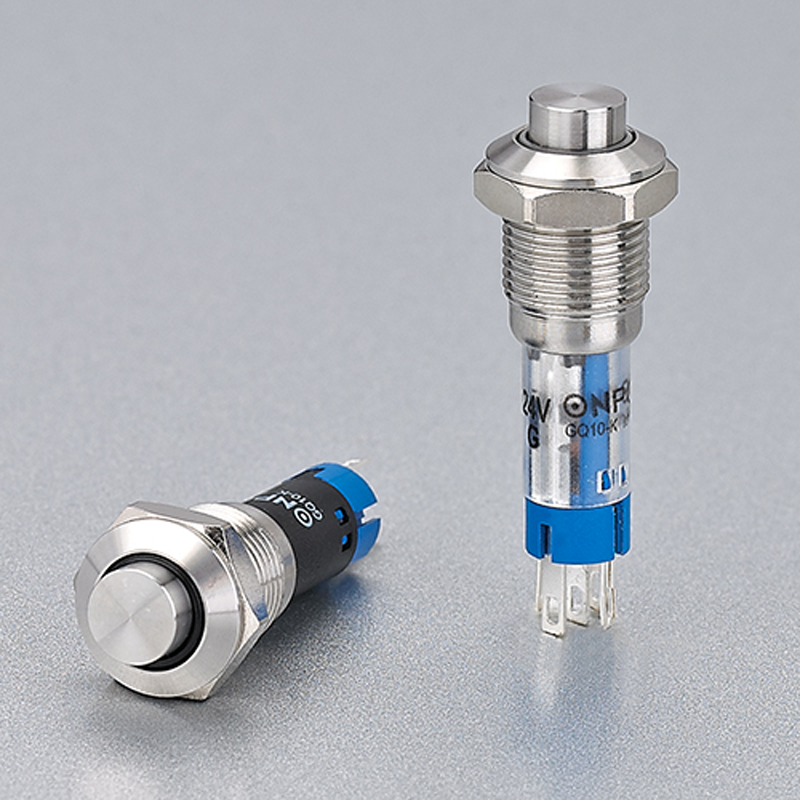

GQ10-K Series Metal Push Button Switch

Name: GQ10-K Series Metal Push Button Switch
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1358
Price: 7.00 USD
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	GQ10-K Series Metal Push Button Switch
operation mode	mechanical self-latching
installation diameter	10mm
button Head shape	round lump
interface configure	1*C+NO
Certification	CE
switch rating	DC24V 0.7A
Mechanical life	≥200000 cycle
Electrical life	≥200000 cycle
Dielectric strength	1000VAC
Contact resistance	≤50mΩ
Insulation resistance	≥100MΩ(500VDC)
Operating environment	-25 ℃~55℃
Operation pressure	1.2N
Operation travel	2.5mm
Terminal type	PIN type
LED color	red/green/blue/yellow/white
LED rated voltage	6V/12V/24V
lamp type	lighting ring
Series	GQ10-K Series

Description

☆Panel Cutout Dimension φ10，DC24V/0.7A
☆Sturdy and robust metal material
☆Operation Mode: Latching / Momentary
☆High flat design for easy triggering
☆Certificate: CE

For more information, please read the selection manual. ↓↓↓
