| Brand | Xinyouxiang |
| Model NO. | DNF1-3 series line fuse holder NH3 Fuse link |
| Rated normal current | 500A |
| Series | DNF1 |

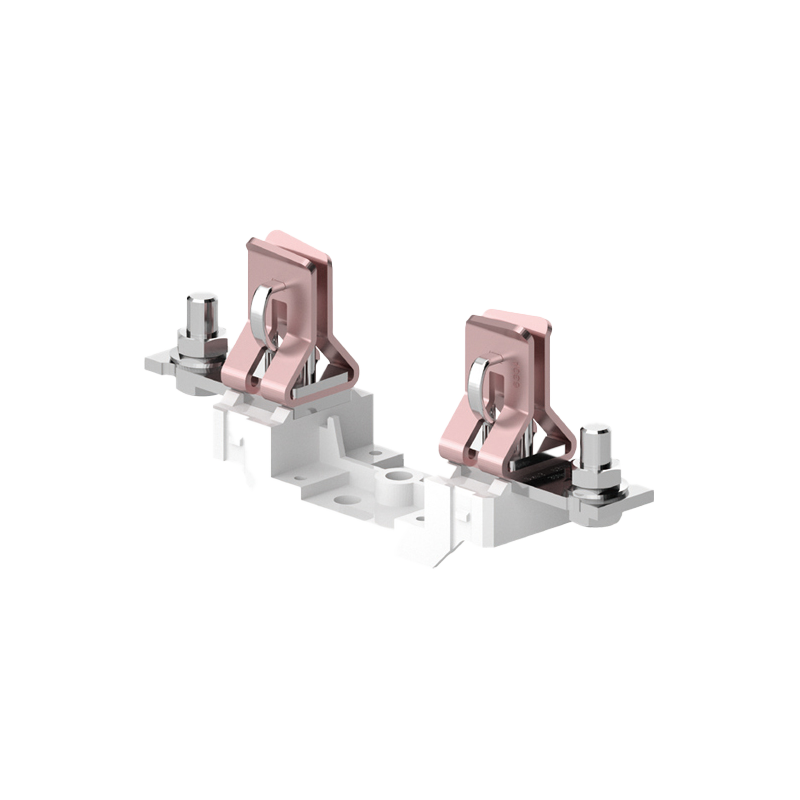

DNF1-3 series fuse base, suitable for AC systems, with a rated voltage of 500V and a rated current of 630A, used for overload and short circuit protection of low-voltage complete equipment. Suitable for 690V voltage scenarios, NH3 exclusive cabinets and multiple universal low-voltage distribution cabinets. The following are specific adaptation information: GGD low-voltage fixed switchgear, MNS pull-out low-voltage switchgear, JP-2 rural network enhanced comprehensive distribution box, photovoltaic small combiner cabinet (440VDC specification), etc
Order No.:DN56330
Model No.:DNF1-3
| Rated Current le In | 630A(500VAC,440VDC)/500A(690VAC) |
| Rated voltage Ue | 500VAC/690VAC/440VDC |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6KV |
| Fuse link size | 3 |
| Feature | 1 Pole, without protective cover |
| Type | Fixed Type |
| Reference Standard | IEC 60269-1,IEC 60269-2,GB/T 13539.2 |
