| Brand | Xinyouxiang |
| Model NO. | DNF1-00 1P Series auto fuse holder NH00 Fuse link |
| Rated normal current | 160A |
| number of poles | 1P |
| Series | DNF1-00 |

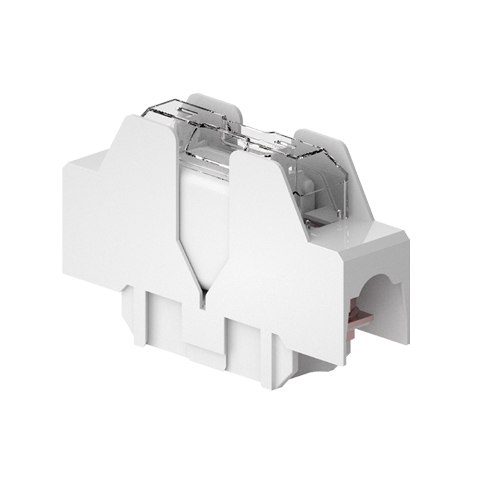

DNF1-00 series fuse base, suitable for AC systems, with a rated voltage of 500V and a rated current of 160A, used for overload and short circuit protection of low-voltage complete equipment. Suitable for multiple NH1 dedicated cabinets and general low-voltage distribution cabinets, with specific information as follows: GGD low-voltage fixed switchgear, MNS pull-out low-voltage switchgear, JP-2 rural network enhanced comprehensive distribution box, photovoltaic small combiner cabinet (440VDC specification), etc
Order No.:DN56301
Model No.:DNF1-00
| Rated Current le In | 160A(500VAC,250VDC)/100A(690VAC) |
| Rated voltage Ue | 500VAC/690VAC/250VDC |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6KV |
| Break Capacity(with Fuse link) | 120KA(500VAC)/50KA(690VAC)/100KA(250VDC) |
| Fuse link Size | 00 |
| Feature | 1Pole,with protective cover |
| Type | Fixed Type |
| Reference Standard | IEC 60269-1,IEC 60269-2,GB/T 13539.2 |
