DEM2D series Din Rail DC Energy Monitoring Meter for EV Charger Metering
Key attributes
| Brand | Wone |
| Model NO. | DEM2D series Din Rail DC Energy Monitoring Meter for EV Charger Metering |
| Rated frequency | 50/60Hz |
| Series | DEM2D102 |
Product descriptions from the supplier
Description
The DIN RAIL DC meter's surface panel is designed with two buttons, through which you can query power data and set parameters. There is a lead seal design on the cover plate of the power terminal cover which protects the wiring and prevents the user from changing the wiring and anti-tamper.
Features
RS485 communication: used for parameter setting, data reading; DTL645 protocol/Modbus Protocol.
DC metering: using shunt sampling, high measurement accuracy; can measure DC power, current, voltage.
Alarm function: Over-current alarm: When the current exceeds the CT1 value set by the meter, an alarm event occurs, and the alarm light on the electrical surface panel lights up (yellow light).
At the same time, the value of the corresponding alarm status register will change, and the user can read this register through communication to determine whether an over-current alarm has occurred.
Display: LCD with backlight ,Support Various parameters display,energy data and Instantaneous parameters.
Firmware upgrade: RS485 local upgrade.
Specifications
| Main |
|
|---|---|
| Range | DEM2D102 |
| Product or Componet Type | Energy meter |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Three Phase |
| Type of measurement | ---- |
| Metering type | Measurement |
| Device Application | Energy Charge |
| Accuracy class | Active power 1.0 |
| Rated Current | 2000A |
| Rated Voltage | DC 5V~1000V |
| Network Frequency | 50-60Hz |
| Technology Type | Electronic |
| Display Type | LCD display(LCD 6+2 = 999999.99kWh) |
| Impulse Constant | 1000imp/kWh(LED) 1000imp/kvarh |
| Maximum value measured | 99999.99kWh |
| Tariff input | Tariff |
| Communication port protocol | Modbus and DTL645 |
| Communication port support | RS485 |
| Local signalling | ------ |
| Number of inputs | ------- |
| Number of Outputs | -------------- |
| Output voltage | ---- |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Connections - terminals | ------- |
| Standards | IEC62052-11/IEC62053-21 |
| Environment |
|
|---|---|
| IP degree of protection | IP54 |
| Relative humidity | ≤95% |
| Ambient air temperature for operation | -25…70 °C |
| Ambient Air Temperature for Storage | --25…70 °C |
| Operating altitude | --- |
| Dimensions | 73mm*36mm*90mm |
| Packing Units |
|
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 92mm |
| Package 1 Width | 38mm |
| Package 1 Length | 75mm |
| Package 1 Weight | 1.000kg |

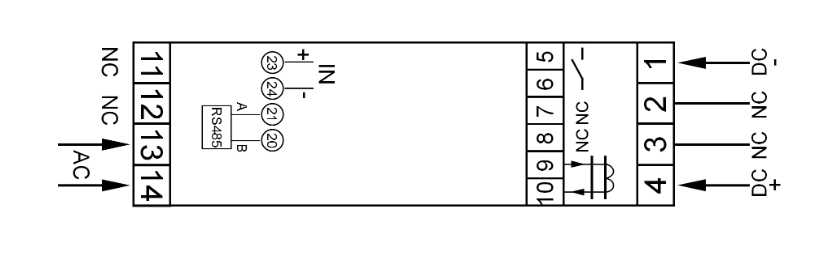

Connection Diagram

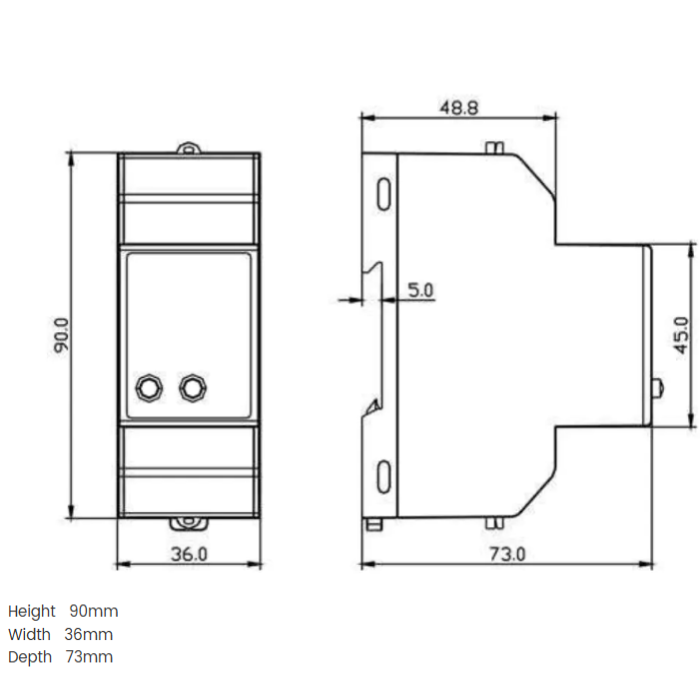

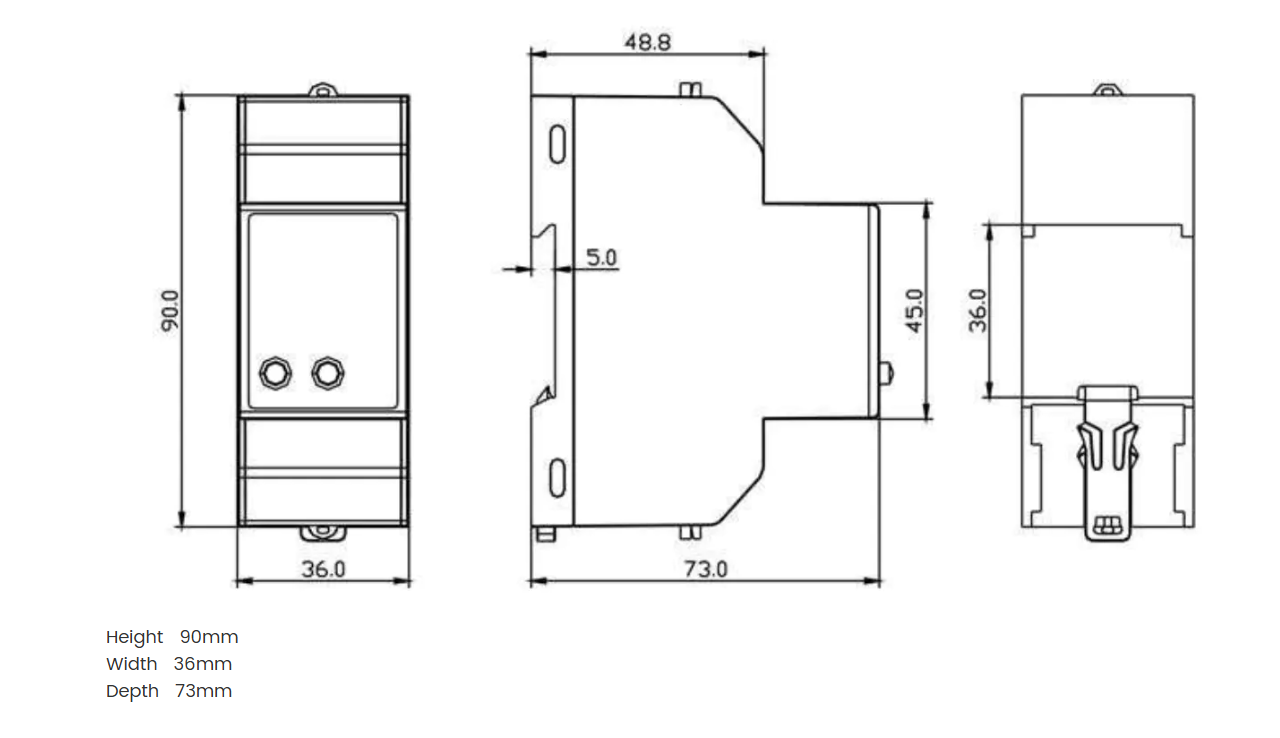

Dimensions
Online store
On-time delivery rate
Response time
100.0%
≤4h
