CYECT3-11W Electronic Current Transformer
Key attributes
| Brand | Wone Store |
| Model NO. | CYECT3-11W Electronic Current Transformer |
| Rated frequency | 50/60Hz |
| Rated insulation voltage | 75kV |
| Series | CYECT |
Product descriptions from the supplier
Product Overview
The products accord with standard IEC60044-8, GB/T20840.8-2007, and can meet customer’s other special requirement. The products use Rogowski winding to test current, mainly used in ≤ 10kV switchgear, match with electric instrument, digital measure and protective equipment, can at the same time realize multi-functions such as measure, control, protection and data transmission etc, secondary open circuit can not produce high voltage.
Main technical parameter
Rated primary voltage : 11kV
Rated primary current : 50-2000A
Rated secondary voltage : 4V(measure)，200mV(protective)
Rated Burden>10kΩ
Rated digital output : 0x2D41(measure)0x01CF(protective)
Accuracy for measuring winding : 0.2
Accuracy for protection winding : 5P20/5TPE
Rated frequency : 50Hz
Rated insulation level : 12/42/75kV
Rated short time thermal current : 50-200: 150Ipr, 300-2000A :31.5kA/1S
Rated dynamic current : 50-200A :375Ipr, 300-2000A :80kA
Ambient temperature : -5℃ -40℃ (indoor), -25℃-50℃(outdoor)
Ambient humidity : ≤RH95%(25℃ )
Altitude : ≤ 2000m( Can devise according customer’s requirement)
Installation site : indoor/ outdoor

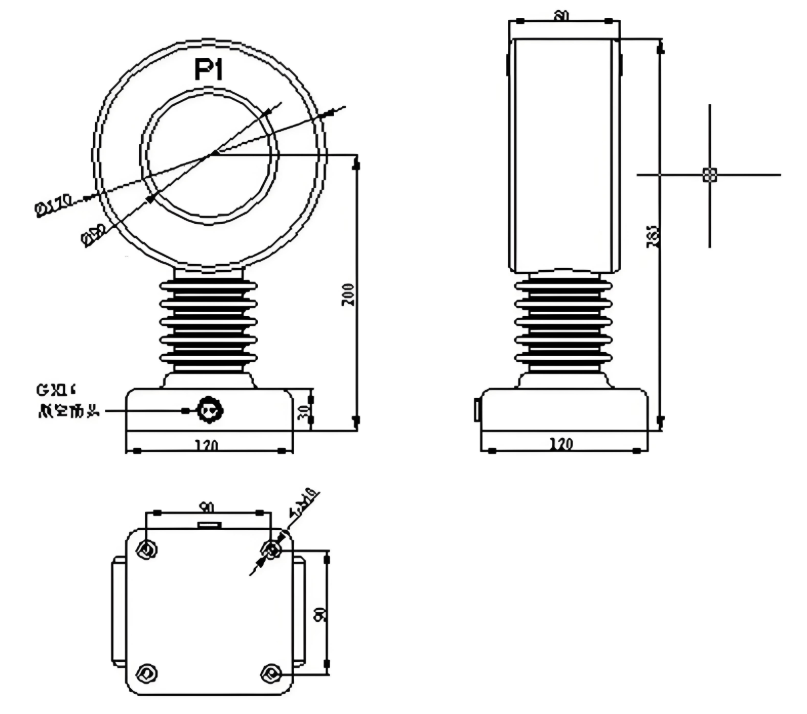

Outline drawing
