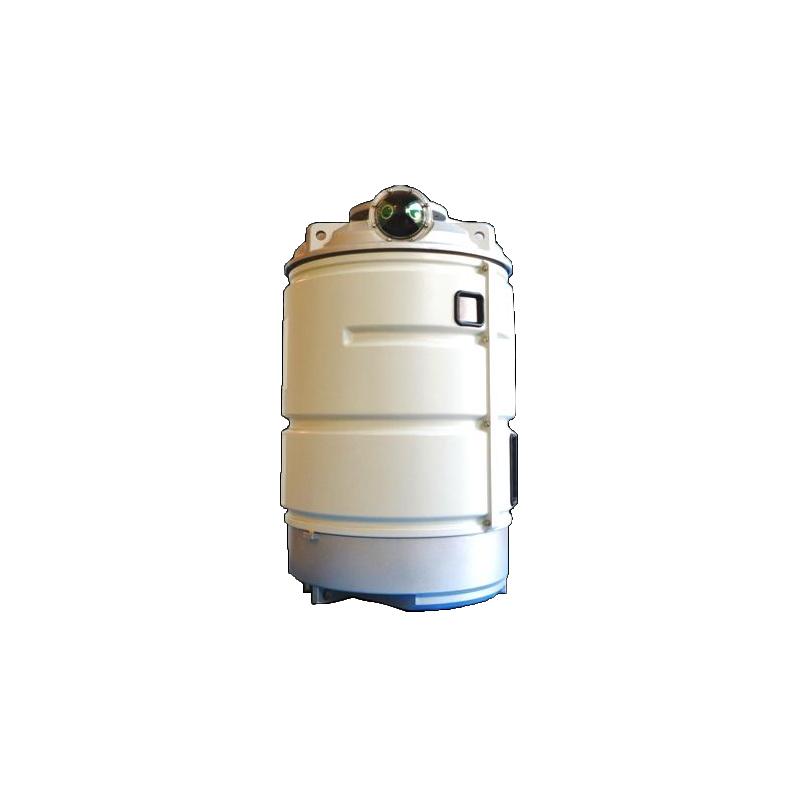

CYD-8 Hydraulic Disc Spring Operating Mechanism
Key attributes
| Brand | Switchgear parts |
| Model NO. | CYD-8 Hydraulic Disc Spring Operating Mechanism |
| Rated voltage | 330kV |
| Series | CYD-8 |
Product descriptions from the supplier
The main hydraulic components of the CYD-8 series hydraulic disc spring actuator include combination disc springs, working cylinders, control valves, oil pump motors, energy storage cylinders, stroke switches, safety valves, high-pressure relief valves, low-pressure oil tanks, connecting seats, and other components; Using disc springs as energy storage components, disc springs have excellent force characteristics, are not affected by environmental temperature, store large amounts of energy, and have smooth force characteristics. Its structure adopts an integrated module design without pipeline connections. Adopting advanced sealing structure design, advanced dynamic and static sealing systems, and internal integrated hydraulic buffering system, the system has high pressure, compact structure, high operating power, stable and reliable performance. Mainly suitable for high voltage and high current GIS and tank circuit breakers with voltage levels of 252kV-1000KV.

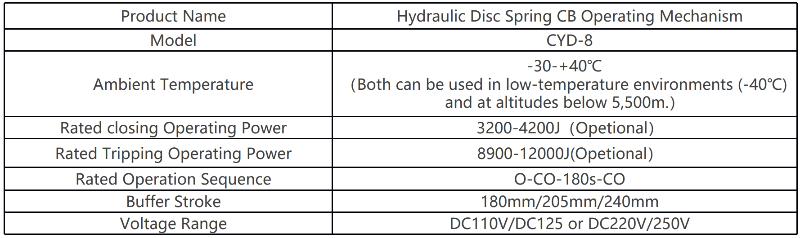

Product Technical Parameters
1. Mechanism stroke 205 ± 1mm
2. Rated power of motor: 1300W
3. Spectral time 27ms ± 1ms
4. Closing time 85 ± 5ms
5. Segmentation speed 7.8 ± 0.5m/s
6. Closing speed 3.2-3.5m/s
7. Oil pump starting oil pressure: 52.8 ± 2.5MPa
8. Stop oil pressure of oil pump: 53.1 ± 2.5MPa
9. Safety valve opening pressure: 53.7 ± 2.5MPa
Application scenarios
General: Indoor/Outdoor
Surrounding air humidity: upper limit+60 ℃, lower limit -30 ℃.
The altitude shall not exceed 3000m.
Wind pressure not exceeding 700Pa (equivalent to a wind speed of 34m/s)
No fire, explosion hazard, serious pollution, corrosive gas, or severe vibration.
Special: can be customized according to actual needs, such as high altitude, low temperature, hot, humid, etc.
