Current Monitoring Relay GRI8-05A 05B
Key attributes
| Brand | Switchgear parts |

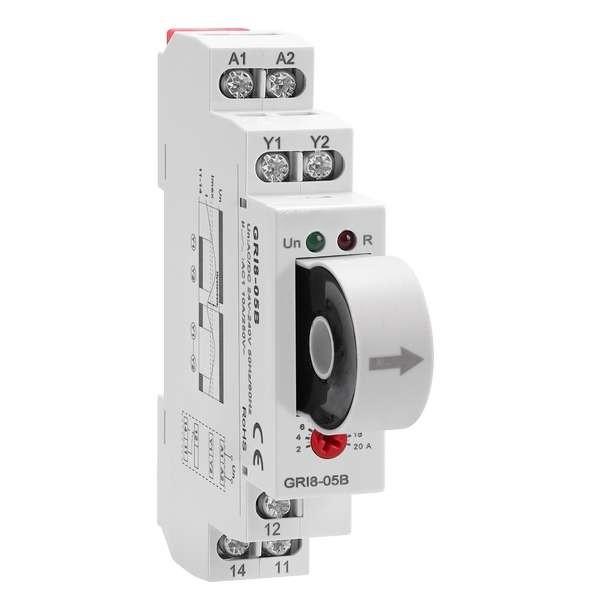

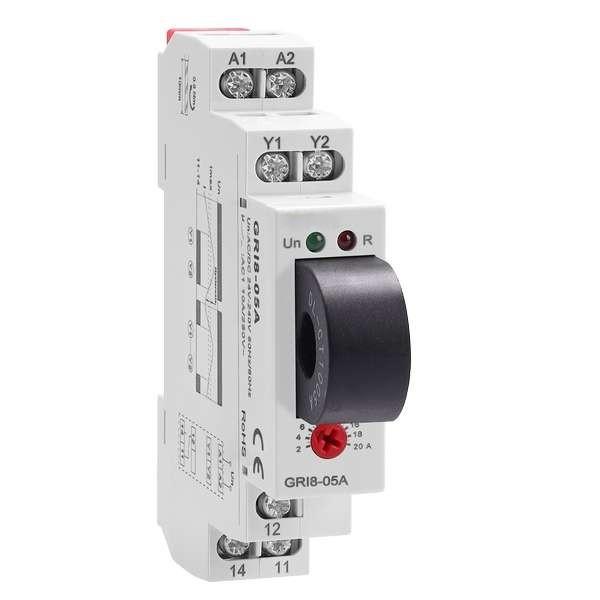

| Model NO. | Current Monitoring Relay GRI8-05A 05B |
| Rated frequency | 50/60Hz |
| Series | GRI8 |
Product descriptions from the supplier
The GRI8-05 series is a high-performance current monitoring relay that uses isolated current mutual inductance technology. Its working power supply is compatible with AC/DC 24~240V wide voltage. Real time display of operating status through LED, combined with 35mm standard card rail installation method, can be quickly integrated into various distribution systems to achieve accurate judgment and rapid response to current anomalies.
This series of relays is suitable for the following key areas:
1. Abnormal monitoring of equipment current
Real time detection of overcurrent/undercurrent faults in motors, transformers, frequency converters, and other equipment to prevent winding overheating or no-load losses.
2. Security protection of power distribution system
Provide current over limit protection for distribution cabinets and branch circuits to avoid safety hazards caused by line overload.
3. Energy Management System
Integrated into the energy consumption monitoring network to achieve load operation status analysis and abnormal working condition warning.
4. Automated production line protection
Ensure the stable operation of key equipment on the production line within the set current range and reduce the risk of unexpected shutdowns.
5. Extended monitoring scheme
By connecting an external transformer, high current systems (such as generator sets, bus ducts, etc.) can be monitored

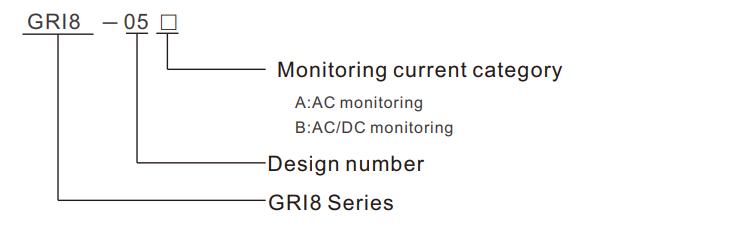

Technical parameters
| Technical parameters | GRI8-05A | GRI8-05B |
| Function | AC measurement | AC/DC measurement |
| Supply terminals | A1-A2 | |
| Rated supply voltage | AC/DC 24V-240V | |
| Rated supply frequency | 50/60Hz,0 | |
| Burden | max 1.5VA | |
| Supply voltage tolerance | -15%;+10% | |
| Current range | 2A-20A | |
| Current frequency | AC 50Hz | AC 50Hz, DC |
| Current adjustment | potentiometer | |
| Time delay | ≤0.1s | |
| Supply indication | green LED | |
| Setting accuracy | 0.1 | |
| Hysteresis | 0.05 | |
| Output | 1×SPDT | |
| Current rating | 10A(AC1) | |
| Switching voltage | 250VAC/24VDC | |
| Min. breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Operating temperature | -20℃ to+55℃（-4℉to131℉） | |
| Storage temperature | -35℃ to+75℃（-22℉to158℉） | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage category | III | |
| Pollution degree | 2 | |
| Max.cable size(mm²) | 1×2.5mm²or2x1.5mm² 0.8N·m | |
| Dimensions | 90mmx18mmx64mm | |
| Weight | 73g | 75g |
