Copper wire terminal with peephole
Key attributes
| Brand | Switchgear parts |
| Model NO. | Copper wire terminal with peephole |

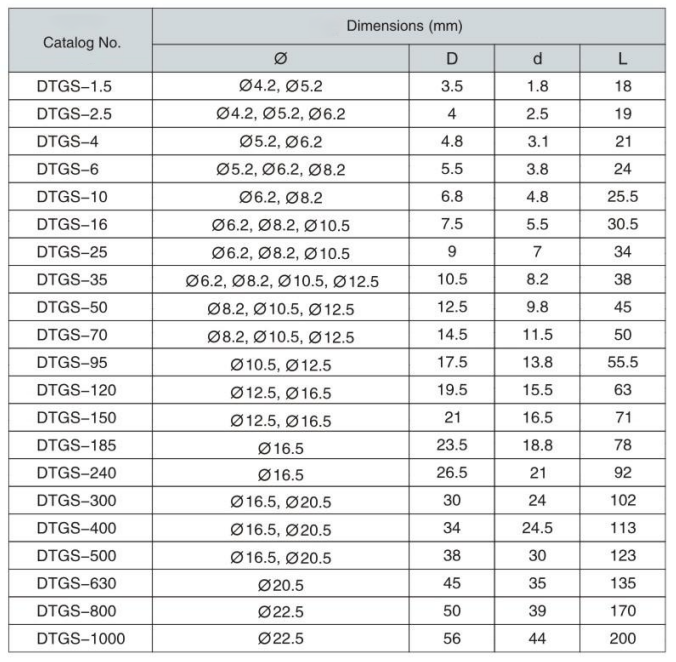

| Nominal cross-sectional area | 10mm² |
| Series | DTGS |
Product descriptions from the supplier

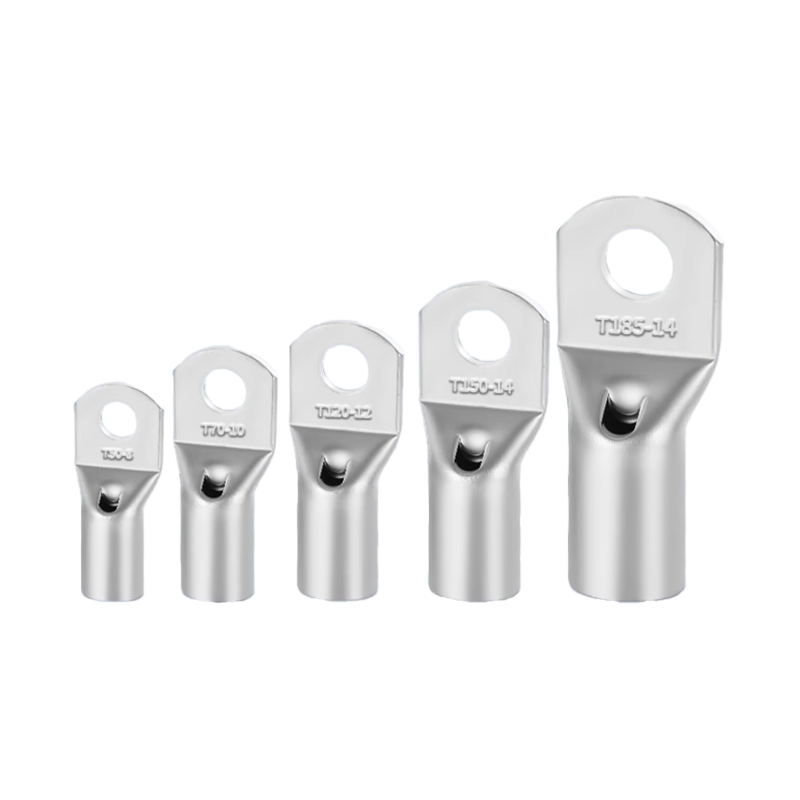

The peephole copper terminal is a functional terminal that adds a "peephole observation structure" on the basis of traditional copper terminal. The core uses transparent/hollow peepholes in the terminal crimping section or connection section to achieve visual inspection of wire insertion depth and crimping status, avoiding poor contact or heating faults caused by shallow wire insertion or inadequate crimping. It is made of high-purity copper as the substrate, with the advantages of low impedance conductivity and convenient quality inspection. It is widely used in scenarios such as power distribution engineering, precision equipment, and new energy systems that require high connection reliability. It is a key component for improving wiring safety and maintenance efficiency
Online store
On-time delivery rate
Response time
100.0%
≤4h
Company overview
Workplace: 1000m²
Total staff:
Highest Annual Export(usD): 300000000
Services
Business Type: Sales
Main Categories: Low Voltage Electrical Apparatus/Instrument meters/Production equipment/Electrical fittings/Equipment Parts
Whole life care manager
Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.
The equipment supplier has passed platform qualification certification and technical evaluation,
ensuring compliance, professionalism, and reliability from the source.
