Copper braided wire

Name: Copper braided wire
Brand: Zhejiang Xinyouxiang Electric Technology Co., Ltd.
SKU: 2269
Availability: InStock

Zhejiang Xinyouxiang Electric Technology Co., Ltd.

2yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Xinyouxiang
Model NO.	Copper braided wire
Nominal cross-sectional area	25mm²

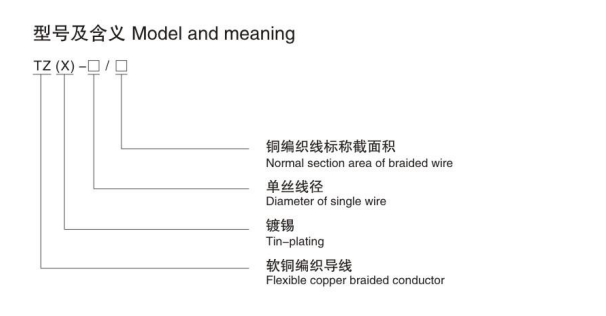

Series	TZX

Description

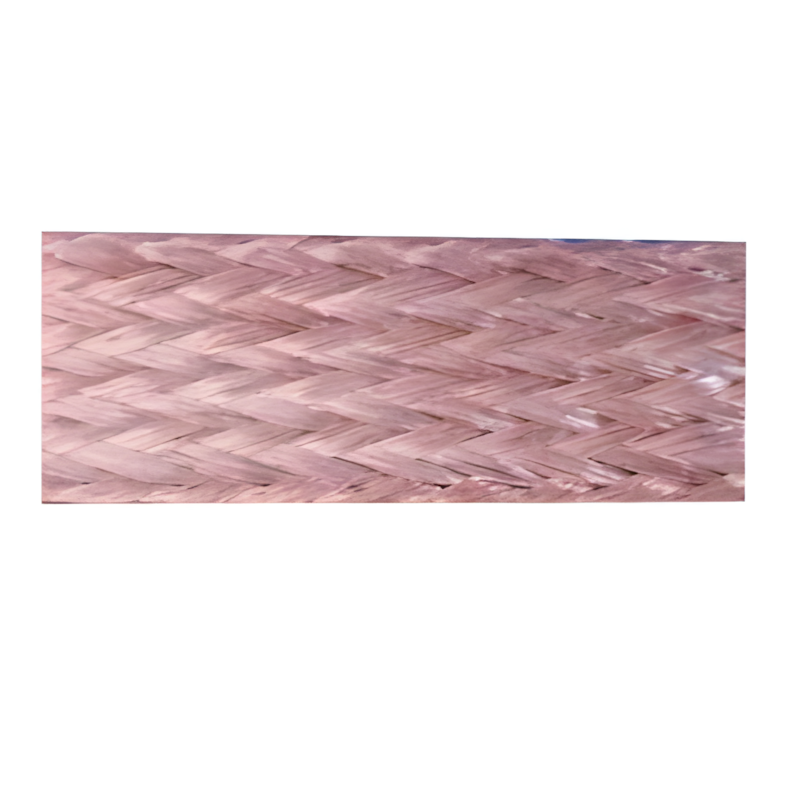

Copper braided wire can be used as a flexible connection for electrical devices, switchgear, electric furnaces, and batteries.

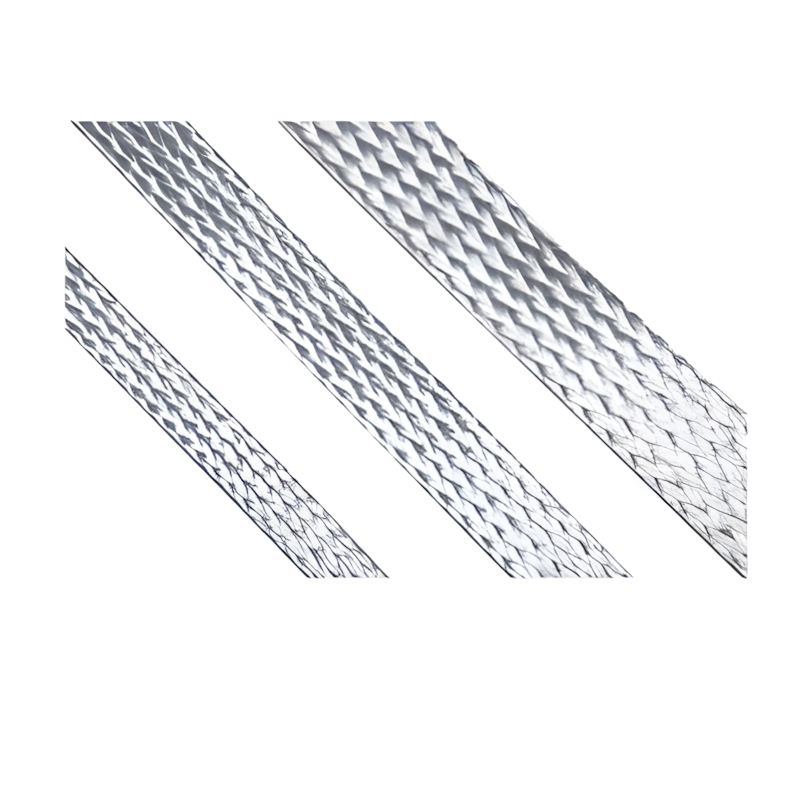

Copper braided wire is made of high-quality round copper wire (0.05, 0.07, 0.10, 0.12, 0.15, 0.20, 0.25) or tin plated round copper wire (0.10, 0.12, 0.15) woven in multiple strands (13, 16, 24, 36, 40, 48, 64, 96 ingots) through single-layer or multi-layer weaving.
The DC resistivity (20 ℃) of copper braided wire is not greater than 0.022Q.mm/m, and the DC resistivity (20 ℃) of tin plated copper braided wire is not greater than 0.0234Q.mm/m. Complies with JB/T6313.2-1992 standard
Please refer to the table for specific model specifications

Copper braided wire

Standard Cross - section ( $mm^{2}$ )	Calculating Cross - section ( $mm^{2}$ )	Structure (layers × strands × single - wire diameter (mm))	Outer dimension - Width (mm) (Width <=)	Outer dimension - Thickness reference (mm) (Thickness <=)	Calculating weight (Kg/km)
2	2.12	$24 × 5 × 1/0.15$	5.0	0.8	21
2.5	2.54	$24 × 6 × 1/0.15$	6.0	0.8	25.4
4	4.24	$24 × 10 × 1/0.15$	7.0	1.2	42.2
	4.14	$32 × 8 × 1/0.15$	7.5	1.0	41.2
6	6.24	$32 × 11 × 1/0.15$	10	1.2	64.5
	6.36	$36 × 10 × 1/0.15$	11.0	1.2	63.80
8	8.45	$48 × 10 × 1/0.15$	13.0	1.2	85
10	10.7	$36 × 16 × 1/0.15$	14.0	1.5	108
	10.60	$40 × 15 × 1/0.15$	15.0	1.5	106
	10.18	$48 × 12 × 1/0.15$	16.0	1.5	102
12	12.72	$48 × 15 × 1/0.15$	18.0	1.8	128
16	16.96	$48 × 20 × 1/0.15$	22.0	1.8	170
20	21.20	$48 × 25 × 1/0.15$	25.0	1.8	212.50
25	25.45	$48 × 30 × 1/0.15$	28.0	1.8	254
25	25.45	$48 × 15 × 2/0.15$	20.0	3.5	254
35	33.93	$64 × 30 × 1/0.15$	40.0	2.0	340
35	33.93	$48 × 20 × 2/0.15$	26.0	3.5	340
50	50.87	$64 × 45 × 1/0.15$	50.0	2.0	510
50	50.87	$48 × 30 × 2/0.15$	30.0	3.5	510
50	50.89	$48 × 20 × 3/0.15$	28.0	4.8	510
75	76.34	$80 × 54 × 1/0.15$	60.0	2.0	765
75	76.34	$48 × 30 × 3/0.15$	32.0	5.0	765
95	95.00	$48 × 28 × 4/0.15$	35.0	6.0	950
100	100.09	$96 × 59 × 1/0.15$	100	2.0	1000
120	127.23	$48 × 30 × 5/0.15$	37.0	7.0	1271.80
