| Brand | POWERTECH |
| Model NO. | Compact Prefabricated Substation (European Type) 100 - 1250kVA |
| Rated voltage | 10kV |
| Series | YB-10 |
The Prefabricated Substation is an integrated modular power distribution solution that assembles high‑voltage switchgear, transformers and low‑voltage switchgear into one compact unit. This Compact Prefabricated Substation features highly integrated layout and reliable operation, widely applied in urban high‑rise buildings, residential communities, industrial parks, medium and small factories, mining areas, highway projects and temporary construction sites.
With high integration and compact structure, the Prefabricated Substation delivers stable performance, easy maintenance and convenient mobility. The Compact Prefabricated Substation only occupies 1/10–1/5 floor space compared with traditional civil substations of the same capacity, greatly simplifying design work, reducing construction volume and cutting overall project cost.
The Prefabricated Substation is highly flexible in system matching, adaptable to ring network distribution, dual power supply and radial terminal distribution modes. As an advanced modern power distribution solution, the Compact Prefabricated Substation is widely adopted in urban and rural power grid renovation and upgrading, becoming mainstream compact substation equipment for new‑generation power systems.

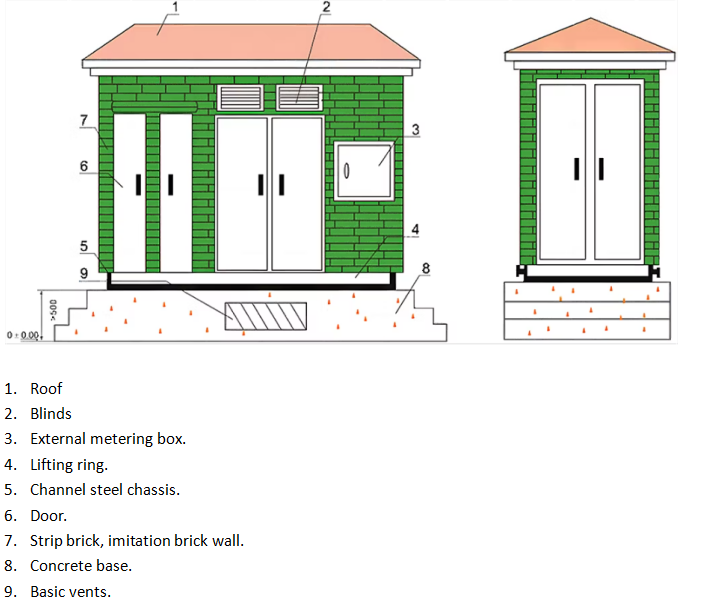

The Prefabricated Substation adopts a three‑compartment integrated layout: high‑voltage room, transformer room and low‑voltage room, ensuring independent operation, safe isolation and flexible configuration of the Compact Prefabricated Substation.
The Prefabricated Substation supports ring network, terminal and dual power supply operation modes.
Optional high‑voltage metering configuration meets precise energy measurement demands.
Compact rational layout with complete anti‑misoperation interlock ensures safe running of the Compact Prefabricated Substation.
The Prefabricated Substation is compatible with both oil‑immersed and dry‑type transformers for flexible selection.
Optional rail mounting design enables easy transformer replacement and maintenance through side doors.
Automatic temperature control ventilation (natural + forced air) keeps the Compact Prefabricated Substation operating steadily under varying load conditions.
Customizable panel and cabinet structure adapts to diverse power distribution demands of the Prefabricated Substation.
Integrates power distribution, lighting control, reactive power compensation and energy metering in one unit.
Optimizes power supply management efficiency and improves overall power quality for the Compact Prefabricated Substation.
Items |
Unit |
High voltage equipment |
Transformer |
Low voltage equipment |
|---|---|---|---|---|
Rated voltage |
kV |
10 |
10/0.4 |
0.4 |
Rated current |
A |
630 |
- |
100 - 2500 |
Rated frequency |
Hz |
50 |
50 |
50 |
Rated capacity |
kVA |
- |
100 - 1250 |
- |
Rated thermal stable current |
kA |
20/45 |
- |
30/1S |
| Items | Unit | High voltage equipment | Transformer | Low voltage equipment |
|---|---|---|---|---|
| Rated dynamic stable current (peak value) | kA | 50 | - | 63 |
| Rated making short-circuit current (peak value) | kA | 50 | - | 15 - 30 |
| Rated breaking short-circuit current | kA | 31.5(Fuse) | - | - |
| Rated breaking load current | A | 630 | - | - |
| 1min power frequency withstand voltage | kV | Phase to phase 42 Phase to earth 42 Fracture 48 |
35/28(5min) | 20/2.5 |
| Lightning impulse withstand voltage | kV | Phase to phase 75/ Phase to earth 75/ Fracture 85 |
75 | - |
| Protection level | - | IP23 | IP23 | IP23 |
| Noise level | dB | - | Oil styles≤55 Dry styles≤65 |
- |
| Number of circuits | pcs | 1 - 6 | 2 | 4 ~ 30 |
| Maximum reactive power compensation amount on low voltage | kvar | - | - | 300 |
Applicable Service Conditions
The Prefabricated Substation is suitable for outdoor fixed installation, adapting to conventional atmospheric environment, temperature variation and general industrial pollution.
The Compact Prefabricated Substation can operate reliably in suburban, roadside, factory area and community outdoor environments, with good dustproof, rainproof and anti‑corrosion performance.
The Prefabricated Substation meets standard seismic and wind resistance requirements, suitable for conventional altitude and outdoor open‑air layout scenarios.
