BSMJ Self-healing low voltage shunt capacitor
Zhejiang Wone IT Service Co., Ltd...
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Switchgear parts |
| Model NO. | BSMJ Self-healing low voltage shunt capacitor |
| Rated voltage | 0.25Kv |
| Rated frequency | 50/60Hz |
| Series | BSMJ |
Product descriptions from the supplier
Description
Application
Self healing low voltage shunt power capacitor was used in 50Hz and 6oHz power system , it mainly improver power factor, reduce reactive power loss, improve voltage quality. Encavate transformer quantity and so on. It is best saving power products which company strong recommend and work
This product meets the standard: GB/T 12747-2004, IEC60831-1996
Main Technical Date
| Model | Rated Volt. (KV) | Rated Capacity (Kvar) | Rated Capacity (μF) | Rated Current (A) |
|---|---|---|---|---|
| 0.18-10-1 | 0.18 | 10 | 983.0 | 55.6 |
| 0.18-15-1 | 0.18 | 15 | 1475.0 | 83.3 |
| 0.18-20-1 | 0.18 | 20 | 1966.0 | 111.0 |
| 0.18-25-1 | 0.18 | 25 | 2458.0 | 139.0 |
| 0.25-5-1 | 0.25 | 5 | 255.0 | 20 |
| 0.25-7.5-1 | 0.25 | 7.5 | 382.0 | 30 |
| 0.25-10-1 | 0.25 | 10 | 510.0 | 40 |
| 0.25-15-1 | 0.25 | 15 | 764.0 | 60 |
| 0.25-20-1 | 0.25 | 20 | 1019.0 | 80 |
| 0.25-25-1 | 0.25 | 25 | 1274.0 | 100 |
| 0.25-30-1 | 0.25 | 30 | 1529.0 | 120 |
| 0.4-10-1 | 0.4 | 10 | 198.9 | 25 |
| 0.4-12-1 | 0.4 | 12 | 238.7 | 30 |
| 0.4-15-1 | 0.4 | 15 | 298.4 | 37.5 |
| 0.4-16-1 | 0.4 | 16 | 318.3 | 40 |
| 0.4-18-1 | 0.4 | 18 | 358.1 | 45.0 |
| 0.4-20-1 | 0.4 | 20 | 397.9 | 50 |
| 0.4-25-1 | 0.4 | 25 | 497.4 | 62.5 |
| 0.4-30-1 | 0.4 | 30 | 596.8 | 75 |
| 0.4-35-1 | 0.4 | 35 | 696.3 | 87.5 |
| 0.4-40-1 | 0.4 | 40 | 796.2 | 100 |
| 0.4-45-1 | 0.4 | 45 | 895.2 | 112.5 |
| 0.4-50-1 | 0.4 | 50 | 995.2 | 125 |
| 0.4-60-1 | 0.4 | 60 | 1194.3 | 150 |
| 0.45-10-1 | 0.45 | 10 | 157.2 | 22.2 |
| 0.45-12-1 | 0.45 | 12 | 188.6 | 26.7 |
| 0.45-15-1 | 0.45 | 15 | 235.8 | 33.3 |
| 0.45-16-1 | 0.45 | 16 | 251.5 | 35.6 |
| 0.45-18-1 | 0.45 | 18 | 282.9 | 40 |
| 0.45-20-1 | 0.45 | 20 | 314.4 | 44.4 |
| 0.45-25-1 | 0.45 | 25 | 393.2 | 55.6 |
| 0.45-30-1 | 0.45 | 30 | 471.8 | 66.7 |
| 0.45-35-1 | 0.45 | 35 | 550.2 | 77.8 |
| 0.45-40-1 | 0.45 | 40 | 629.1 | 88.9 |
| 0.45-45-1 | 0.45 | 45 | 707.4 | 100.0 |
| 0.45-50-1 | 0.45 | 50 | 786.3 | 111.1 |
| 0.45-60-1 | 0.45 | 60 | 943.6 | 133.3 |

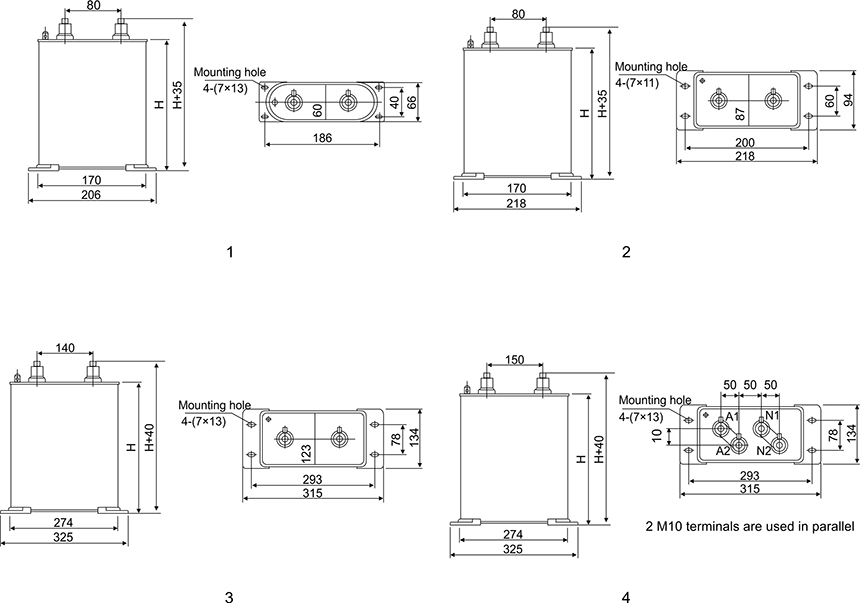

| Model | H(mm) | terminal | Drawing No. |
|---|---|---|---|
| 0.18-10-1 | 220 | M6 | 2 |
| 0.18-15-1 | 220 | M8 | 3 |
| 0.18-20-1 | 220 | M8 | 3 |
| 0.18-25-1 | 290 | M8×2 | 3 |
| 0.25-5-1 | 130 | M6 | 1 |
| 0.25-7.5-1 | 180 | M8 | 1 |
| 0.25-10-1 | 210 | M8 | 1 |
| 0.25-15-1 | 260 | M8 | 2 |
| 0.25-20-1 | 330 | M10 | 2 |
| 0.25-25-1 | 345 | M10 | 2 |
| 0.25-30-1 | 220 | 2×M10 | 3 |
| 0.4-10-1 | 180 | M6 | 2 |
| 0.4-12-1 | 180 | M6 | 2 |
| 0.4-15-1 | 210 | M8 | 2 |
| 0.4-16-1 | 210 | M8 | 2 |
| 0.4-18-1 | 245 | M8 | 2 |
| 0.4-20-1 | 245 | M8 | 2 |
| 0.4-25-1 | 210 | M8 | 2 |
| 0.4-30-1 | 260 | M8 | 2 |
| 0.4-35-1 | 260 | M8 | 2 |
| 0.4-40-1 | 330 | M10 | 2 |
| 0.4-45-1 | 220 | 2×M10 | 2 |
| 0.4-50-1 | 220 | 2×M10 | 2 |
| 0.4-60-1 | 220 | 2×M10 | 2 |
| 0.45-10-1 | 180 | M6 | 2 |
| 0.45-12-1 | 180 | M6 | 2 |
| 0.45-15-1 | 210 | M8 | 2 |
| 0.45-16-1 | 210 | M8 | 2 |
| 0.45-18-1 | 210 | M8 | 2 |
| 0.45-20-1 | 210 | M8 | 2 |
| 0.45-25-1 | 210 | M8 | 2 |
| 0.45-30-1 | 210 | M8 | 2 |
| 0.45-35-1 | 260 | M10 | 2 |
| 0.45-40-1 | 260 | M10 | 2 |
| 0.45-45-1 | 220 | M10 | 3 |
| 0.45-50-1 | 220 | 2×M10 | 3 |
| 0.45-60-1 | 220 | 2×M10 | 3 |
Note: Other special specification models supply according to user requirements
