Battery Internal Resistance Tester
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | WDBT-8612 Battery Internal Resistance Tester |
| Voltage range | 0.000v--25v |
| Measurement range | 0.000mΩ-99.999mΩ |
| Series | WDBT-8612 |
Product descriptions from the supplier
Description
Description
The battery internal resistance tester is a digital storage multi-function portable test instrument that can quickly and accurately measure battery operating state parameters. The instrument can display and record important battery parameters such as voltage, internal resistance, connecting strip resistance, etc. of multiple groups of batteries through on-line test, accurately and effectively determine the good condition of the battery, and can form an intelligent test equipment together with a computer and special battery data analysis software. Further track the decay trend of the battery, and give an alarm in advance, so as to facilitate the engineering and management personnel to deal with it as appropriate.

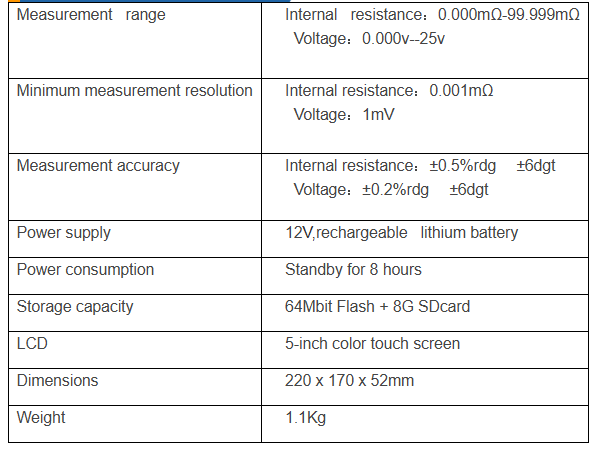

Specifications
