ALS Series fan-shaped aluminum terminal block (tube material)
Key attributes
| Brand | Switchgear parts |
| Model NO. | ALS Series fan-shaped aluminum terminal block (tube material) |
| Nominal cross-sectional area | 70mm² |
| Series | ALS |
Product descriptions from the supplier

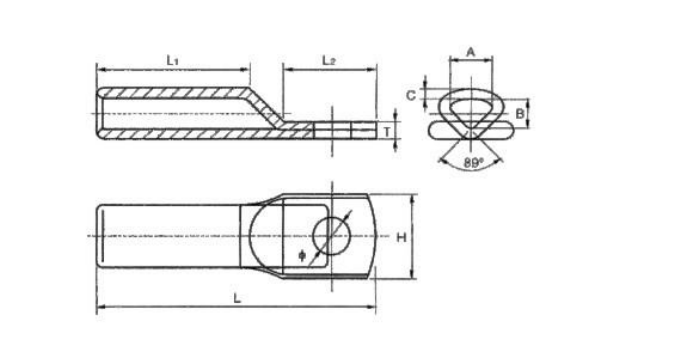

The ALS series fan-shaped aluminum terminal block (tube material) is a special shaped connection accessory designed for fan-shaped aluminum conductors. It adopts a tube material integrated molding process and precisely matches the shape of fan-shaped aluminum wires/cables with a unique fan-shaped inner hole structure, solving the pain point of loose contact between traditional circular terminals and fan-shaped conductors. It is widely used in medium and low voltage distribution, overhead transmission, new energy power stations and other scenarios, ensuring stable current transmission of aluminum conductors.
