5-10kW Wind&Solar Hybrid System
Key attributes
| Brand | Wone Store |
| Model NO. | 5-10kW Wind&Solar Hybrid System |
| Rated Output Rating | 10kW |
| Output Voltage | 400VAC士10% |
| Series | WPHB |
Product descriptions from the supplier

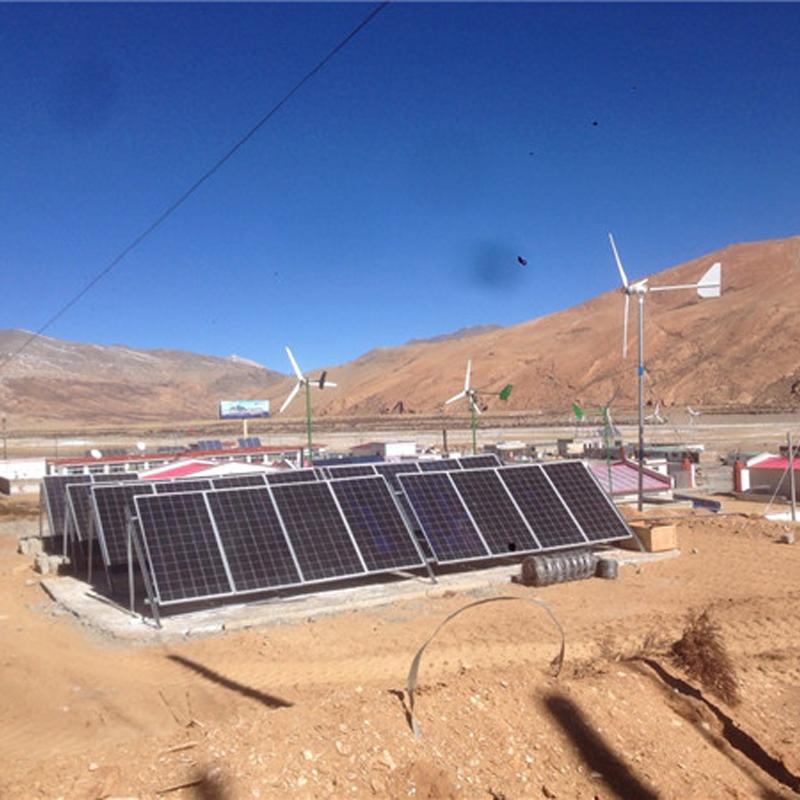

A wind-solar hybrid system effectively integrates wind and solar energy into a single power generation system. An off-grid wind-solar hybrid power system operates independently to provide electricity for specific areas or individual households. It mainly consists of a wind turbine, solar panels, a wind-solar hybrid charge controller and inverter, battery bank, and other accessories.
Within the renewable energy framework, solar and wind energy are two widely applied renewable resources. Compared to standalone photovoltaic or wind power generation, wind-solar hybrid generation significantly enhances the system's adaptability to weather variations, thereby improving its practical value. Utilizing renewable energy through wind-solar hybrid systems is a cost-effective and highly efficient approach for promoting energy infrastructure development in remote, off-grid, or electricity-deficient areas.
Introduction
10kW wind energy storage system, which combines wind turbine control, battery charge management and invert function in one system, can be used for both on-grid and off-grid systems.
Features
-
MPPT control for 10kW wind turbine
-
Both off-grid and on-grid feasible
-
Both grid and diesel engine can charge the battery
-
RS232/RS485/RJ45 monitoring connection modes optional
-
Can add inverter to be wind&solar hybrid system
Parameters
|
product number |
WPHBS48-5-5K |
WPHBS48-10-10K |
WPHBT48-10-10K |
|
Wind Turbine |
|||
|
Model |
FD6-5000 |
FD6-5000 |
FD6-5000 |
|
Configuration |
1S1P |
1S2P |
1S2P |
|
Rated output Voltage |
48V |
48V |
48V |
|
Photovoltaic |
|||
|
Model |
SP-580-V |
SP-580-V |
SP-580-V |
|
Configuration |
3S1P |
3S2P |
3S2P |
|
Rated output Voltage |
144V |
144V |
144V |
|
Controller |
|||
|
Model |
WWS50-48 |
WWS100-48 |
WWS100-48 |
|
Rated input Voltage |
48V |
48V |
48V |
|
Rated output Voltage |
48V |
48V |
48V |
|
Configuration |
1S1P |
1S1P |
1S1P |
|
Energy storage Battery |
|||
|
Model |
W4850 |
W4850 |
W4850 |
|
Rated Voltage |
48V |
48V |
48V |
|
Rated capacity |
4.8kWh |
9.6kWh |
9.6kWh |
|
Configuration |
1S1P |
1S2P |
1S2P |
|
Inverter |
|||
|
Model |
PW-5K |
PW-5K |
PX-10K |
|
Rated input Voltage |
48V |
48V |
48V |
|
Rated Power |
5kW |
5kW |
10kW |
|
Rated output Voltage |
Single-phaseAC220V 50/60Hz |
Single-phaseAC220V 50/60Hz |
Three-phaseAC380V 50/60Hz |
|
Configuration |
1S1P |
1S2P |
1S1P |
