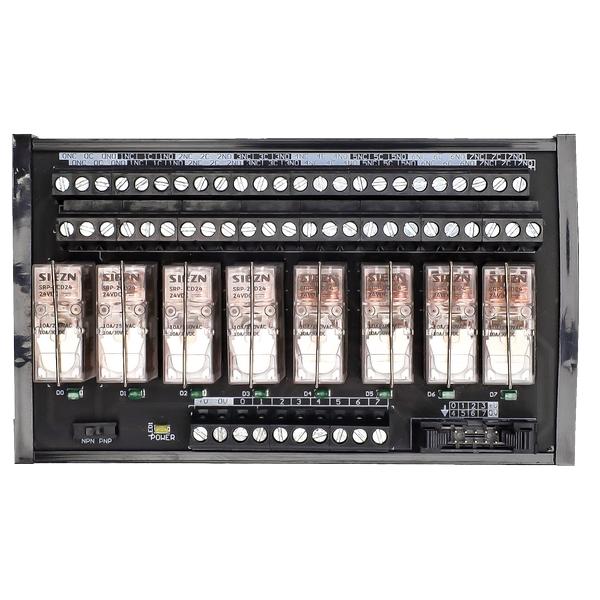

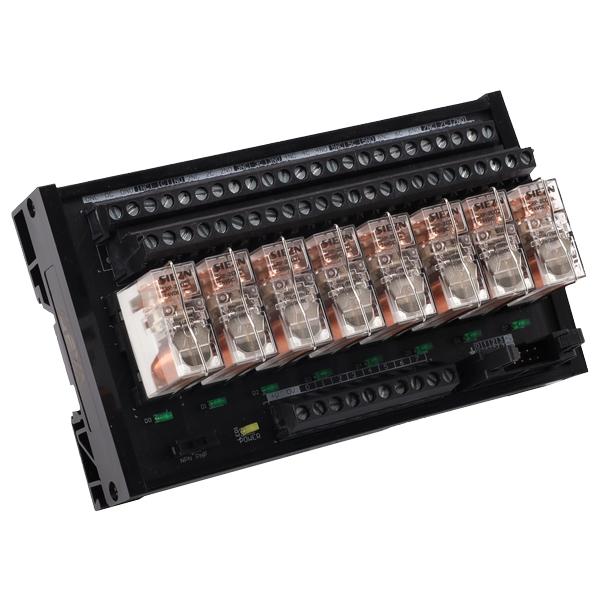

2NO2NC Omron Plug in Relay Module FY-2NG2R
Key attributes
| Brand | Switchgear parts |
| Model NO. | 2NO2NC Omron Plug in Relay Module FY-2NG2R |
| Rated voltage | 12V/24VDC/220VAC |
| Series | FY-2NG2R |
Product descriptions from the supplier
The FY-2NG2R series relay module adopts European terminal and spring type screw free terminal design, with input protection and multiple output protection types, which can effectively protect the safety of the circuit. At the same time, the FY-2NG2R series relay module adopts an NPW/PNP dual level compatibility design, which is suitable for CNC systems such as Fanuc, Mitsubishi, Siemens, as well as various industrial and agricultural equipment such as automation equipment, processing machinery welding equipment, etc. It is a relay module with high cost-effectiveness.
Features

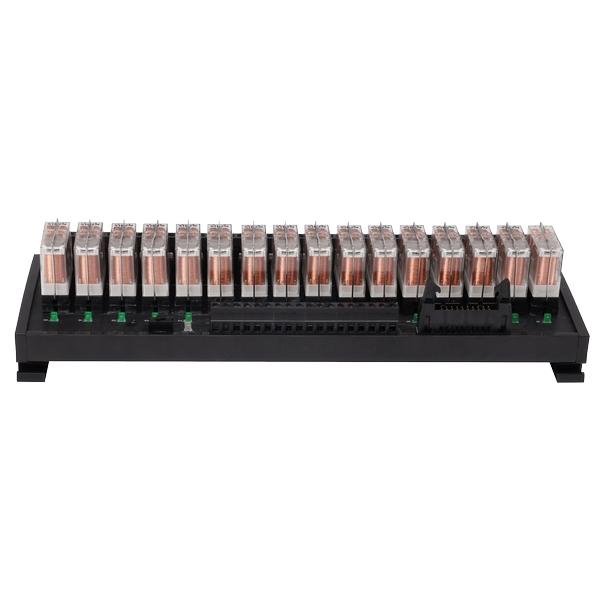

DIN Rail optional 1/2/4/8/16 channels relay interface modules
Sub-miniature intermediate power relay, approved TUV, UL, and RoHS compliant.*Switching current up to 10A at 250VAC or 30VDC
Input connections by screw terminal block.NPN& PNP in common use, AC&DC in common use
Relay status indicator LED, surge suppression protection, and overvoltage protection are provided for each relay channel
DIN Rail mountable for width TS15/28/35
| Input operating voltage | Rated DC±20% & AC±10% |
| Relay Mounting | Pluggable |
| Rated Load Current | 5A 250V AC/30V DC |
| Max Transient Load Current | 5A |
| Coil Power | approx.0.53W |
| Operate Time(at normal volt.) | ≤15ms |
| Release Time(at normal volt.) | ≤10ms |
| Input/Output Connections | Screw terminal block |
| Wire Range | 0.2～2.5mm² |
| Stripping Length | 6-7mm |
| DIN Rail Mountable | 15/28/35mm |
| Relay Qty | Dimension(mm) | N.W.(g) |
| 1 | 18*85*70 | 55 |
| 2 | 40*85*70 | 115 |
| 4 | 70*85*70 | 200 |
| 6 | 100*85*70 | 285 |
| 8 | 130*85*70 | 365 |
| 10 | 160*85*70 | 450 |
| 12 | 190*85*70 | 540 |
| 14 | 220*85*70 | 630 |
| 16 | 250*85*70 | 715 |
