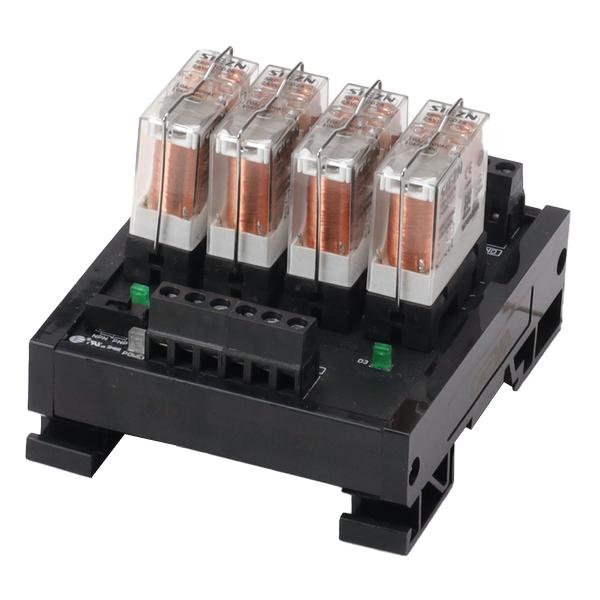

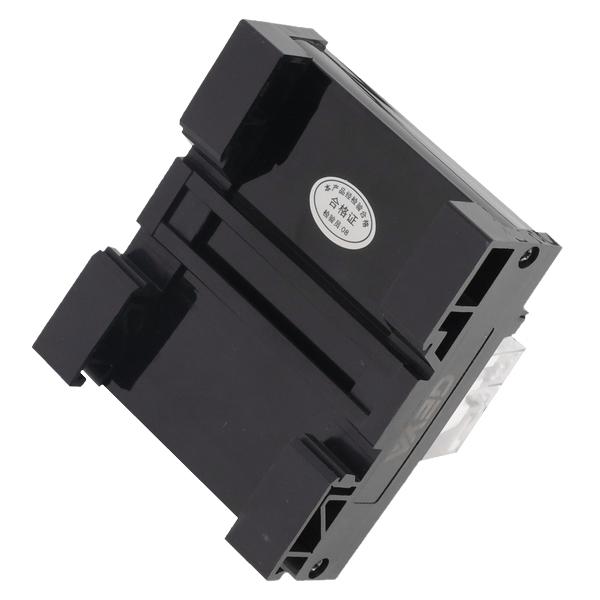

1NO1NC Omron Plug in Relay Module FY-NG2R
Key attributes
| Brand | Switchgear parts |
| Model NO. | 1NO1NC Omron Plug in Relay Module FY-NG2R |
| Rated voltage | 12V/24VDC/220VAC |
| Series | FY-NG2R |
Product descriptions from the supplier
The FY-NG2R series relay module adopts European terminal and spring type screw free terminal design, with input protection and multiple output protection types, which can effectively protect the safety of the circuit. At the same time, the FY-NG2R series relay module adopts an NPW/PNP dual stage compatible design, which is suitable for CNC systems such as Fanuc, Mitsubishi, Siemens, as well as various industrial and agricultural equipment such as automation equipment, processing machinery welding equipment, etc. It is a relay module with high cost-effectiveness
Relay Modules are designed for current amplification and isolation protection of output loads. Applicable to PLC, microprocessor systems and time relays, etc, amplifying the control current of outputs, to protect key control systems not being destroyed.
| Input operating voltage | Rated DC±20% & AC±10% |
| Relay Mounting | Pluggable |
| Rated Load Current | 10A 250V AC/30V DC |
| Max Transient Load Current | 10A |
| Coil Power | approx.0.53W |
| Operate Time(at normal volt.) | ≤15ms |
| Release Time(at normal volt.) | ≤10ms |
| Input/Output Connections | Screw terminal block |
| Wire Range | 0.2～2.5mm² |
| Stripping Length | 6-7mm |
| DIN Rail Mountable | 15/28/35mm |
| Relay Qty | Dimension(mm) | N.W.(g) |
| 1 | 18*85*70 | 50 |
| 2 | 40*85*70 | 105 |
| 4 | 70*85*70 | 200 |
| 6 | 100*85*70 | 260 |
| 8 | 130*85*70 | 340 |
| 10 | 160*85*70 | 410 |
| 12 | 190*85*70 | 480 |
| 14 | 220*85*70 | 560 |
| 16 | 250*85*70 | 595 |
