| Brand | Xinyouxiang |
| Model NO. | 1kV cold shrink terminal |
| Rated voltage | 0.6/1kV |
| number of core | 5-core |
| Series | LS |

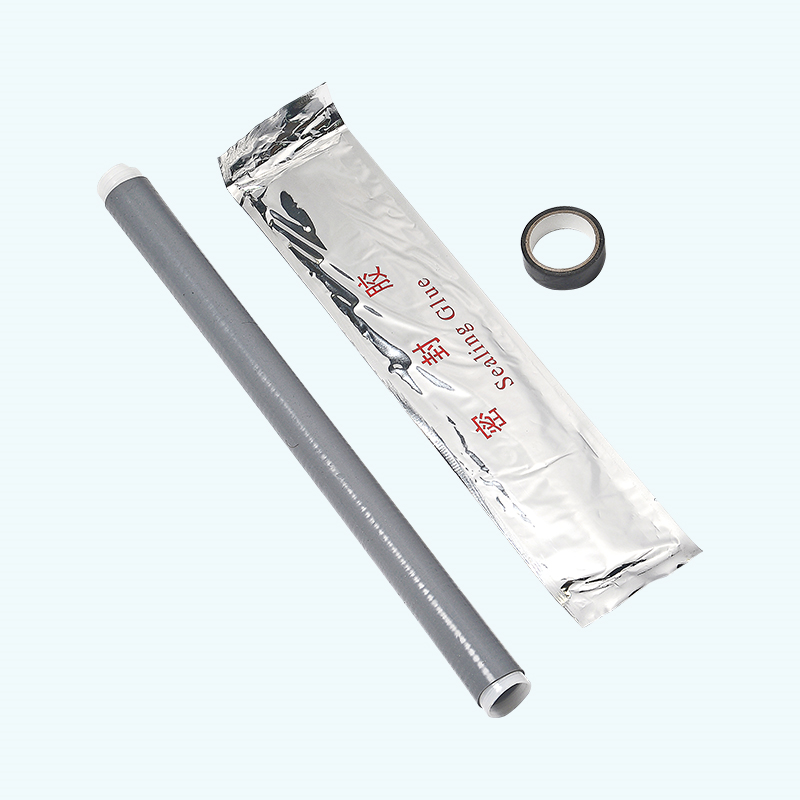

The 1kV cold shrink terminal series products are suitable for 0.6/1kV single core, two core, three core, four core, five core polyvinyl chloride, cross-linked polyethylene, and rubber power cables. They have good electrical and mechanical properties and can be used for a long time in various harsh environmental conditions. It has the advantages of light weight and easy installation. Widely used in various fields such as electricity, petroleum, chemical industry, metallurgy, railway ports, and construction.
Serial No |
Product name |
Product model |
Applicable of cable cross - section mm² |
1 |
0.6/1kV cold shrinkable 1 core joint kit |
LS - 1/1.0 |
10 - 16 |
2 |
LS - 1/1.1 |
25 - 50 |
|
3 |
LS - 1/1.2 |
70 - 120 |
|
4 |
LS - 1/1.3 |
150 - 240 |
|
5 |
LS - 1/1.4 |
300 - 400 |
|
6 |
0.6/1kV cold shrinkable 2 cores joint kit |
LS - 1/2.0 |
10 - 16 |
7 |
LS - 1/2.1 |
25 - 50 |
|
8 |
LS - 1/2.2 |
70 - 120 |
|
9 |
LS - 1/2.3 |
150 - 240 |
|
10 |
LS - 1/2.4 |
300 - 400 |
|
11 |
0.6/1kV cold shrinkable 3 cores joint kit |
LS - 1/3.0 |
10 - 16 |
12 |
LS - 1/3.1 |
25 - 50 |
|
13 |
LS - 1/3.2 |
70 - 120 |
|
14 |
LS - 1/3.3 |
150 - 240 |
|
15 |
LS - 1/3.4 |
300 - 400 |
|
16 |
0.6/1kV cold shrinkable 4 cores joint kit |
LS - 1/4.0 |
10 - 16 |
17 |
LS - 1/4.1 |
25 - 50 |
|
18 |
LS - 1/4.2 |
70 - 120 |
|
19 |
LS - 1/4.3 |
150 - 240 |
|
20 |
LS - 1/4.4 |
300 - 400 |
|
21 |
0.6/1kV cold shrinkable 5 cores joint kit |
LS - 1/5.0 |
10 - 16 |
22 |
LS - 1/5.1 |
25 - 50 |
|
23 |
LS - 1/5.2 |
70 - 120 |
|
24 |
LS - 1/5.3 |
150 - 240 |
|
25 |
LS - 1/5.4 |
300 - 400 |
