Wiring mode of the 10(6)kV power distribution system(Double circuit radial type)

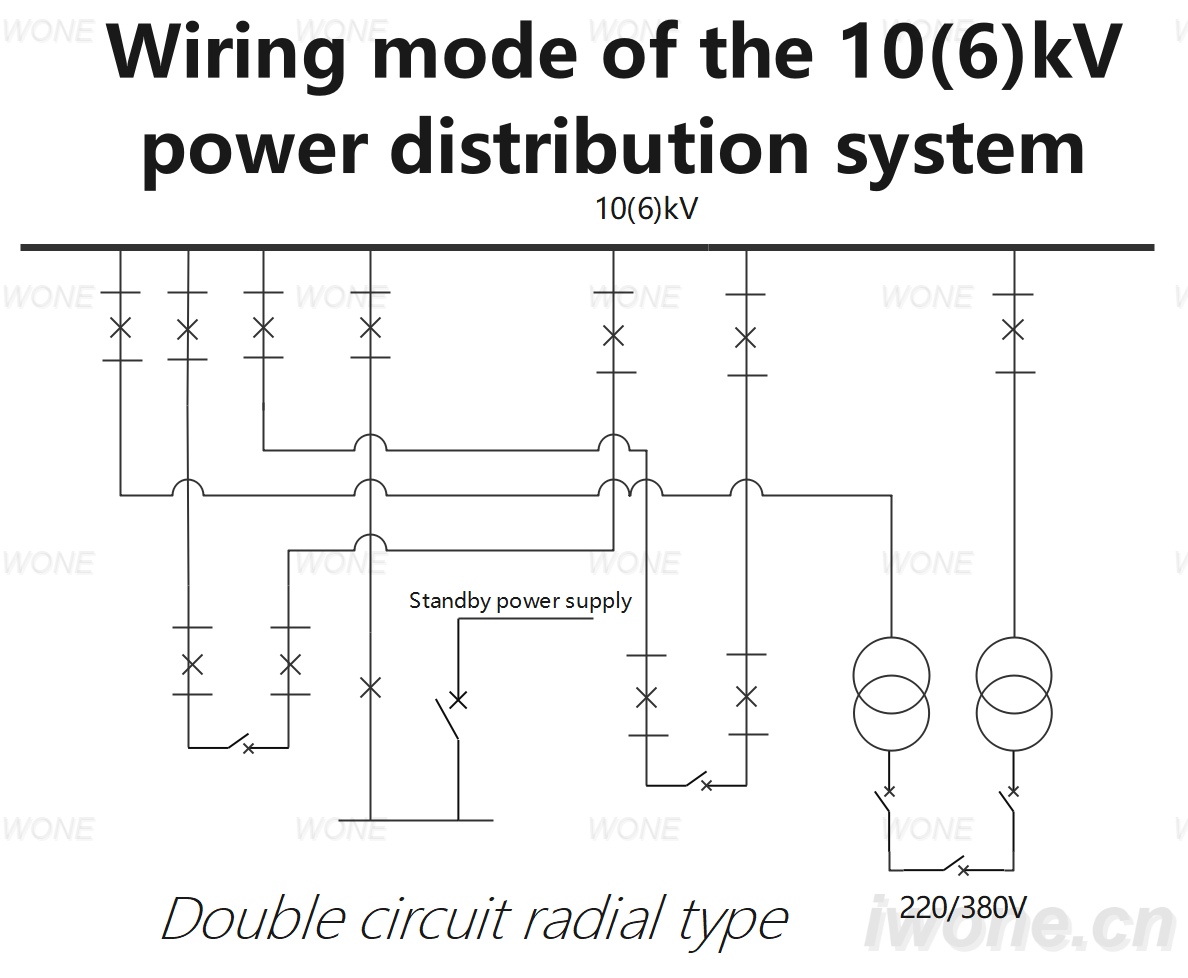

A technical diagram illustrating the wiring mode of 10(6)kV power distribution systems—double circuit radial type, detailing the dual parallel radial circuit structure, connection between the power source and individual load branches via two circuits.
