On what does the capacitance of a capacitor depend?

What Does Capacitance Depend On?

The capacitance (C) of a capacitor depends on several main factors:

Plate Area (A):

The capacitance increases with the area of the plates. Larger plates can hold more charge.

Mathematically, this is expressed as C∝A.

Plate Separation (d):

The capacitance decreases as the distance between the plates increases. A smaller distance allows for a stronger electric field, enabling the storage of more charge.

Mathematically, this is expressed as C∝ 1/d .

Dielectric Constant (ε):

The dielectric constant (also known as relative permittivity or dielectric constant) of the material between the plates affects the capacitance. A higher dielectric constant results in a larger capacitance. The dielectric constant is a dimensionless number that indicates the material's ability to store electrical energy relative to a vacuum.Mathematically, this is expressed as C∝ε.

Combining these factors, the capacitance of a parallel plate capacitor can be expressed by the formula:C=εrε0A/d

where:

•
    C is the capacitance, measured in farads (F).

•
    εr is the relative dielectric constant of the material.

•
    ε0 is the permittivity of free space, approximately    8.854   ×   1   0   − 12     F/m   8.854×10−12F/m.

• A is the area of the plates, measured in square meters (m²).

•
    d is the separation between the plates, measured in meters (m).

Example

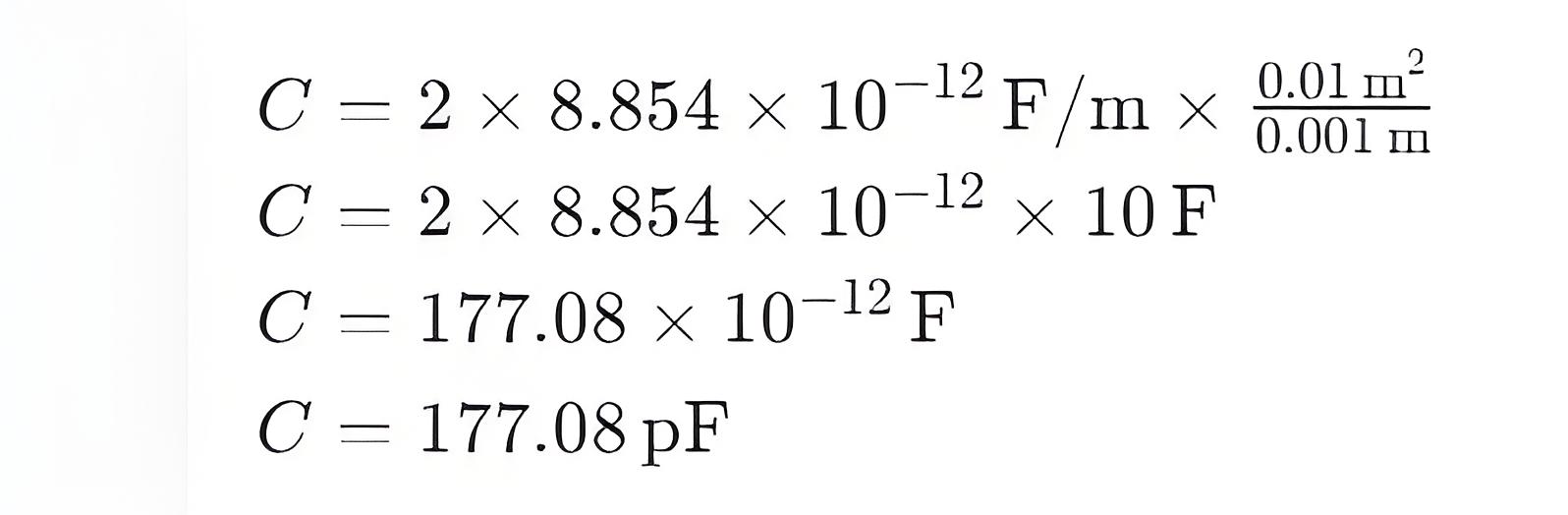

Consider a parallel plate capacitor with a plate area of 0.01   m 2 0.01m2, a plate separation of 0.001   m 0.001m, and a dielectric material with a relative dielectric constant of 2. The capacitance of this capacitor can be calculated as follows:

Therefore, the capacitance of this capacitor is 177.08 picofarads (pF).
