Adaptability Solution for High-Voltage Cables in Extreme Environments

1. Application Scenarios
   This solution is primarily designed for high-voltage power transmission needs in extreme climate regions such as deserts and polar areas. It is suitable for:

• Photovoltaic power stations in desert regions

• Power supply systems for polar research stations

• Transmission lines in plateau and desert regions

• Other harsh environments with significant temperature variations and strong sandstorms

II. Core Technological Innovations

1. Application of Specialized Materials
   Silicone rubber insulation material is employed, with a temperature resistance range of -60°C to 250°C, ensuring stable insulation performance under extreme high and low temperatures. The outer sheath is reinforced with nano-grade titanium dioxide, providing the highest level of UV resistance (UV5) to effectively withstand intense ultraviolet radiation.

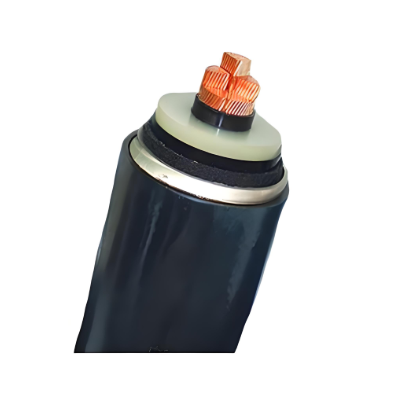

2. Reinforced Structural Design
   The cable is internally filled with high-strength glass fiber ropes, increasing overall tensile strength by 30% and enabling it to withstand mechanical stress caused by strong winds. The outer sheath thickness is increased to 4.5mm, significantly enhancing sand abrasion resistance and ensuring long-term stable operation in sandstorm environments.

III. Environmental Adaptability Testing
This solution has been verified in accordance with the MIL-STD-810G environmental testing standard, including:

• Sandstorm simulation test: Continuous operation for 8 hours under wind speeds of 30m/s

• High and low temperature cycle test: Alternating extreme temperatures from -60°C to 85°C

• UV aging test: Simulated 10-year accelerated UV radiation aging

IV. Practical Application Results
After implementing this solution in a photovoltaic power station in the Middle East, the cables have operated continuously for three years at high temperatures of 55°C without any failure records. Testing and evaluation indicate an expected cable lifespan of 25 years, representing a more than 60% increase compared to conventional cables.

V. Comprehensive Advantages

• Enhanced Reliability: Specialized materials and structural design ensure stable power supply in extreme environments.

• Reduced Maintenance Costs: Significantly decreases replacement and maintenance needs caused by environmental factors.

• Extended Lifespan: Expected service life of 25 years, with notably improved return on investment.

• Excellent Safety Performance: Certified through rigorous environmental tests, meeting the highest industry safety standards.
